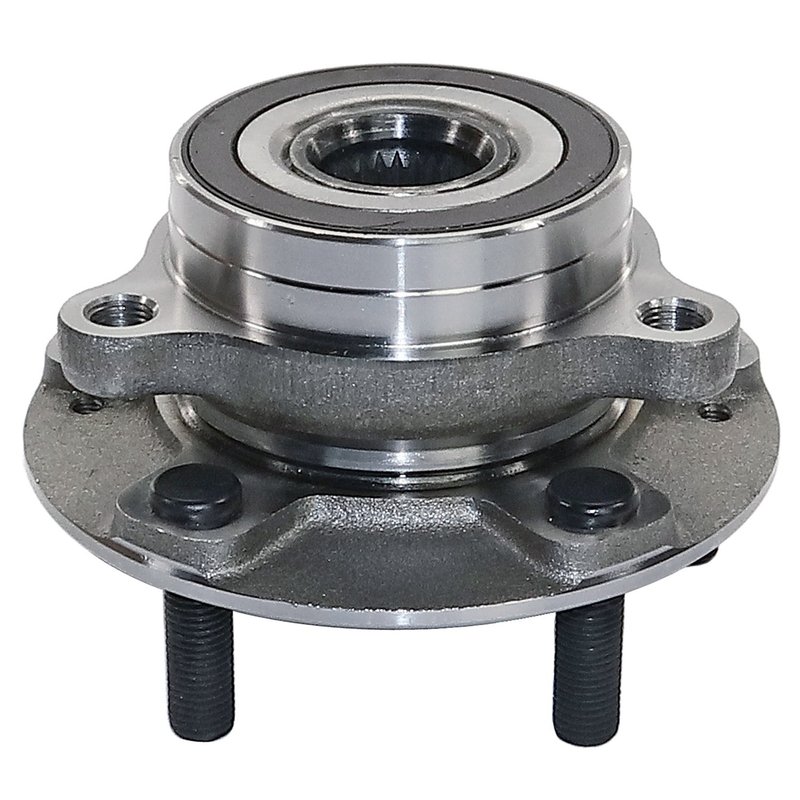

DuraGo 295-13420 Wheel Bearing and Hub Assembly - Front or Rear
| Brand | DuraGo 295-13420 |
|---|---|
| Position | Front and Rear |
| Spline Quantity | 27 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.64 |
| Wheel Pilot Diameter | 67 |
| Brake Pilot Diameter | 2.72 |
| Brake Pilot Diameter | 69 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.23 |
| Hub Pilot Diameter | 82 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Flange Offset | 1.52 |
| Flange Offset | 38.5 |
| Flange Diameter | 137.7 |
| Flange Diameter | 5.42 |
| Bolt Circle Diameter | 114.3 |
| Bolt Circle Diameter | 4.5 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.25 |
| Fits | Hyundai and Kia · 30 vehicles |
OE-style replacement. Wheel bearing and hub assembly for straightforward service.
ABS encoder included. Integrated sensing helps maintain proper wheel-speed signal.
100% tested. Built to meet industry-leading quality standards.
DuraGo 295-13420 Wheel Bearing and Hub Assembly
DuraGo 295-13420 is a driven wheel bearing and hub assembly built for rear and front applications on select Hyundai and Kia vehicles. It combines the hub, bearing, and ABS encoder function in one service part to help restore smooth wheel rotation, reduce friction, and support consistent braking system signal output.
Key Features
- Driven wheel bearing and hub assembly for select front and rear applications
- ABS encoder type for vehicles equipped with anti-lock braking systems
- 27-spline hub design
- 5 wheel studs with M12 x 1.5 wheel stud size
- Triangle flange shape with 3 flange bolt holes
- Bolt circle diameter: 114.3 mm / 4.5 in.
- Hub pilot diameter: 82 mm / 3.23 in.
- Wheel pilot diameter: 67 mm / 2.64 in.
- Brake pilot diameter: 69 mm / 2.72 in.
- Flange offset: 38.5 mm / 1.52 in.
- Flange diameter: 137.7 mm / 5.42 in.
Detailed Description
This DuraGo hub assembly is engineered for direct replacement service on select Hyundai Kona rear, Hyundai Ioniq front, Hyundai Veloster front, Hyundai Veloster N front, Hyundai Elantra front, Hyundai Elantra GT front, Kia Niro front, and Kia Seltos rear applications. It is a driven hub assembly with an encoder-style ABS interface, making it a practical choice when servicing wheel-end noise, bearing wear, or ABS-related wheel speed signal concerns. DuraGo assembles each unit with quality components and tests every hub assembly to meet its manufacturing standards. This part number is 295-13420.
What It Helps Address
- Wheel bearing noise from a worn hub assembly
- Excessive wheel-end play or looseness
- ABS warning light concerns related to wheel speed signal issues
- Rough wheel rotation caused by bearing wear
- Vibration or instability traced to hub wear
Installation Notes and Tips
Verify axle type, ABS encoder style, bolt pattern, and hub pilot dimensions before installation. Confirm fitment by position and model year: Fits 2018-2023 Hyundai Kona, rear; Fits 2017-2022 Hyundai Ioniq, front; Fits 2019-2021 Hyundai Veloster, front; Fits 2017-2021 Kia Niro, front; Fits 2021 Kia Seltos, rear; Fits 2017-2020 Hyundai Elantra, front; Fits 2017-2020 Hyundai Elantra GT, front; Fits 2019 Hyundai Veloster N, front. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Quality Assurance
DuraGo manufactures this hub assembly to ISO/TS 16949:2002 quality standards and 100% tests each unit before release. The brand has more than 45 years of aftermarket manufacturing experience, and part number 295-13420 is built to meet those production and testing requirements.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Hyundai | Kona | AWD | Rear | — |
| 2022 | Hyundai | Ioniq | — | Front | — |
| 2022 | Hyundai | Kona | AWD | Rear | — |
| 2021 | Hyundai | Ioniq | — | Front | — |
| 2021 | Hyundai | Kona | AWD | Rear | — |
| 2021 | Hyundai | Veloster | — | Front | — |
| 2021 | Kia | Niro | — | Front | — |
| 2021 | Kia | Seltos | — | Rear | — |
| 2020 | Hyundai | Elantra | — | Front | — |
| 2020 | Hyundai | Elantra GT | — | Front | — |
| 2020 | Hyundai | Ioniq | — | Front | — |
| 2020 | Hyundai | Kona | AWD | Rear | — |
| 2020 | Hyundai | Veloster | — | Front | — |
| 2020 | Kia | Niro | — | Front | — |
| 2019 | Hyundai | Elantra | — | Front | — |
| 2019 | Hyundai | Elantra GT | — | Front | — |
| 2019 | Hyundai | Ioniq | — | Front | — |
| 2019 | Hyundai | Kona | AWD | Rear | — |
| 2019 | Hyundai | Veloster | — | Front | — |
| 2019 | Hyundai | Veloster N | — | Front | — |
| 2019 | Kia | Niro | — | Front | — |
| 2018 | Hyundai | Elantra | — | Front | — |
| 2018 | Hyundai | Elantra GT | — | Front | — |
| 2018 | Hyundai | Ioniq | — | Front | — |
| 2018 | Hyundai | Kona | AWD | Rear | — |
| 2018 | Kia | Niro | — | Front | — |
| 2017 | Hyundai | Elantra | — | Front | — |
| 2017 | Hyundai | Elantra GT | — | Front | — |
| 2017 | Hyundai | Ioniq | — | Front | — |
| 2017 | Kia | Niro | — | Front | — |
