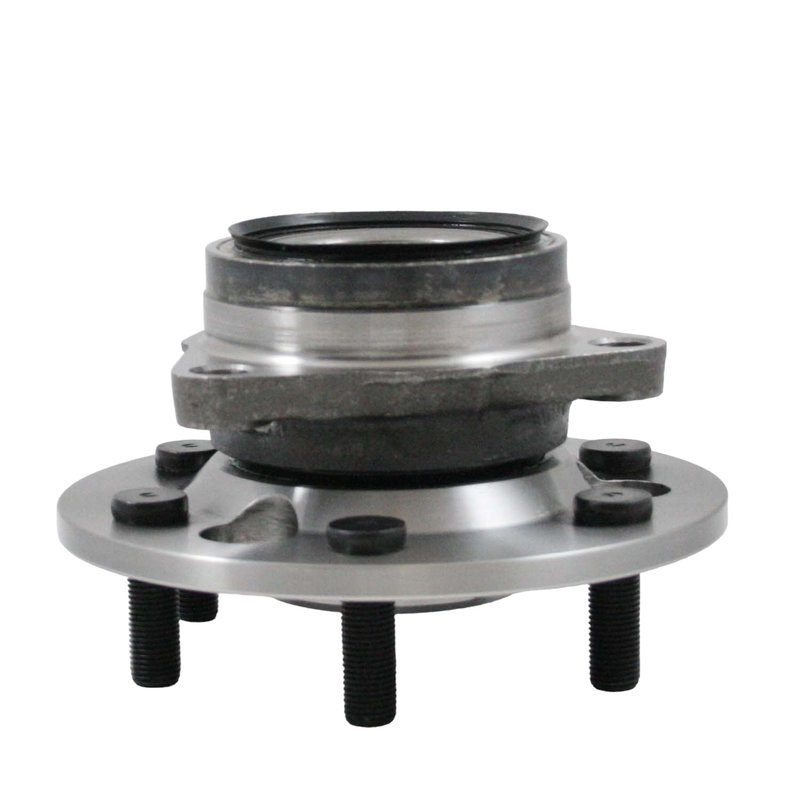

DuraGo 295-15002 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-15002 |
|---|---|
| Position | Front |
| Spline Quantity | 33 |
| 143 | 139.7 |
| 143 | 5.5 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M14 x 1.5 |
| Wheel Pilot Diameter | 3.06 |
| Wheel Pilot Diameter | 77.6 |
| Brake Pilot Diameter | 3.08 |
| Brake Pilot Diameter | 78.3 |
| Wheel Stud Quantity | 6 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.91 |
| Hub Pilot Diameter | 99.3 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | No |
| Flange Bolt Hole Diameter | 0.58 |
| Flange Bolt Hole Diameter | 14.7 |
| Flange Offset | 1.99 |
| Flange Offset | 50.6 |
| Flange Diameter | 181.8 |
| Flange Diameter | 7.16 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Fits | GMC · 4 vehicles |
Driven hub assembly. Helps reduce friction and improve fuel economy.
Wheel studs included. Ready for a more complete hub replacement.
ISO/TS 16949:2002 quality. Built to meet industry-leading manufacturing standards.
Cross-references MOOG Hub Assemblies 515002, SKF BR930035 and 7300068 for the same application. See all 8.
DuraGo 295-15002 Wheel Bearing Hub Assembly
DuraGo 295-15002 is a driven wheel bearing and hub assembly built for the front of select GMC K1500 trucks. It is engineered to reduce friction at the wheel end and support smoother operation, with fitment for 1988-1991 GMC K1500 front applications with light duty suspension.
Key Features
- Driven wheel bearing and hub assembly for front axle service
- Fits 1988-1991 GMC K1500, front, light duty suspension
- 33-spline design with 6 wheel studs included
- Wheel stud size: M14 x 1.5
- Triangle flange shape with 3 flange bolt holes
- Hub pilot diameter: 99.3 mm; wheel pilot diameter: 77.6 mm
- Brake pilot diameter: 78.3 mm; flange diameter: 181.8 mm
- Cross-references SKF BR930035 for the same application
Detailed Description
This DuraGo wheel bearing and hub assembly, part number 295-15002, is designed for front-wheel service on 1988-1991 GMC K1500 trucks with light duty suspension. The driven hub design, 33-spline configuration, and precise pilot diameters help maintain proper wheel-end alignment and consistent fitment. DuraGo builds its hub assemblies with quality components and tests each unit to meet its manufacturing standards. The assembly is manufactured to ISO/TS 16949:2002 quality standards, and it cross-references OE and aftermarket numbers including MOOG 515002 and SKF BR930035.
What It Helps Solve
- Wheel-end noise from a worn hub assembly
- Excess friction at the front hub
- Loose or inconsistent wheel-end feel
- Fitment issues caused by a damaged or out-of-spec hub
- Reduced driveline efficiency from a failing driven hub
Installation Notes and Tips
Verify front axle configuration, spline count, stud size, and pilot diameters before installation. This part is for driven front applications and does not use ABS. Confirm the vehicle is a 1988-1991 GMC K1500 with light duty suspension before ordering. Part number 295-15002 should be matched to the existing hub and axle specifications to ensure correct installation.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit before release. The product is built to meet ISO/TS 16949:2002 manufacturing requirements.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1991 | GMC | K1500 | Front | Light Duty Suspension |
| 1990 | GMC | K1500 | Front | Light Duty Suspension |
| 1989 | GMC | K1500 | Front | Light Duty Suspension |
| 1988 | GMC | K1500 | Front | Light Duty Suspension |
