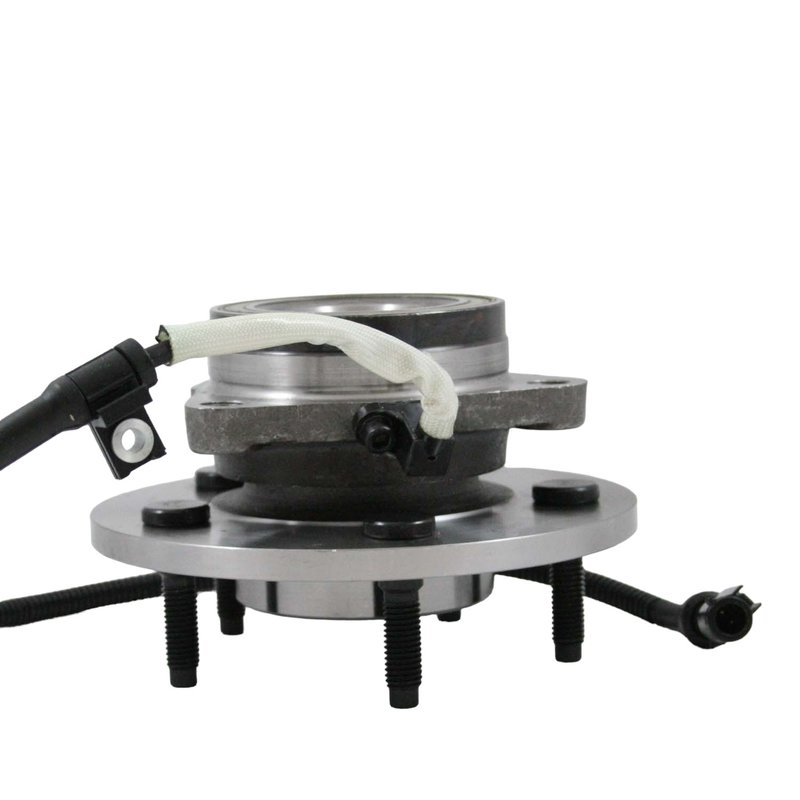

DuraGo 295-15004 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-15004 |
|---|---|
| Position | Front |
| Spline Quantity | 33 |
| 143 | 135 |
| 143 | 5.31 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.75 |
| Wheel Pilot Diameter | 3.41 |
| Wheel Pilot Diameter | 86.7 |
| Brake Pilot Diameter | 3.63 |
| Brake Pilot Diameter | 92.3 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.91 |
| Hub Pilot Diameter | 99.3 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 1.96 |
| Flange Offset | 49.7 |
| Flange Diameter | 181.2 |
| Flange Diameter | 7.13 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M14 x 1.5 |
| Fits | Ford and Lincoln · 7 vehicles |
OE-style hub assembly. Built as a driven wheel bearing and hub assembly for direct replacement.
ABS sensor included. Integrated sensor setup helps support anti-lock braking system operation.
Wheel studs included. Ready with studs already installed for a cleaner assembly process.
Cross-references MOOG Hub Assemblies 515004, SKF BR930208 and Timken SP550201 for the same application. See all 7.
DuraGo 295-15004 Wheel Bearing Hub Assembly
The DuraGo 295-15004 wheel bearing and hub assembly is built for front-end driveline service on select Ford and Lincoln trucks and SUVs. It combines the hub, bearing, and ABS-related components into one replacement unit to help restore smooth wheel rotation and consistent sensor operation.
Compatible With 1997-2000 Ford Expedition front, 1998-2000 Lincoln Navigator front, including 2000 Ford Expedition front with M12 wheel bolts and 2000 Lincoln Navigator front with M12 wheel bolts.
Key Features
- Driven front hub assembly for select 4x4 applications
- 33-spline design
- 5 wheel studs with M12 x 1.75 wheel stud size
- ABS sensor type with sensor cord included and 1 connector
- Triangle flange shape with 3 flange bolt holes
- Hub pilot diameter: 99.3 mm; wheel pilot diameter: 86.7 mm
- Brake pilot diameter: 92.3 mm; flange diameter: 181.2 mm
- Flange offset: 49.7 mm; flange bolt size: M14 x 1.5
Detailed Description
DuraGo 295-15004 is a premium wheel bearing and hub assembly engineered for front axle service on the Ford Expedition and Lincoln Navigator listed above. It is manufactured to industry-leading quality standards, tested for fit and function, and built with quality components to support reduced friction at the wheel end. This part cross-references SKF BR930208 and Timken SP550201 for the same application.
Common Problems This Part Can Address
- Front wheel bearing noise or growling
- Excessive wheel play or looseness at the hub
- ABS warning light caused by hub sensor issues
- Uneven wheel-end rotation or drag
- Vibration or instability from a worn front hub assembly
Installation Notes and Tips
Verify the vehicle uses the listed front application before installation. Confirm wheel bolt style, spline count, and ABS connector match the original hub assembly on your Ford Expedition or Lincoln Navigator. Inspect the mating surfaces, axle splines, and sensor wiring during replacement to help ensure proper seating and signal operation.
Quality Assurance
DuraGo manufactures this hub assembly to ISO/TS 16949:2002 quality standards and 100% tests each unit before release. The brand has over 45 years of aftermarket manufacturing experience, and the 295-15004 is built to meet the demands of front hub replacement service.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2000 | Ford | Expedition | 4WD | Front | M12 Wheel Bolts |
| 2000 | Lincoln | Navigator | 4WD | Front | M12 Wheel Bolts |
| 1999 | Ford | Expedition | — | Front | — |
| 1999 | Lincoln | Navigator | — | Front | — |
| 1998 | Ford | Expedition | — | Front | — |
| 1998 | Lincoln | Navigator | — | Front | — |
| 1997 | Ford | Expedition | — | Front | — |
| No rows match your filter. | |||||
