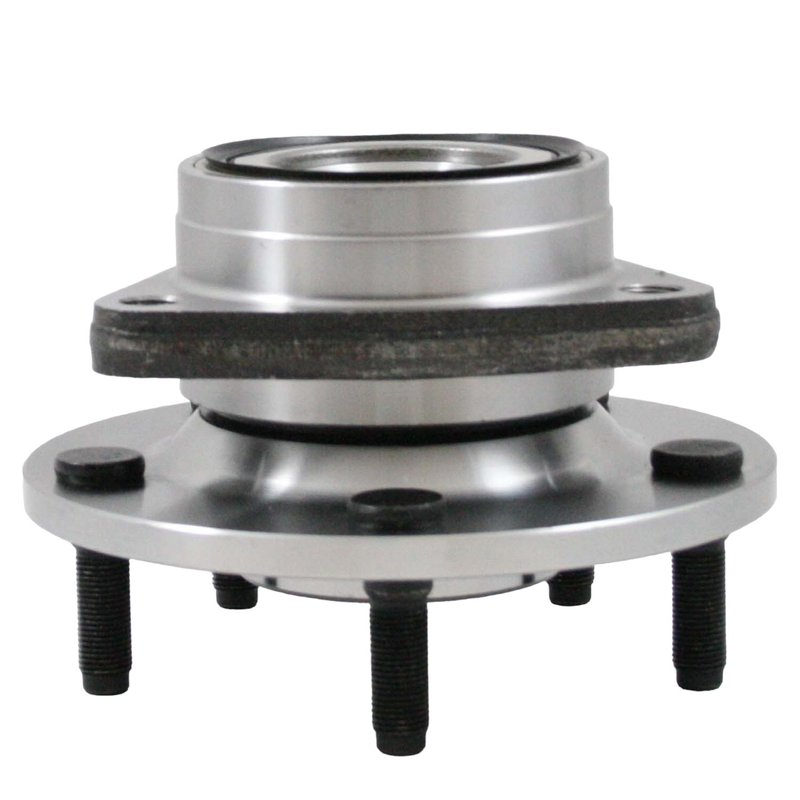

DuraGo 295-15006 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-15006 |
|---|---|
| Position | Front |
| Spline Quantity | 33 |
| 143 | 139.7 |
| 143 | 5.5 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | 1/2-20 |
| Wheel Pilot Diameter | 3.06 |
| Wheel Pilot Diameter | 77.6 |
| Brake Pilot Diameter | 3.08 |
| Brake Pilot Diameter | 78.3 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.85 |
| Hub Pilot Diameter | 97.7 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | No |
| Flange Offset | 2 |
| Flange Offset | 50.7 |
| Flange Diameter | 172.2 |
| Flange Diameter | 6.78 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M14 x 1.5 |
| Fits | Dodge · 6 vehicles |
OE-style hub assembly. Built with premium components and 100% tested for consistent performance.
Driven design. Helps reduce friction and improve fuel economy.
Wheel studs included. Ready for a more complete hub assembly replacement.
Cross-references MOOG Hub Assemblies 515006, SKF BR930256 and 7250011 for the same application. See all 8.
DuraGo 295-15006 Front Hub Assembly
The DuraGo 295-15006 wheel bearing and hub assembly is built for front applications on 1994-1999 Dodge Ram 1500 models. It is a driven hub assembly with 5 wheel studs, 1/2-20 wheel stud size, and a 33-spline design for the specified fitment.
Key Features
- Fits 1994-1999 Dodge Ram 1500, front
- Driven wheel bearing and hub assembly
- 33 spline quantity
- 5 wheel studs with 1/2-20 wheel stud size
- Triangle flange shape with 3 flange bolt holes
- Flange bolt size: M14 x 1.5
- Wheel pilot diameter: 3.06 in. (77.6 mm)
- Brake pilot diameter: 3.08 in. (78.3 mm)
- Hub pilot diameter: 3.85 in. (97.7 mm)
- Flange diameter: 6.78 in. (172.2 mm)
- Flange offset: 2 in. (50.7 mm)
- ABS sensor provision: No
Detailed Description
DuraGo 295-15006 is a front wheel bearing and hub assembly for 1994-1999 Dodge Ram 1500 trucks. It is engineered as a driven hub assembly and built with quality components, then tested to meet DuraGo’s manufacturing standards. This part cross-references MOOG 515006 and SKF BR930256 for the same application. If you are replacing a worn front hub on a Dodge Ram 1500, this part number 295-15006 provides the fitment and dimensional details needed for a direct replacement search.
Common Problems This Part Can Address
- Front wheel bearing noise or growling
- Excessive hub play or looseness
- Uneven wheel rotation caused by hub wear
- Vibration from a worn front hub assembly
- Loss of proper wheel support at the front axle
Installation Notes and Tips
Verify front fitment by matching the vehicle year, model, and driven hub configuration before installation. Confirm spline count, flange bolt pattern, wheel stud size, and pilot diameters against the original part. On 1994-1999 Dodge Ram 1500 applications, inspect the mating surfaces, axle interface, and surrounding brake components for wear before installing DuraGo 295-15006.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that each unit is 100% tested before release. The brand also notes compliance with ISO/TS 16949:2002 manufacturing standards.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Dodge | Ram 1500 | 4WD | Front | — |
| 1998 | Dodge | Ram 1500 | 4WD | Front | — |
| 1997 | Dodge | Ram 1500 | 4WD | Front | — |
| 1996 | Dodge | Ram 1500 | 4WD | Front | — |
| 1995 | Dodge | Ram 1500 | 4WD | Front | — |
| 1994 | Dodge | Ram 1500 | 4WD | Front | — |
