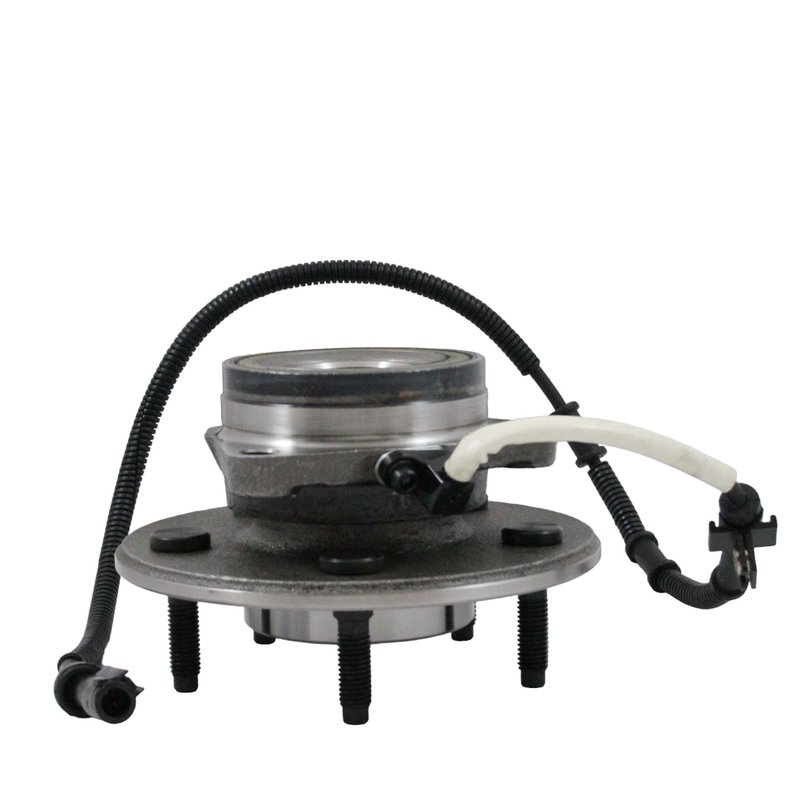

DuraGo 295-15010 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-15010 |
|---|---|
| Position | Front |
| Spline Quantity | 33 |
| 143 | 135 |
| 143 | 5.31 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.75 |
| Wheel Pilot Diameter | 3.41 |
| Wheel Pilot Diameter | 86.7 |
| Brake Pilot Diameter | 3.54 |
| Brake Pilot Diameter | 89.9 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.91 |
| Hub Pilot Diameter | 99.3 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 1.94 |
| Flange Offset | 49.2 |
| Flange Diameter | 182 |
| Flange Diameter | 7.17 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M14 x 1.5 |
| Fits | Ford · 4 vehicles |
OE-style hub assembly. Direct-fit replacement for a worn wheel bearing and hub assembly.
ABS sensor included. Built with sensor-based anti-lock braking system support.
Wheel studs included. Ready for a complete hub service with studs installed.
Cross-references QuickSteer 515010, SKF BR930318 and Timken SP550200 for the same application. See all 8.
DuraGo Wheel Bearing and Hub Assembly
The DuraGo 295-15010 wheel bearing and hub assembly is a driven front hub assembly for select 1997-2000 Ford F-150 applications. It is built with quality components, 5 wheel studs, and integrated ABS sensor provisions to support proper wheel-end operation on the front axle.
Key Features
- Driven front wheel bearing and hub assembly
- Fits 1997-2000 Ford F-150, front
- 33 spline design
- 5 wheel studs with M12 x 1.75 wheel stud size
- ABS sensor type hub with sensor cord included
- Triangle flange shape with 3 flange bolt holes
- Hub pilot diameter: 99.3 mm
- Wheel pilot diameter: 86.7 mm
- Brake pilot diameter: 89.9 mm
- Flange diameter: 182 mm
- Flange offset: 49.2 mm
Detailed Description
DuraGo 295-15010 is a front wheel bearing and hub assembly engineered for 1997-2000 Ford F-150 trucks with a driven hub configuration. This assembly uses a 33 spline design, 5-stud wheel mounting, and an ABS sensor setup with one connector and sensor cord included. The hub is specified with a 99.3 mm hub pilot diameter, 86.7 mm wheel pilot diameter, 89.9 mm brake pilot diameter, and a 182 mm flange diameter for accurate wheel-end replacement. This part cross-references SKF BR930318 and Timken SP550200 for the same application.
What It Helps Solve
- Wheel-end noise from a worn hub or bearing
- Excessive play or looseness at the front wheel
- ABS warning light concerns related to hub sensor function
- Uneven wheel rotation caused by hub wear
- Reduced driveline efficiency from a deteriorated front hub assembly
Installation Notes and Tips
Verify the vehicle’s front hub configuration, spline count, and ABS sensor connection before installation. Confirm wheel stud size, flange bolt pattern, and pilot diameters against the original part to ensure proper alignment on the 1997-2000 Ford F-150. Always inspect related suspension and brake components during hub replacement.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit before release. The part is produced to meet ISO/TS 16949:2002 quality requirements and reflects DuraGo’s long-standing aftermarket manufacturing experience.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2000 | Ford | F-150 | 4WD | Front | 5 Stud; M12 Wheel Bolts |
| 1999 | Ford | F-150 | 4WD | Front | 5 Stud; M12 Wheel Bolts |
| 1998 | Ford | F-150 | 4WD | Front | 5 Stud; M12 Wheel Bolts |
| 1997 | Ford | F-150 | 4WD | Front | 5 Stud; M12 Wheel Bolts |
