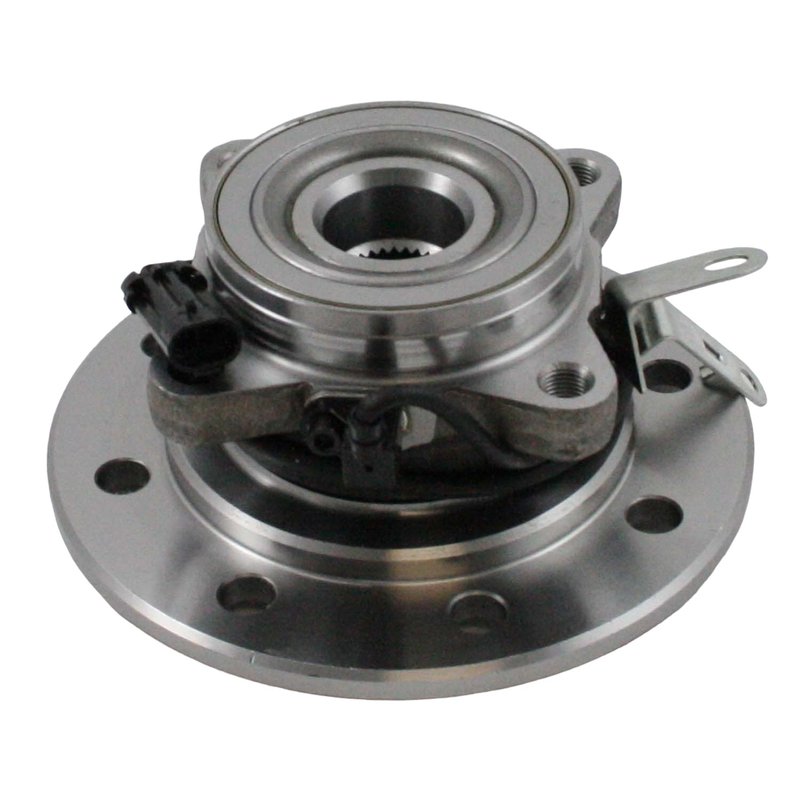

DuraGo 295-15016 Wheel Bearing and Hub Assembly - Front Right

Overview of DuraGo 295-15016 Wheel Bearing and Hub Assembly

The DuraGo 295-15016 wheel bearing and hub assembly is engineered for reliable performance in Chevrolet and GMC K2500 and K2500 Suburban models. Designed as a driven hub assembly, it integrates an ABS sensor to maintain proper anti-lock braking system function.

• Compatible with Chevrolet K2500 and GMC K2500 Suburban
• Driven type wheel bearing and hub assembly with ABS sensor
• 33 spline quantity for secure drivetrain connection
• Square flange shape with 4 flange bolt holes (M14 x 1.5)
• Wheel stud size M14 x 1.5, 8 wheel studs required (not included)
• Includes ABS sensor cord and one connector
• Flange diameter 208 mm (8.19 inches) with 2.69 mm (68.3 mm) flange offset
• Wheel pilot diameter 116.6 mm (4.59 inches), brake pilot diameter 136.9 mm (5.39 inches)
• Hub pilot diameter 104.8 mm (4.13 inches)

Detailed Product Description

The DuraGo 295-15016 wheel bearing and hub assembly is specifically designed for the Chevrolet K2500 and GMC K2500 Suburban, ensuring precise fitment and optimal drivetrain performance. This driven hub assembly features a 33-spline shaft interface, providing a secure connection to the axle shaft. The square flange design includes four M14 x 1.5 flange bolt holes, engineered to match factory specifications. The assembly supports eight wheel studs sized M14 x 1.5, although wheel studs are not included with the part.

Critical dimensions such as the wheel pilot diameter (116.6 mm), brake pilot diameter (136.9 mm), and hub pilot diameter (104.8 mm) ensure proper alignment with the vehicle’s wheel and brake components. The flange diameter measures 208 mm with a flange offset of 2.69 mm, maintaining correct positioning relative to the axle.

Equipped with an ABS sensor and cord, this hub assembly supports the vehicle’s anti-lock braking system, enhancing safety and braking performance. The single connector included facilitates integration with the vehicle’s ABS wiring harness.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Chevrolet K2500 and GMC K2500 Suburban
• Resolves wheel noise or vibration caused by bearing wear
• Restores proper ABS sensor function to maintain anti-lock braking system performance
• Addresses wheel hub looseness or play affecting vehicle handling
• Corrects fitment issues related to flange or pilot diameter mismatches

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel stud sizes match the vehicle specifications. Since wheel studs and flange bolts are not included, reuse factory hardware if in good condition or source replacements separately. Handle the ABS sensor cord carefully to avoid damage during installation. Confirm proper torque specifications for flange bolts and wheel studs to maintain safety and performance.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. The 295-15016 part number undergoes rigorous quality control to ensure durability and reliable operation in Chevrolet K2500 and GMC K2500 Suburban vehicles. Warranty coverage details should be confirmed with the product documentation or manufacturer.
