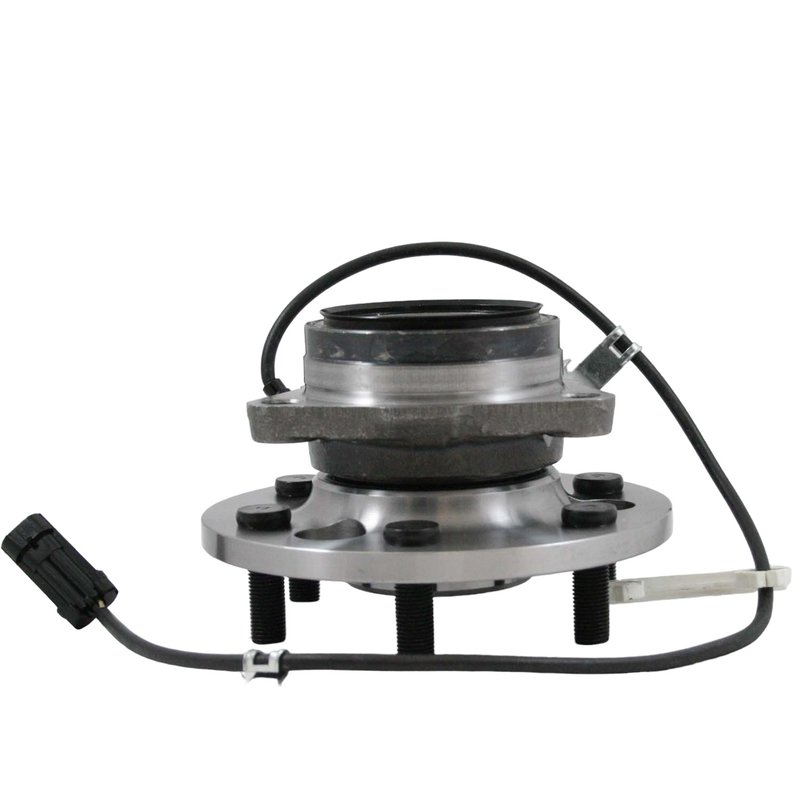

DuraGo 295-15024 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-15024 |
|---|---|
| Position | Front |
| Spline Quantity | 33 |
| 143 | 139.7 |
| 143 | 5.5 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M14 x 1.5 |
| Wheel Pilot Diameter | 3.06 |
| Wheel Pilot Diameter | 77.6 |
| Brake Pilot Diameter | 3.08 |
| Brake Pilot Diameter | 78.3 |
| Wheel Stud Quantity | 6 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.91 |
| Hub Pilot Diameter | 99.2 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Bolt Hole Diameter | 0.58 |
| Flange Bolt Hole Diameter | 14.7 |
| Flange Offset | 2.24 |
| Flange Offset | 56.8 |
| Flange Diameter | 181.8 |
| Flange Diameter | 7.16 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Fits | Cadillac, Chevrolet, and GMC · 37 vehicles |
OE-style hub assembly. Built as a driven wheel bearing and hub assembly for straightforward replacement.
ABS sensor included. Integrated sensor support helps maintain anti-lock braking system function.
Wheel studs included. Ready with six studs and a triangle flange for secure mounting.
Cross-references MOOG Hub Assemblies 515024, SKF BR930346 and Timken SP550307 for the same application. See all 11.
DuraGo 295-15024 Front Wheel Hub Assembly
DuraGo 295-15024 is a front wheel bearing and hub assembly for select GM trucks and SUVs with driven front hub applications. It is built with quality components, ABS sensor integration, and tested to meet DuraGo’s manufacturing standards for consistent fit and function.
Key Features
- Front driven wheel bearing and hub assembly
- ABS sensor type: sensor, with ABS sensor cord included
- Wheel stud size: M14 x 1.5
- Wheel stud quantity: 6, with studs included
- Flange shape: triangle
- Hub pilot diameter: 99.2 mm
- Wheel pilot diameter: 77.6 mm
- Brake pilot diameter: 78.3 mm
- Flange diameter: 181.8 mm
- Flange offset: 56.8 mm
- Spline quantity: 33
- Cross-references SKF BR930346 and Timken SP550307 for the same application
Detailed Description
This DuraGo wheel bearing and hub assembly is engineered for front axle service on 1995-2000 Chevrolet Tahoe, 1995-2000 GMC Yukon, 1999-2000 Cadillac Escalade, 1995-1999 Chevrolet K1500, 1995-1999 Chevrolet K1500 Suburban, 1995-1999 GMC K1500, 1995-1999 GMC K1500 Suburban, 1995 Chevrolet K2500, 1995 GMC K2500, and 1995 GMC K2500 Suburban. It is a driven hub assembly with ABS sensor provisions, making it a direct replacement choice for vehicles that use a sensor-based anti-lock braking system.
DuraGo builds its hub assemblies with quality components and tests each unit before release. The design supports reduced friction at the wheel end, which can help restore smooth rotation and proper hub operation on high-mileage front suspensions. Part number 295-15024 also cross-references MOOG 515024, SKF BR930346, and Timken SP550307 for the same application.
What It Helps Fix
- Front wheel bearing noise or roughness
- Excessive play at the wheel hub
- ABS warning light concerns related to hub sensor function
- Uneven wheel-end rotation caused by worn hub components
- Loss of proper hub engagement on driven front applications
Installation Notes and Tips
Verify spline count, wheel stud size, flange dimensions, and ABS sensor connection before installation. This part is for front position applications only and is not listed for rear use. Confirm vehicle-specific fitment for Chevrolet Tahoe, GMC Yukon, Cadillac Escalade, and related K1500/K2500 applications before ordering. DuraGo 295-15024 is a driven hub assembly, so matching the original driveline configuration is important for correct installation.
Quality Assurance
DuraGo has more than 45 years of aftermarket manufacturing experience. This hub assembly is 100% tested and produced to industry-leading quality standards that meet ISO/TS 16949:2002 requirements.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2000 | Cadillac | Escalade | — | — | — | — | Front | — |
| 2000 | Chevrolet | Tahoe | Z71 | 4WD | — | — | Front | — |
| 2000 | GMC | Yukon | — | 4WD | 5.7L | V8 | Front | — |
| 1999 | Cadillac | Escalade | — | — | — | — | Front | — |
| 1999 | Chevrolet | K1500 | — | — | — | — | Front | 6 Lug |
| 1999 | Chevrolet | K1500 Suburban | — | — | — | — | Front | 6 Lug |
| 1999 | Chevrolet | Tahoe | — | — | — | — | Front | — |
| 1999 | GMC | K1500 | — | — | — | — | Front | 6 Stud |
| 1999 | GMC | K1500 Suburban | — | — | — | — | Front | 6 Stud |
| 1999 | GMC | Yukon | — | 4WD | — | — | Front | — |
| 1998 | Chevrolet | K1500 | — | — | — | — | Front | 6 Lug |
| 1998 | Chevrolet | K1500 Suburban | — | — | — | — | Front | 6 Lug |
| 1998 | Chevrolet | Tahoe | — | — | — | — | Front | — |
| 1998 | GMC | K1500 | — | — | — | — | Front | 6 Stud |
| 1998 | GMC | K1500 Suburban | — | — | — | — | Front | 6 Stud |
| 1998 | GMC | Yukon | — | 4WD | — | — | Front | — |
| 1997 | Chevrolet | K1500 | — | — | — | — | Front | 6 Lug |
| 1997 | Chevrolet | K1500 Suburban | — | — | — | — | Front | 6 Lug |
| 1997 | Chevrolet | Tahoe | — | — | — | — | Front | — |
| 1997 | GMC | K1500 | — | — | — | — | Front | 6 Stud |
| 1997 | GMC | K1500 Suburban | — | — | — | — | Front | 6 Stud |
| 1997 | GMC | Yukon | — | 4WD | — | — | Front | — |
| 1996 | Chevrolet | K1500 | — | — | — | — | Front | 6 Lug |
| 1996 | Chevrolet | K1500 Suburban | — | — | — | — | Front | 6 Lug |
| 1996 | Chevrolet | Tahoe | — | — | — | — | Front | — |
| 1996 | GMC | K1500 | — | — | — | — | Front | 6 Stud |
| 1996 | GMC | K1500 Suburban | — | — | — | — | Front | 6 Stud |
| 1996 | GMC | Yukon | — | 4WD | — | — | Front | — |
| 1995 | Chevrolet | K1500 | — | — | — | — | Front | 6 Lug |
| 1995 | Chevrolet | K1500 Suburban | — | — | — | — | Front | 6 Lug |
| 1995 | Chevrolet | K2500 | — | — | — | — | Front | 6 Lug |
| 1995 | Chevrolet | Tahoe | — | — | — | — | Front | — |
| 1995 | GMC | K1500 | — | — | — | — | Front | 6 Stud |
| 1995 | GMC | K1500 Suburban | — | — | — | — | Front | 6 Stud |
| 1995 | GMC | K2500 | — | — | — | — | Front | 6 Stud |
| 1995 | GMC | K2500 Suburban | — | — | — | — | Front | 6 Stud |
| 1995 | GMC | Yukon | — | 4WD | — | — | Front | — |
