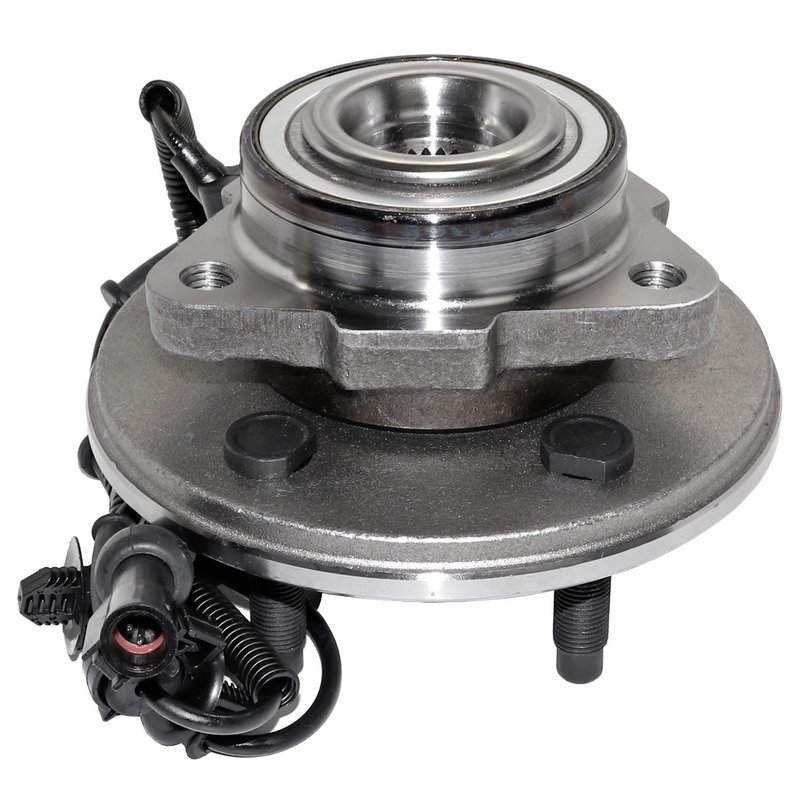

DuraGo 295-15050 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-15050 |
|---|---|
| Position | Front |
| Spline Quantity | 27 |
| 143 | 114.3 |
| 143 | 4.5 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | 1/2-20 |
| Wheel Pilot Diameter | 2.78 |
| Wheel Pilot Diameter | 70.5 |
| Brake Pilot Diameter | 3.22 |
| Brake Pilot Diameter | 81.9 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.35 |
| Hub Pilot Diameter | 85 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 1.9 |
| Flange Offset | 48.3 |
| Flange Diameter | 160 |
| Flange Diameter | 6.3 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Ford, Lincoln, and Mercury · 18 vehicles |
OE-style replacement. Restores smooth hub operation with a direct-fit assembly.
ABS sensor included. Built with sensor-based anti-lock braking system support.
Wheel studs included. Ready for assembly with studs already in place.
Cross-references MOOG Hub Assemblies 515050, SKF BR930456 and Timken SP470200 for the same application. See all 22.
DuraGo 295-15050 Front Hub Assembly
DuraGo 295-15050 is a front wheel bearing and hub assembly for select Ford, Lincoln, and Mercury applications. It is built for driven front axle use and includes ABS sensor integration for vehicles that use a sensor-type anti-lock braking system.
Key Features
- Front wheel bearing and hub assembly for driven applications
- ABS sensor type design with ABS sensor cord included
- 27-spline hub configuration
- 5 wheel studs with 1/2-20 wheel stud size
- Triangle flange shape with 160 mm flange diameter
- Hub pilot diameter: 85 mm; wheel pilot diameter: 70.5 mm
- Brake pilot diameter: 81.9 mm
- Flange offset: 48.3 mm
- Flange bolt size: M12 x 1.75
- Built and 100% tested to meet industry-leading quality standards
Detailed Description
This DuraGo wheel bearing and hub assembly is engineered for front axle service on 2002-2005 Ford Explorer, 2003-2005 Lincoln Aviator, and 2002-2005 Mercury Mountaineer models. The assembly is manufactured with quality components and tested to verify performance before release. DuraGo 295-15050 is designed to reduce friction at the hub, which can help restore smooth wheel rotation and support fuel economy when replacing a worn unit. This part cross-references Timken SP470200 for the same application.
What It Helps Address
- Front wheel bearing noise or roughness
- Excessive hub play or looseness
- ABS warning light concerns related to hub sensor function
- Uneven wheel rotation caused by a worn hub assembly
- Vibration or driveline feel from a deteriorated front hub
Installation Notes and Tips
Fits 2002-2005 Ford Explorer, front; 2003-2005 Lincoln Aviator, front; and 2002-2005 Mercury Mountaineer, front. For 2002-2005 Ford Explorer front applications, axle nut torque is 184 ft-lbs (250 Nm). Verify spline count, flange dimensions, and ABS sensor connection before installation. Confirm the vehicle uses a driven front hub configuration and match the original hub pilot and brake pilot dimensions during replacement. The part number 295-15050 should be checked against the removed assembly before final installation.
Quality Assurance
DuraGo manufactures this hub assembly to ISO/TS 16949:2002 quality standards and tests each unit to confirm it meets internal specifications. The brand has more than 45 years of aftermarket manufacturing experience, and 295-15050 is built using high-quality components for consistent fit and function.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Ford | Explorer | AWD | Front | Axle Nut Torque 184 ft-lbs (250 Nm) |
| 2005 | Ford | Explorer | RWD | Front | — |
| 2005 | Ford | Explorer | 4WD | Front | Axle Nut Torque 184 ft-lbs (250 Nm) |
| 2005 | Lincoln | Aviator | — | Front | — |
| 2005 | Mercury | Mountaineer | — | Front | — |
| 2004 | Ford | Explorer | AWD | Front | Axle Nut Torque 184 ft-lbs (250 Nm) |
| 2004 | Ford | Explorer | RWD | Front | — |
| 2004 | Ford | Explorer | 4WD | Front | Axle Nut Torque 184 ft-lbs (250 Nm) |
| 2004 | Lincoln | Aviator | — | Front | — |
| 2004 | Mercury | Mountaineer | — | Front | — |
| 2003 | Ford | Explorer | AWD | Front | Axle Nut Torque 184 ft-lbs (250 Nm) |
| 2003 | Ford | Explorer | RWD | Front | — |
| 2003 | Ford | Explorer | 4WD | Front | Axle Nut Torque 184 ft-lbs (250 Nm) |
| 2003 | Lincoln | Aviator | — | Front | — |
| 2003 | Mercury | Mountaineer | — | Front | — |
| 2002 | Ford | Explorer | RWD | Front | — |
| 2002 | Ford | Explorer | 4WD | Front | Axle Nut Torque 184 ft-lbs (250 Nm) |
| 2002 | Mercury | Mountaineer | — | Front | — |
