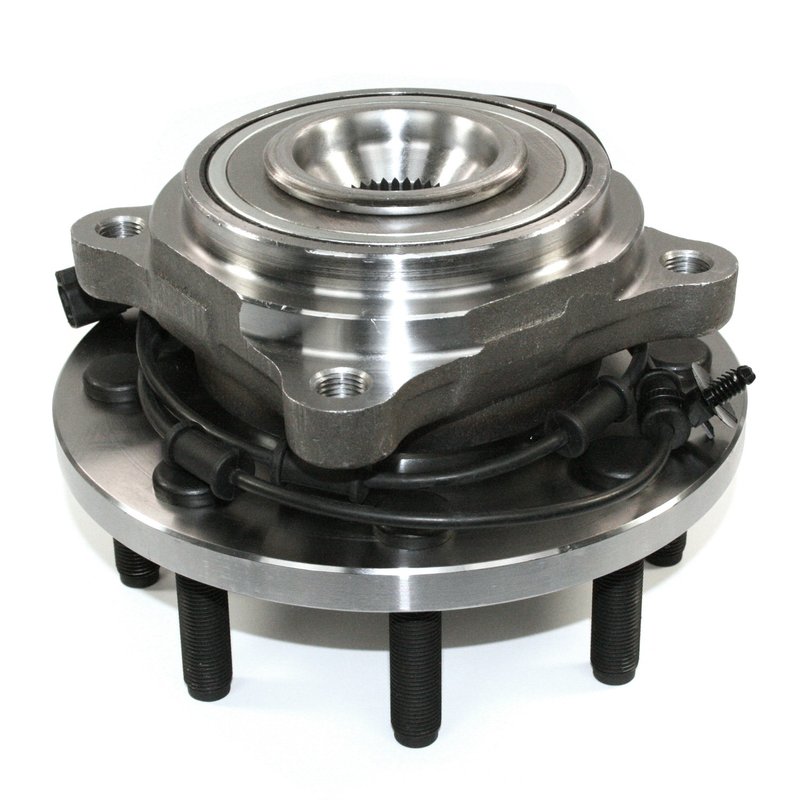

DuraGo 295-15122 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-15122 |
|---|---|
| Position | Front |
| Spline Quantity | 35 |
| 143 | 165.1 |
| 143 | 6.5 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | 9/16-18 |
| Wheel Pilot Diameter | 121 |
| Wheel Pilot Diameter | 4.76 |
| Brake Pilot Diameter | 122.9 |
| Brake Pilot Diameter | 4.84 |
| Wheel Stud Quantity | 8 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 140 |
| Hub Pilot Diameter | 5.51 |
| Flange Shape | Square |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 2.22 |
| Flange Offset | 56.3 |
| Flange Diameter | 205 |
| Flange Diameter | 8.07 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M14 x 1.5 |
| Fits | Dodge and Ram · 6 vehicles |
Driven hub assembly. Built for smooth power transfer and dependable wheel support.
ABS sensor included. Integrated sensor support helps maintain braking system compatibility.
Wheel studs included. Ready with studs already in place for a simpler install.
Cross-references MOOG Hub Assemblies 515122, SKF BR930546 and Timken HA590346 for the same application. See all 7.
DuraGo Front Wheel Bearing and Hub Assembly
DuraGo 295-15122 is a front wheel bearing and hub assembly for select Ram and Dodge Ram heavy-duty trucks. It is built for driven front applications with ABS sensor integration, making it a direct-fit service part for restoring smooth wheel rotation and reliable wheel speed signal performance.
Fits 2009-2011 Dodge Ram 2500, front. Fits 2009-2011 Dodge Ram 3500, front. This part cross-references SKF BR930546 and Timken HA590346 for the same application.
Key Features
- Front driven wheel bearing and hub assembly
- ABS sensor type with sensor cord included
- Wheel stud size: 9/16-18
- Wheel studs included
- Flange bolt hole quantity: 4
- Flange bolt size: M14 x 1.5
- Square flange shape with 8.07 in. flange diameter
- 35-spline hub design
- Hub pilot diameter: 5.51 in.
- Wheel pilot diameter: 4.76 in.
- Brake pilot diameter: 4.84 in.
Product Details
DuraGo 295-15122 is engineered for front axle service on 2009-2011 Dodge Ram 2500, front and 2009-2011 Dodge Ram 3500, front, as well as 2011 Ram 2500, front and 2011 Ram 3500, front. The assembly is designed for driven front hub applications and includes ABS sensor provisions to support wheel speed signal operation. DuraGo assembles each hub unit with quality components and tests every unit to meet its manufacturing standards. The brand’s aftermarket hub assemblies are produced to ISO/TS 16949:2002 quality standards.
Common Issues This Part Can Address
- Front wheel bearing noise or rough rotation
- Excessive hub play or looseness
- ABS warning light caused by hub sensor issues
- Wheel speed signal interruption at the front axle
- Vibration or uneven hub operation during driving
Installation Notes and Tips
Verify front axle configuration, ABS sensor style, flange dimensions, and wheel stud specifications before installation. Confirm the vehicle application by year, make, model, and position: 2009-2011 Dodge Ram 2500, front; 2009-2011 Dodge Ram 3500, front; 2011 Ram 2500, front; and 2011 Ram 3500, front. Inspect the mating surfaces, axle components, and fastener threads during service to help ensure proper hub seating and sensor alignment.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit before release. The product is built to meet ISO/TS 16949:2002 manufacturing requirements.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Ram | 2500 | 4WD | Front | — |
| 2011 | Ram | 3500 | 4WD | Front | — |
| 2010 | Dodge | Ram 2500 | 4WD | Front | — |
| 2010 | Dodge | Ram 3500 | 4WD | Front | — |
| 2009 | Dodge | Ram 2500 | 4WD | Front | — |
| 2009 | Dodge | Ram 3500 | 4WD | Front | — |
