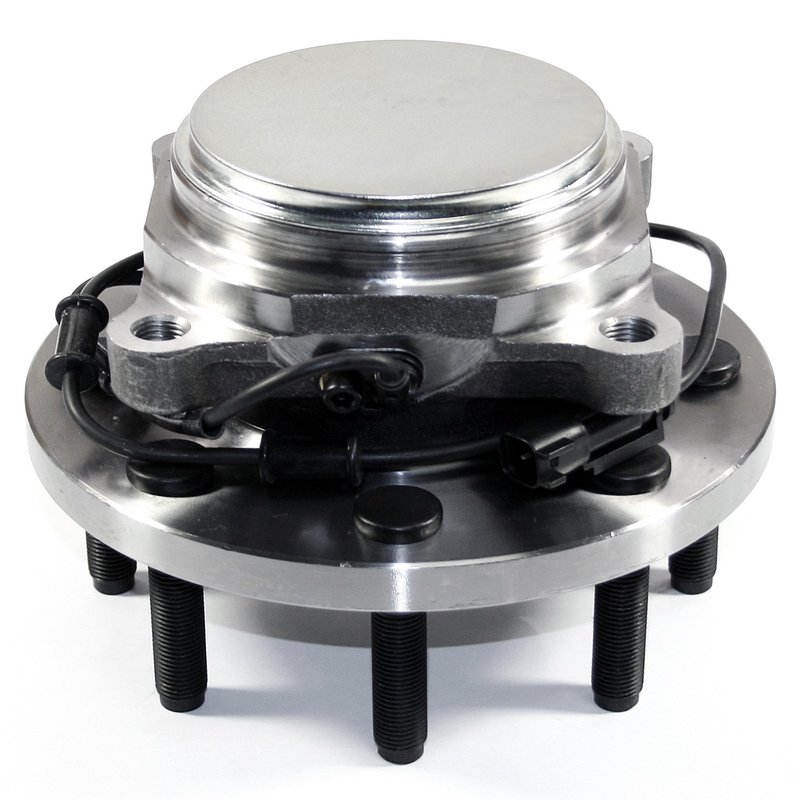

DuraGo 295-15123 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-15123 |
|---|---|
| Position | Front |
| 143 | 165.1 |
| 143 | 6.5 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | 9/16-18 |
| Wheel Pilot Diameter | 121 |
| Wheel Pilot Diameter | 4.76 |
| Brake Pilot Diameter | 122.9 |
| Brake Pilot Diameter | 4.84 |
| Wheel Stud Quantity | 8 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 120 |
| Hub Pilot Diameter | 4.72 |
| Flange Shape | Square |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 2.22 |
| Flange Offset | 56.3 |
| Flange Diameter | 205 |
| Flange Diameter | 8.07 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Flange Bolt Size | M14 x 1.5 |
| Fits | Dodge and Ram · 6 vehicles |
OE-style hub assembly. Non-driven design for a straightforward replacement.
ABS sensor included. Built with sensor-based anti-lock braking support.
Wheel studs included. Ready for assembly with studs already installed.
Cross-references MOOG Hub Assemblies 515123, SKF BR930547 and Timken HA590347 for the same application. See all 7.
DuraGo 295-15123 Front Hub Assembly
The DuraGo 295-15123 wheel bearing and hub assembly is built for front-end service on select Ram and Dodge Ram heavy-duty trucks. It combines a non-driven hub design with ABS sensor integration to support stable wheel rotation and reliable wheel speed signal transfer.
Key Features
- Front wheel bearing and hub assembly for select Ram 2500 and Ram 3500 applications
- Non-driven hub assembly design
- ABS sensor type with sensor cord included and one connector
- Wheel stud size: 9/16-18 with wheel studs included
- Flange bolt hole quantity: 4 and flange bolt size: M14 x 1.5
- Square flange shape with 8.07 in. flange diameter and 2.22 in. flange offset
- Hub pilot diameter: 4.72 in.; wheel pilot diameter: 4.76 in.; brake pilot diameter: 4.84 in.
Detailed Description
This DuraGo hub assembly is engineered for front-wheel service on 2009-2010 Dodge Ram 2500, 2009-2010 Dodge Ram 3500, 2011 Ram 2500, and 2011 Ram 3500 models. It is a non-driven wheel bearing and hub assembly with ABS sensor provisions, making it a direct-fit service part for trucks that rely on wheel speed input at the front hub. The DuraGo 295-15123 is manufactured using quality components and tested to meet DuraGo’s production standards, with construction aligned to ISO/TS 16949:2002 quality practices.
This part cross-references SKF BR930547 and Timken HA590347 for the same application.
What It Is Used For
- Replacing a worn or noisy front hub assembly
- Restoring proper wheel bearing support at the front axle
- Addressing ABS warning lights related to hub-mounted sensor issues
- Correcting wheel play, vibration, or uneven hub rotation
- Supporting accurate wheel speed signal transfer on Ram and Dodge Ram trucks
Installation Notes and Tips
Verify front-position fitment before installation on 2009-2011 Ram 2500 and Ram 3500 trucks. Confirm flange bolt pattern, wheel stud size, and ABS connector style against the original hub assembly before removal. Clean the mounting surface thoroughly and inspect surrounding brake and steering components for wear while the hub is accessible.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit before release. The part is produced to meet ISO/TS 16949:2002 quality requirements.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Ram | 2500 | RWD | Front | — |
| 2011 | Ram | 3500 | RWD | Front | — |
| 2010 | Dodge | Ram 2500 | RWD | Front | — |
| 2010 | Dodge | Ram 3500 | RWD | Front | — |
| 2009 | Dodge | Ram 2500 | RWD | Front | — |
| 2009 | Dodge | Ram 3500 | RWD | Front | — |
