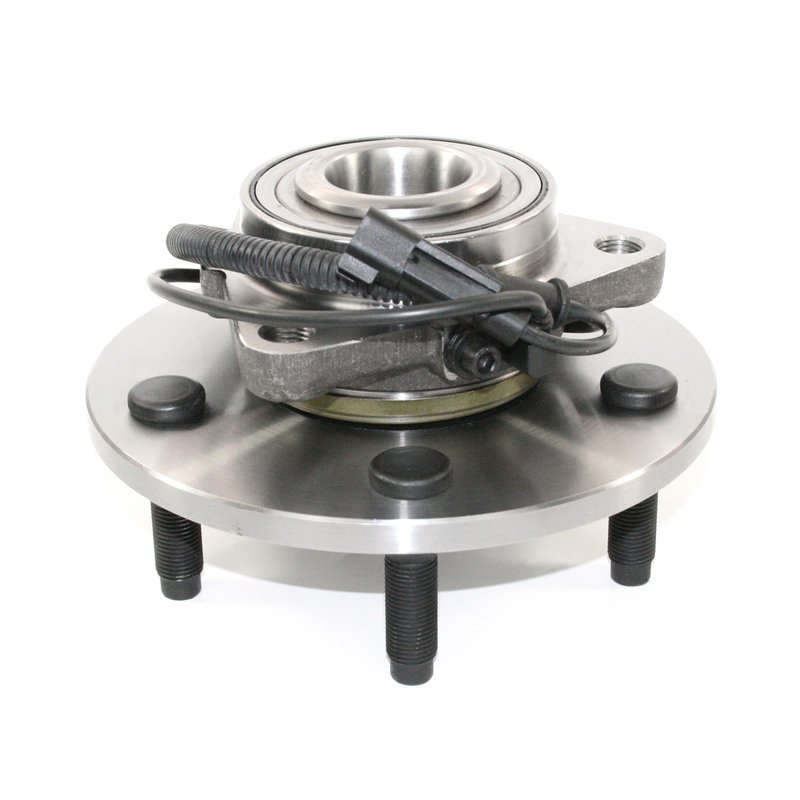

DuraGo 295-15126 Wheel Bearing and Hub Assembly - Front

Overview of DuraGo 295-15126 Wheel Bearing and Hub Assembly

The DuraGo 295-15126 wheel bearing and hub assembly is engineered for reliable performance on Dodge Ram 1500 trucks. Designed as a driven hub assembly, it integrates an ABS sensor to maintain proper anti-lock braking system function, ensuring safety and stability on the road.

• Compatible with Dodge Ram 1500 models
• Driven type hub assembly with integrated ABS sensor
• 33 spline quantity for secure axle connection
• 5 wheel studs sized 9/16-18 included
• Triangle flange shape with 3 bolt holes (M14 x 1.5 flange bolts)
• ABS sensor cord included for seamless integration
• Flange diameter of 183 mm and flange offset of 46.8 mm
• Wheel pilot diameter of 77.7 mm and brake pilot diameter of 78.4 mm

Detailed Product Description

This DuraGo wheel bearing and hub assembly (part number 295-15126) is specifically designed for the Dodge Ram 1500, providing a precise fit and reliable operation. The assembly features a 33-spline driven hub that ensures a secure connection to the axle shaft. It includes five 9/16-18 sized wheel studs, which are pre-installed to facilitate wheel mounting. The triangle flange shape with three bolt holes (M14 x 1.5) offers a robust mounting surface, while the flange diameter measures 183 mm with an offset of 46.8 mm, matching OEM specifications.

Additionally, this hub assembly incorporates an ABS sensor with one connector and includes the ABS sensor cord, supporting the vehicle’s anti-lock braking system for enhanced safety. The wheel pilot diameter of 77.7 mm and brake pilot diameter of 78.4 mm ensure proper alignment of the wheel and brake components, reducing vibration and wear.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Dodge Ram 1500
• Resolves wheel vibration and noise caused by bearing failure
• Restores proper ABS sensor function to maintain braking safety
• Fixes wheel alignment issues related to hub pilot diameter wear
• Addresses loose or damaged wheel studs for secure wheel mounting

Installation Notes and Tips

When installing the DuraGo 295-15126 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify the spline count (33 splines) matches the axle shaft. Confirm the flange bolt hole pattern and size (3 holes, M14 x 1.5) align with the vehicle’s mounting points. Connect the ABS sensor cord carefully to avoid damage. Torque all fasteners to manufacturer specifications to ensure proper fit and function.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet or exceed OEM standards for durability and performance. The part includes an integrated ABS sensor and is designed for long service life under normal operating conditions. Warranty coverage details should be confirmed with the distributor or retailer at the time of purchase.
