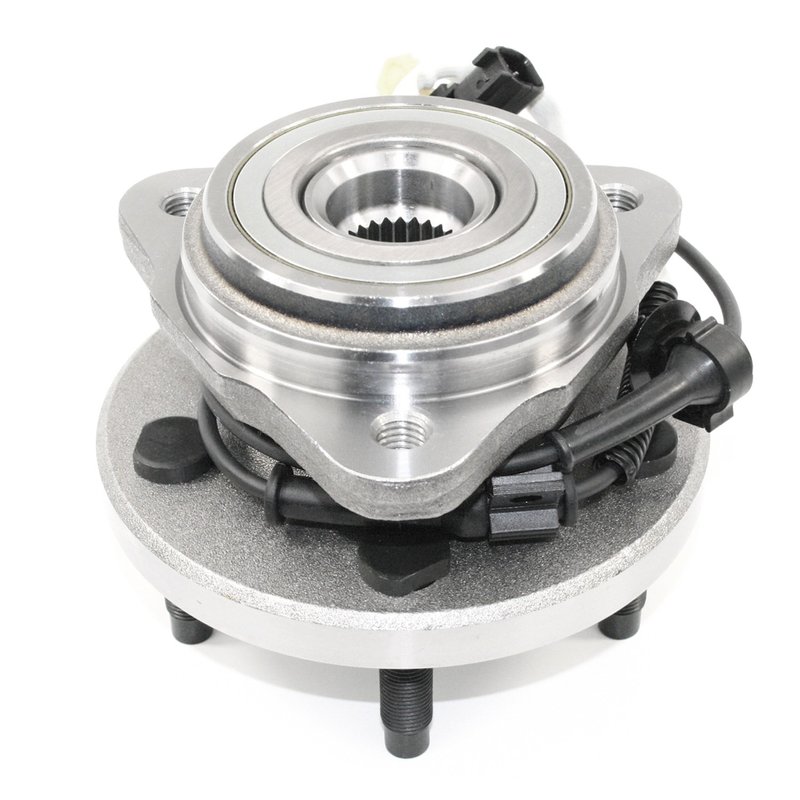

DuraGo 295-15129 Wheel Bearing and Hub Assembly - Front

Overview of DuraGo 295-15129 Wheel Bearing and Hub Assembly

The DuraGo 295-15129 wheel bearing and hub assembly is engineered for reliable performance on Ford B4000 and Mazda Ranger vehicles. Designed as a driven hub assembly, it integrates an ABS sensor to maintain proper anti-lock braking system function.

• Compatible with Ford B4000 and Mazda Ranger models
• Driven type hub assembly with integrated ABS sensor
• Includes 5 wheel studs sized 1/2-20
• 27 spline quantity for secure drivetrain connection
• Triangle flange shape with 3 bolt holes (M12 x 1.75)
• Wheel pilot diameter of 2.77 inches (70.4 mm)
• Brake pilot diameter of 2.83 inches (71.8 mm)
• Flange diameter of 5.88 inches (149.4 mm) with 2.2 inch (55.8 mm) flange offset
• ABS sensor cord included for seamless integration

Technical Details and Specifications

This DuraGo wheel bearing and hub assembly (part number 295-15129) features a 27-spline driven hub designed to fit the specific drivetrain requirements of Ford B4000 and Mazda Ranger trucks. The assembly includes five 1/2-20 wheel studs and a triangle flange with three bolt holes sized M12 x 1.75, ensuring proper mounting and alignment. The wheel pilot diameter measures 2.77 inches (70.4 mm), while the brake pilot diameter is 2.83 inches (71.8 mm), providing precise fitment for brake components. The flange diameter is 5.88 inches (149.4 mm) with a flange offset of 2.2 inches (55.8 mm), supporting correct wheel positioning. An ABS sensor is integrated with one connector and the sensor cord included, maintaining anti-lock braking system functionality.

Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Ford B4000 and Mazda Ranger
• Restores proper ABS sensor operation to prevent braking issues
• Eliminates wheel noise and vibration caused by bearing wear
• Ensures secure wheel mounting with included wheel studs
• Maintains drivetrain integrity with 27 spline driven hub design

Installation Notes and Tips

When installing the DuraGo 295-15129 wheel bearing and hub assembly, verify compatibility with your Ford B4000 or Mazda Ranger model year and drivetrain configuration. The assembly includes wheel studs and an ABS sensor cord, but flange bolts are not included and must be sourced separately. Proper torque specifications should be followed for flange bolts (M12 x 1.75) and wheel studs to ensure safe operation. Inspect the axle shaft splines and mounting surfaces for damage before installation to guarantee a secure fit.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. This part number 295-15129 is designed to provide consistent performance and durability for Ford B4000 and Mazda Ranger vehicles. Warranty coverage details should be confirmed with the original product documentation or supplier.
