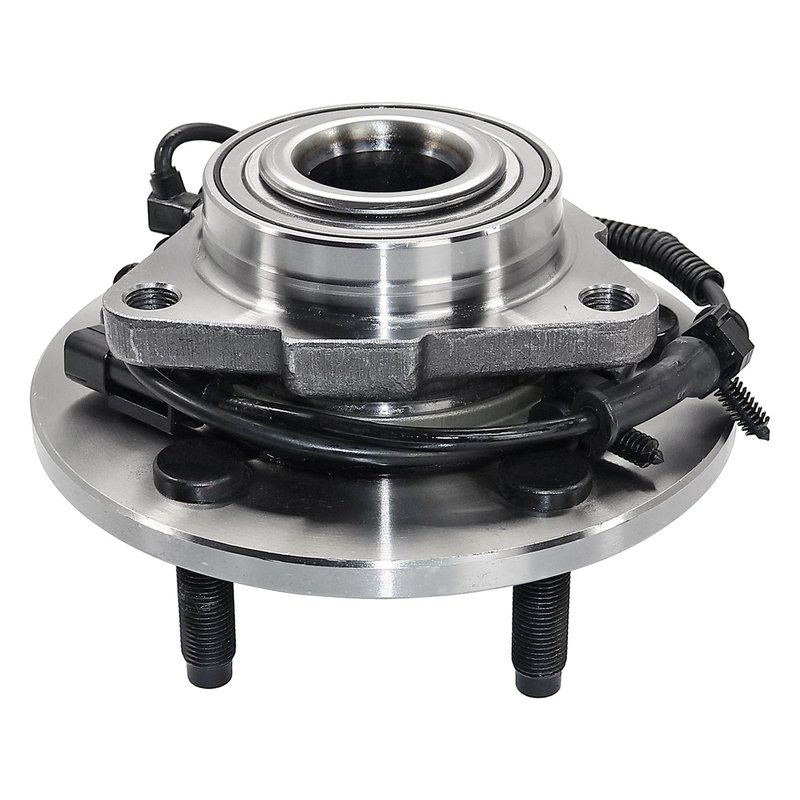

DuraGo 295-15151 Wheel Bearing and Hub Assembly - Front

DuraGo Front Wheel Bearing and Hub Assembly

The DuraGo 295-15151 wheel bearing and hub assembly is built for front axle service on select Ram 1500 and Ram 1500 Classic applications. It combines the hub, bearing, and ABS sensor-related components into one service unit to help restore smooth wheel rotation and consistent wheel speed signal performance.

For Ram 1500 front hub replacement needs, this assembly is engineered with a 33-spline driven hub design, 5 wheel studs with M14 x 1.5 threads, and a triangle flange shape. DuraGo 295-15151 is a direct-fit front wheel bearing hub assembly for 2012-2021 Ram 1500 and 2019-2022 Ram 1500 Classic models.

Key Features

• Front wheel bearing and hub assembly for driven applications
• Fits 2012-2021 Ram 1500, front
• Fits 2019-2022 Ram 1500 Classic, front
• 33-spline hub design
• 5 wheel studs with M14 x 1.5 thread size
• ABS sensor type hub with ABS wheel speed sensor cable included
• Triangle flange shape with 3 flange bolt holes
• Hub pilot diameter: 90 mm
• Bolt circle diameter: 139.7 mm

Detailed Description

DuraGo 295-15151 is a front wheel bearing and hub assembly for Ram 1500 and Ram 1500 Classic trucks that use a driven hub configuration. It is built with quality components and 100% tested to meet DuraGo’s manufacturing standards. The assembly includes ABS sensor provisions and a wheel speed sensor cable, supporting proper signal transfer for vehicles equipped with anti-lock braking systems. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

What It Helps Address

• Wheel bearing noise from a worn front hub assembly
• Excessive wheel play or looseness at the hub
• ABS warning light concerns related to hub-mounted sensor issues
• Rough wheel rotation caused by bearing wear
• Front-end vibration tied to hub or bearing deterioration

Installation Notes and Tips

Verify front axle fitment by year, model, and driven hub configuration before installation. Inspect the mating surfaces, axle splines, and brake components during service, and confirm the ABS connector and sensor routing match the original setup. Torque fasteners to the vehicle manufacturer’s specifications and check wheel bearing preload and sensor operation after installation.

Quality Assurance

DuraGo manufactures this hub assembly to industry-leading quality standards and states that its hub assemblies meet ISO/TS 16949:2002 requirements. The brand also notes that each unit is 100% tested before release.
