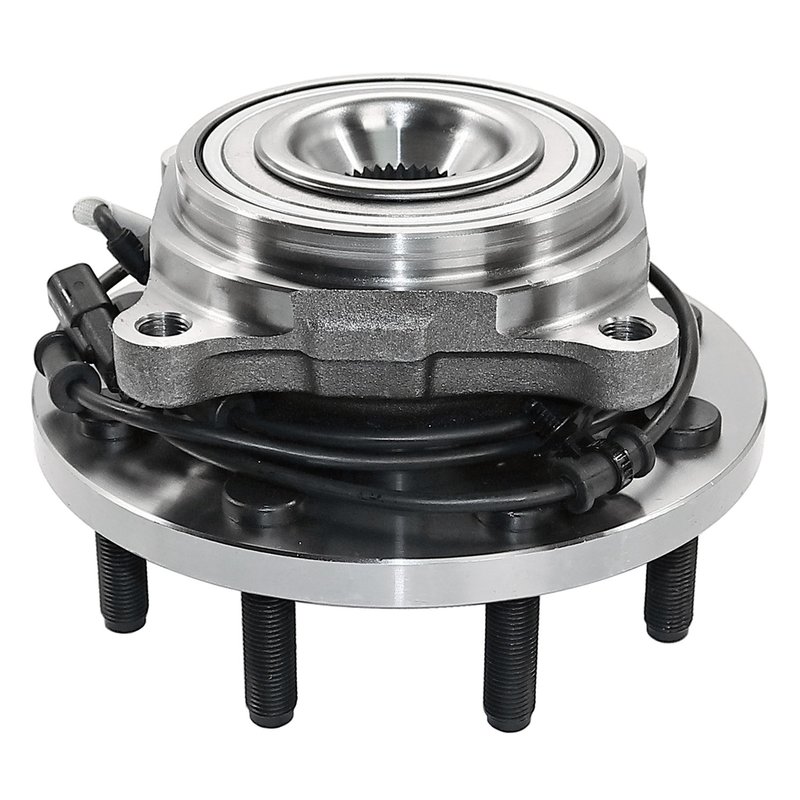

DuraGo 295-15162 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-15162 |
|---|---|
| Position | Front |
| Spline Quantity | 35 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M14 x 1.5 |
| Wheel Pilot Diameter | 121 |
| Wheel Pilot Diameter | 4.76 |
| Brake Pilot Diameter | 122.9 |
| Brake Pilot Diameter | 4.84 |
| Wheel Stud Quantity | 8 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 120 |
| Hub Pilot Diameter | 4.72 |
| Flange Shape | Square |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 2.22 |
| Flange Offset | 56.3 |
| Flange Diameter | 205 |
| Flange Diameter | 8.07 |
| Bolt Circle Diameter | 165 |
| Bolt Circle Diameter | 6.5 |
| ABS Wheel Speed Sensor Cable Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M14 x 1.5 |
| Fits | Ram · 11 vehicles |
OE-style replacement. Direct-fit hub assembly for straightforward installation.
ABS sensor included. Built with a sensor-type anti-lock braking system connection.
100% tested. Assembled with quality components to meet ISO/TS 16949:2002 standards.
DuraGo Front Wheel Bearing Hub Assembly
The DuraGo 295-15162 wheel bearing and hub assembly is built for front-end service on select Ram heavy-duty trucks. It combines the hub, bearing, ABS sensor, and wheel studs into one service unit to restore smooth wheel rotation and consistent wheel speed signal output.
Compatible With 2014-2018 Ram 2500 front and 2013-2018 Ram 3500 front, this driven hub assembly is a direct-fit service part for trucks using a 35-spline front hub design. The DuraGo 295-15162 is engineered for applications with ABS sensor integration and a 6.5-inch bolt circle.
- Front wheel bearing and hub assembly for Ram 2500 and Ram 3500
- Driven hub assembly with 35 spline quantity
- ABS sensor type hub with ABS wheel speed sensor cable included
- Wheel stud size: M14 x 1.5
- Wheel studs included and wheel stud quantity: 8
- Flange shape: square
- Bolt circle diameter: 165 mm / 6.5 in
- Flange diameter: 205 mm / 8.07 in
- Hub pilot diameter: 120 mm / 4.72 in
- Wheel pilot diameter: 121 mm / 4.76 in
- Brake pilot diameter: 122.9 mm / 4.84 in
Fitment Details
Fits 2014-2018 Ram 2500, front.
Fits 2013-2018 Ram 3500, front.
This part cross-references OE-style hub applications for the same front axle service use.
What This Hub Assembly Helps Address
- Wheel bearing noise from a worn front hub assembly
- ABS warning lights caused by a failing wheel speed sensor circuit
- Front-end vibration related to hub wear or looseness
- Uneven wheel rotation caused by bearing friction
- Service issues on Ram 2500 and Ram 3500 front driveline hubs
Installation Notes and Tips
Verify spline count, bolt circle diameter, pilot diameters, and ABS connector style before installation. This is a front driven hub assembly, so confirm the vehicle uses the matching front axle configuration and sensor-equipped hub design. Clean the mounting surface thoroughly and inspect surrounding brake and steering components during service.
Quality Assurance
DuraGo states that its hub assemblies are assembled with quality components, fully tested, and manufactured to ISO/TS 16949:2002 quality standards. The 295-15162 is built to meet those production and testing requirements for front hub service on Ram heavy-duty applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Ram | 2500 | Front | — |
| 2018 | Ram | 3500 | Front | — |
| 2017 | Ram | 2500 | Front | — |
| 2017 | Ram | 3500 | Front | — |
| 2016 | Ram | 2500 | Front | — |
| 2016 | Ram | 3500 | Front | — |
| 2015 | Ram | 2500 | Front | — |
| 2015 | Ram | 3500 | Front | — |
| 2014 | Ram | 2500 | Front | — |
| 2014 | Ram | 3500 | Front | — |
| 2013 | Ram | 3500 | Front | — |
