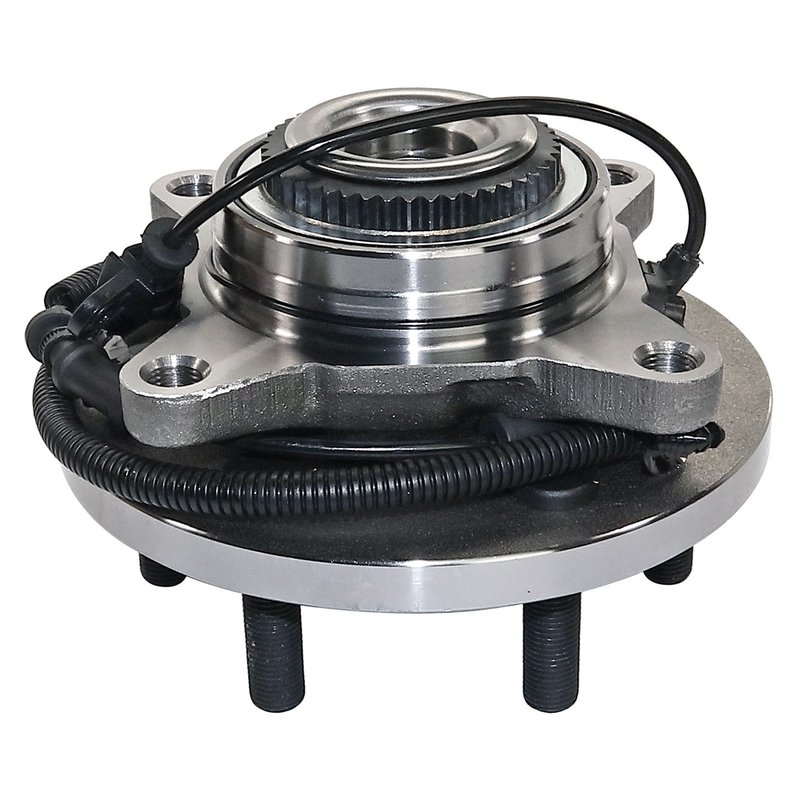

DuraGo 295-15177 Wheel Bearing and Hub Assembly - Front

DuraGo Front Wheel Bearing and Hub Assembly

The DuraGo 295-15177 wheel bearing and hub assembly is built for the front position on 2018-2020 Ford F-150 models. It combines the hub, bearing, and ABS-related components into one service part for a direct replacement on driven front applications.

For Ford F-150 front hub replacement needs, this assembly is engineered with a 54-spline design, 5 wheel studs with M14 x 1.5 stud size, and a 4-bolt flange pattern. It also includes an ABS wheel speed sensor cable and uses a sensor-type anti-lock braking system connection.

Key Features

• Part number: 295-15177
• Fits 2018-2020 Ford F-150, front
• Driven hub assembly for front axle service
• ABS sensor type with wheel speed sensor cable included
• 54-spline hub design
• 5 wheel studs with M14 x 1.5 wheel stud size
• 4 flange bolt holes and square flange shape
• Bolt circle diameter: 135 mm / 5.31 in
• Hub pilot diameter: 99.3 mm / 3.91 in
• Wheel pilot diameter: 86.8 mm / 3.42 in
• Brake pilot diameter: 90 mm / 3.54 in

Detailed Description

DuraGo manufactures this premium hub assembly to replace worn front wheel hub components on the Ford F-150. The assembly is built with quality components and tested before release to help maintain proper wheel support, reduce friction, and support efficient driveline operation. The integrated ABS sensor cable helps maintain wheel speed signal function on vehicles equipped with sensor-type anti-lock braking systems. DuraGo 295-15177 is a practical choice for front hub service on 2018, 2019, and 2020 Ford F-150 trucks.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• ABS warning light concerns related to the wheel speed sensor circuit
• Vibration or uneven wheel support from a worn hub assembly
• Reduced driveline efficiency caused by a deteriorated hub unit

Installation Notes and Tips

Verify front-position fitment on 2018-2020 Ford F-150 before installation. Confirm the 54-spline hub interface, 135 mm bolt circle, M14 x 1.5 flange bolt size, and ABS sensor connection match the original part. Inspect the mating surfaces, axle interface, and brake components during service, and follow factory torque specifications during reassembly.

Quality Assurance

DuraGo hub assemblies are manufactured to industry-leading quality standards and are tested to meet the company’s internal requirements. The brand states that its hub assemblies meet ISO/TS 16949:2002 quality standards.
