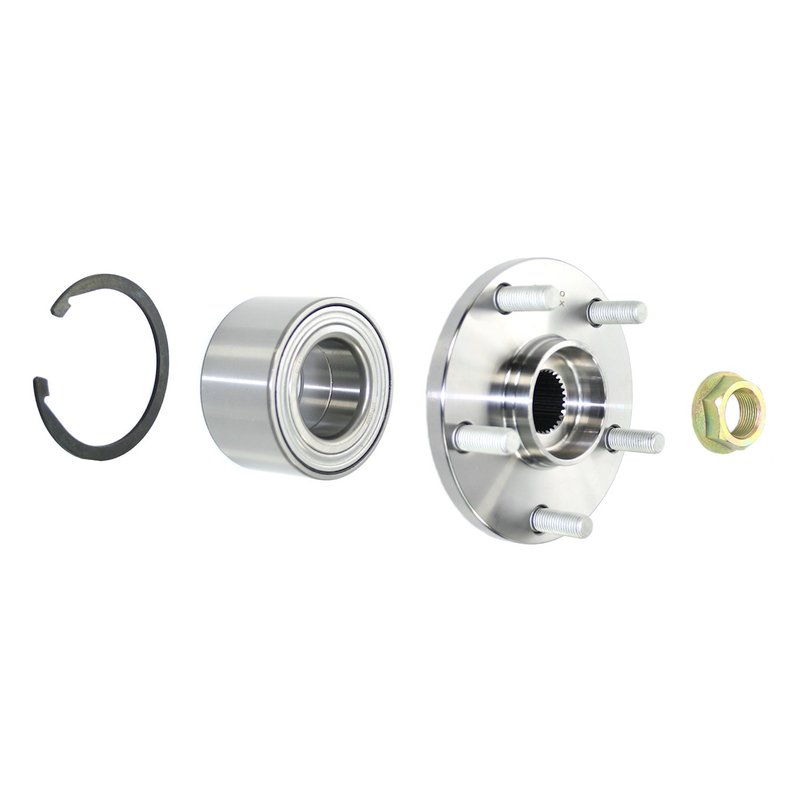

DuraGo 295-18509 Wheel Hub Repair Kit - Front

DuraGo Wheel Hub Repair Kit 295-18509

DuraGo 295-18509 is a front wheel hub repair kit for select Toyota and Lexus applications that use a non-integral hub and bearing service design. It brings together the core components needed to restore hub and bearing function with one part number, making it a practical choice for Toyota Camry front wheel hub repair, Lexus ES300 front hub service, and other listed applications.

Key Features

• Wheel hub repair kit for non-integral wheel hub and bearing service
• Includes hub, wheel bearing, retaining ring, and axle nut
• Front position application
• 5 wheel studs with M12 x 1.5 thread size
• Hub pilot diameter: 43 mm (1.69 in.)
• Brake pilot diameter: 62 mm (2.44 in.)
• Wheel pilot diameter: 60 mm (2.36 in.)
• Flange diameter: 139 mm (5.47 in.)
• Height: 76.5 mm (3.01 in.)
• 30 hub spline quantity
• Wheel seal not included

Detailed Description

DuraGo 295-18509 is engineered as a complete front wheel hub repair solution for vehicles that require service of the hub and bearing assembly rather than a one-piece integral unit. The kit is built around the specified hub dimensions, 5-stud wheel mounting, and 30-spline hub configuration to match the listed Toyota and Lexus front applications. It is a direct-fit service option for 1992-2003 Toyota Camry, 1995-2004 Toyota Avalon, 1998-2003 Toyota Sienna, 1999-2003 Toyota Solara, 1997-2003 Lexus ES300, and 1999-2003 Lexus RX300 front wheel hub repair.

This part cross-references Timken HA590302K and SKF BR930302K for the same application. The DuraGo 295-18509 part number is also useful when searching for a front wheel hub repair kit for Toyota Camry, Avalon, Sienna, Solara, Lexus ES300, or RX300 service work.

What It Helps Fix

• Front wheel bearing noise or growling from a worn hub assembly
• Excessive wheel play caused by hub or bearing wear
• Vibration or roughness from a damaged front hub service assembly
• Loose or worn wheel mounting surfaces on the front axle
• Service needs on Toyota and Lexus front hub-and-bearing repair applications

Installation Notes and Tips

Verify the vehicle’s front hub dimensions, spline count, stud size, and pilot diameters before installation. This kit is for front applications only and includes the axle nut, wheel bearing, retaining ring, and wheel studs as listed in the product data. The wheel seal is not included, so inspect the existing seal and surrounding components during service. Always follow the vehicle manufacturer’s torque specifications and bearing service procedures.

Quality Assurance

DuraGo has more than 45 years of aftermarket manufacturing experience, and this wheel hub repair kit is built to provide the components needed for a complete hub and bearing service in one part number. The design follows the stated application and dimensional requirements for the listed Toyota and Lexus front wheel hub repairs.
