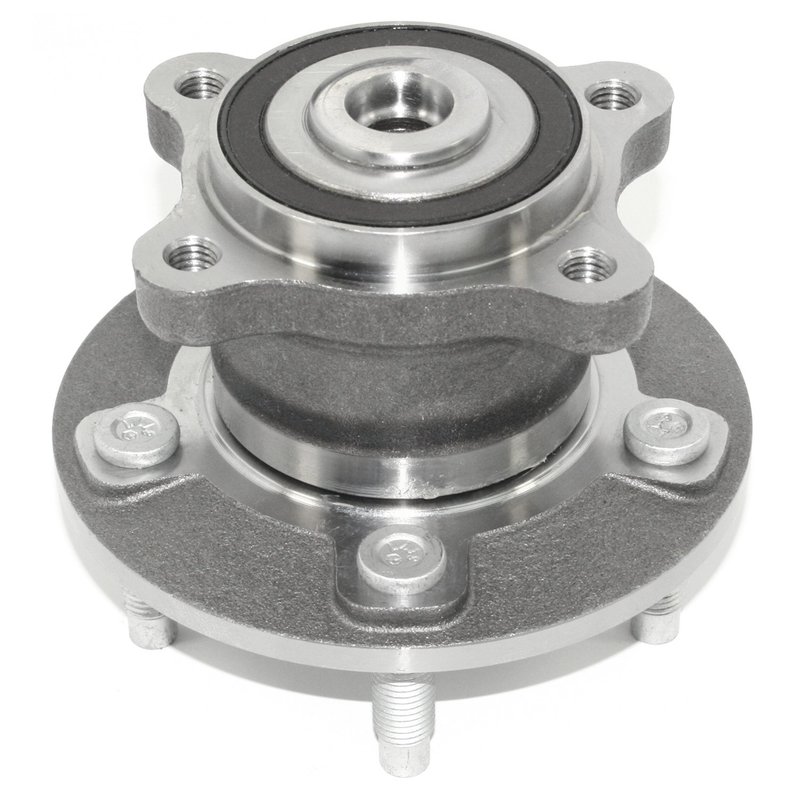

DuraGo 295-94036 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-94036 |
|---|---|
| Position | Rear |
| 143 | 105 |
| 143 | 4.13 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.22 |
| Wheel Pilot Diameter | 56.5 |
| Brake Pilot Diameter | 2.36 |
| Brake Pilot Diameter | 60 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 2.76 |
| Hub Pilot Diameter | 70 |
| Flange Shape | Rectangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Flange Offset | 2.55 |
| Flange Offset | 64.7 |
| Flange Diameter | 136 |
| Flange Diameter | 5.35 |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Flange Bolt Size | M10 x 1.5 |
| Fits | Buick and Chevrolet · 13 vehicles |
100% tested. Each hub assembly is checked to meet strict quality standards.
ABS encoder type. Integrated encoder supports anti-lock braking system operation.
Wheel studs included. Ready for assembly with studs already provided.
DuraGo 295-94036 Rear Hub Assembly
DuraGo 295-94036 is a rear wheel bearing and hub assembly built for select Chevrolet Sonic, Buick Encore, and Chevrolet Trax applications. It combines the hub and bearing into one service unit to help restore smooth wheel rotation, reduce friction, and support consistent driveline performance.
- Rear wheel bearing and hub assembly for select 2012-2017 Chevrolet Sonic, 2013-2016 Buick Encore, and 2013-2015 Chevrolet Trax applications
- Non-driven hub assembly for rear position service
- ABS encoder type included for vehicles equipped with anti-lock braking systems
- Wheel stud size: M12 x 1.5
- Wheel studs included
- Flange bolt hole quantity: 4
- Flange bolt size: M10 x 1.5
- Wheel pilot diameter: 56.5 mm
- Brake pilot diameter: 60 mm
- Hub pilot diameter: 70 mm
- Flange diameter: 136 mm
- Flange offset: 64.7 mm
Fitment Details
Compatible With:
- Fits 2012-2017 Chevrolet Sonic, rear
- Fits 2013-2016 Buick Encore, rear
- Fits 2013-2015 Chevrolet Trax, rear
Why This Hub Assembly Matters
This DuraGo hub assembly is built with quality components and tested to meet the brand’s manufacturing standards. For rear service on the Chevrolet Sonic, Buick Encore, or Chevrolet Trax, part number 295-94036 provides the correct hub geometry, stud pattern, and ABS encoder configuration for the listed applications. This part number 295-94036 is a direct-fit service solution for rear wheel bearing and hub replacement on these vehicles.
- Wheel noise from a worn rear hub bearing
- Excessive play or looseness at the wheel
- ABS warning light caused by a failing encoder-equipped hub
- Uneven wheel rotation or rough bearing feel
- Vibration or humming from the rear wheel area
Installation Notes
Verify rear position fitment by year, make, and model before installation. Confirm the ABS encoder style matches the vehicle’s braking system and inspect the mating surfaces, axle area, and brake components for wear or damage during service. Proper torque procedures should be followed for the flange and wheel fasteners during reassembly.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that each unit is 100% tested before release. The brand also notes compliance with ISO/TS 16949:2002 manufacturing standards.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Chevrolet | Sonic | — | Rear | — |
| 2016 | Buick | Encore | FWD | Rear | — |
| 2016 | Chevrolet | Sonic | — | Rear | — |
| 2015 | Buick | Encore | FWD | Rear | — |
| 2015 | Chevrolet | Sonic | — | Rear | — |
| 2015 | Chevrolet | Trax | FWD | Rear | — |
| 2014 | Buick | Encore | FWD | Rear | — |
| 2014 | Chevrolet | Sonic | — | Rear | — |
| 2014 | Chevrolet | Trax | — | Rear | — |
| 2013 | Buick | Encore | FWD | Rear | — |
| 2013 | Chevrolet | Sonic | — | Rear | — |
| 2013 | Chevrolet | Trax | — | Rear | — |
| 2012 | Chevrolet | Sonic | — | Rear | — |
| No rows match your filter. | |||||
