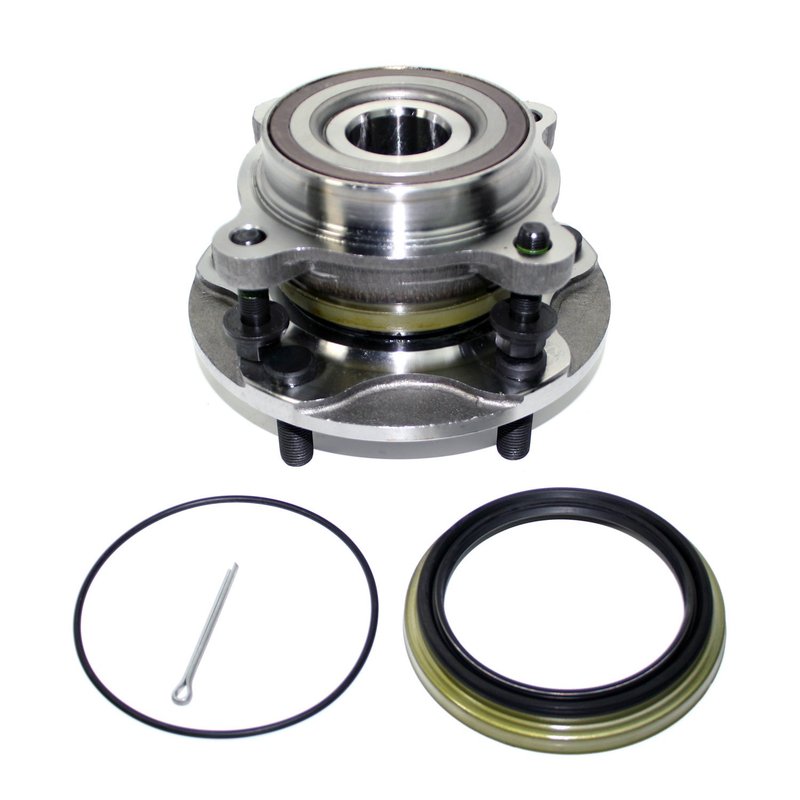

DuraGo 295-94447 Wheel Bearing and Hub Assembly - Front

Overview of DuraGo Wheel Bearing and Hub Assembly 295-94447

The DuraGo 295-94447 wheel bearing and hub assembly is engineered for Toyota Sequoia and Tundra models. Designed as a driven hub assembly, it integrates an anti-lock braking system (ABS) encoder to maintain vehicle safety and performance.

• Compatible with Toyota Sequoia and Tundra vehicles
• Driven type wheel bearing and hub assembly
• Equipped with ABS encoder for anti-lock braking system functionality
• Includes 5 M14 x 1.5 wheel studs
• Flange bolt hole quantity: 4 with 0.5 inch (12.7 mm) diameter
• Flange diameter measures 179.3 mm (7.06 inches)
• Wheel pilot diameter of 110 mm (4.33 inches) and brake pilot diameter of 112 mm (4.41 inches)
• Hub pilot diameter of 112.4 mm (4.43 inches)
• Flange offset of 66.5 mm (2.62 inches)
• 36 spline quantity for secure drivetrain connection

Technical Details and Specifications

This DuraGo wheel bearing and hub assembly (part number 295-94447) is designed with precision to meet the exact specifications required for Toyota Sequoia and Tundra models. The assembly features a rectangular flange shape with four bolt holes, each measuring 0.5 inches in diameter, ensuring a secure fit. The flange diameter of 179.3 mm supports proper wheel alignment and stability. The included wheel studs are sized M14 x 1.5, with a total of five studs to accommodate the wheel mounting requirements.

The hub pilot diameter of 112.4 mm and brake pilot diameter of 112 mm provide accurate centering for brake components and wheels. The 36 spline quantity ensures compatibility with the vehicle’s drivetrain, delivering reliable torque transfer. Additionally, the ABS encoder integrated into the assembly supports the vehicle’s anti-lock braking system, enhancing safety during braking maneuvers.

Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Toyota Sequoia and Tundra
• Restores proper wheel alignment and reduces vibration or noise from the wheel area
• Ensures ABS functionality with the included encoder for safe braking performance
• Addresses issues related to wheel stud damage or corrosion
• Improves drivetrain connection with the 36 spline design for smooth power delivery

Installation Notes and Tips

When installing the DuraGo 295-94447 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify that the flange bolt holes and wheel studs align correctly with the vehicle hub. Proper torque specifications should be followed for flange bolts and wheel studs to maintain safety and performance. The ABS encoder requires careful handling to avoid damage during installation. It is recommended to inspect related components such as brake rotors and suspension parts during replacement.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet OEM standards for fit, form, and function. The part number 295-94447 undergoes rigorous quality control to ensure durability and reliable performance on Toyota Sequoia and Tundra vehicles. While specific warranty details are not provided here, DuraGo products typically come with a limited warranty covering defects in materials and workmanship.
