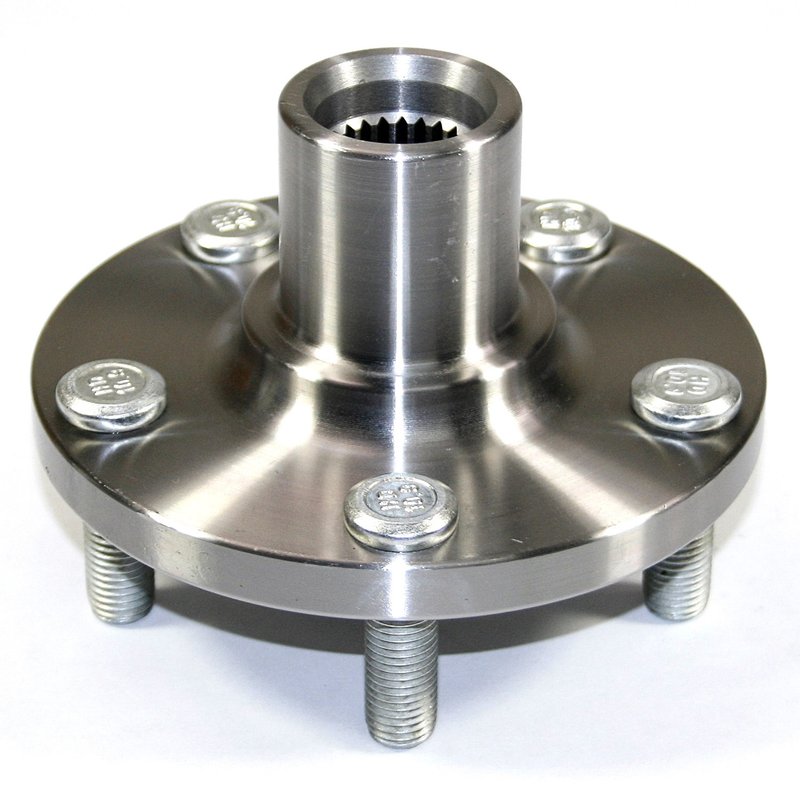

DuraGo 295-95006 Wheel Hub - Front

DuraGo 295-95006 Front Wheel Hub

The DuraGo 295-95006 wheel hub is built for front-end service on select Toyota, Scion, and Pontiac applications. It is manufactured by ISO-certified factories with attention to fit, form, and function for a direct replacement approach on Corolla, Matrix, Celica, tC, and Vibe models.

Key Features

• Front wheel hub for select 2000-2018 applications
• 26-spline design
• 5 wheel studs with M12 x 1.5 stud size
• Wheel pilot diameter: 54 mm (2.13 in.)
• Brake pilot diameter: 55 mm (2.17 in.)
• Hub pilot diameter: 40 mm (1.57 in.)
• Flange diameter: 125 mm (4.92 in.)
• Height: 75.5 mm (2.97 in.)
• Wheel studs included
• Cross-reference part number: 930406

Detailed Description

DuraGo 295-95006 is a front wheel hub engineered for vehicles that need a precise hub-to-knuckle and wheel-mounting interface. The dimensional specs, including the 26-spline configuration, 5-stud pattern, and matched pilot diameters, support proper wheel location and brake component alignment on applications such as 2003-2018 Toyota Corolla, 2003-2008 Toyota Matrix, 2000-2005 Toyota Celica, 2005-2010 Scion tC, and 2003-2008 Pontiac Vibe. This part number, 295-95006, is a practical OE-style replacement choice when servicing front wheel hub wear on these platforms.

What It Helps Address

• Front wheel bearing noise related to hub wear
• Wheel looseness or play at the hub assembly
• Uneven wheel mounting caused by damaged hub surfaces
• Brake rotor centering issues tied to pilot diameter mismatch
• Service replacement needs on Corolla, Matrix, Celica, tC, and Vibe front hubs

Installation Notes

Verify spline count, pilot diameters, flange diameter, and stud size before installation. Confirm front-position application and compare the existing hub to the listed dimensions for 2003-2018 Toyota Corolla, 2003-2008 Toyota Matrix, 2000-2005 Toyota Celica, 2005-2010 Scion tC, and 2003-2008 Pontiac Vibe. Proper torque procedures and clean mating surfaces are important for correct hub seating and wheel retention.

Quality Assurance

DuraGo has more than 45 years of aftermarket manufacturing experience, and this wheel hub is produced in ISO-certified factories to meet fit, form, and function requirements. The brand positions its wheel hub program for professional repair use, with a focus on dimensional accuracy and reliability.
