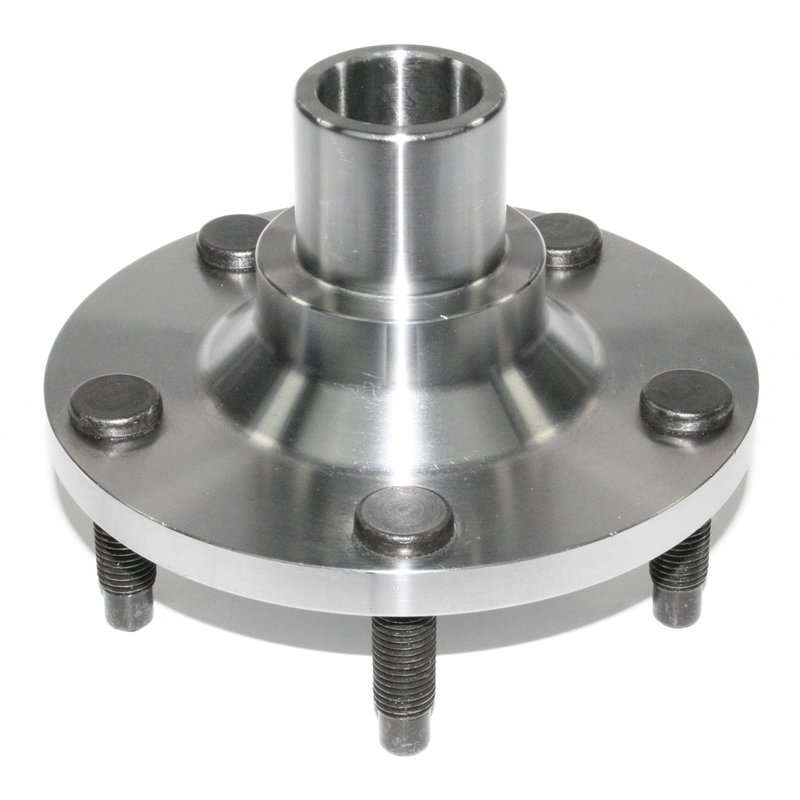

DuraGo 295-95093 Wheel Hub - Rear
| Brand | DuraGo 295-95093 |
|---|---|
| Position | Rear |
| Spline Quantity | 26 |
| 143 | 114.3 |
| 143 | 4.5 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.64 |
| Wheel Pilot Diameter | 67 |
| Brake Pilot Diameter | 2.83 |
| Brake Pilot Diameter | 72 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 1.57 |
| Hub Pilot Diameter | 40 |
| Flange Diameter | 140 |
| Flange Diameter | 5.51 |
| Height | 3.28 |
| Height | 83.3 |
| Fits | Ford and Mercury · 28 vehicles |
OE-style fit. Manufactured to meet fit, form, and function requirements.
Wheel studs included. Ready for a more complete hub replacement.
Professional-grade hub. Built by ISO-certified factories with attention to detail.
Cross-references 930108 for the same application. See all 1.
DuraGo Rear Wheel Hub for Escape and Mariner
The DuraGo 295-95093 wheel hub is built for rear axle service on select Ford Escape and Mercury Mariner applications. It is engineered to match fit, form, and function requirements for a direct replacement wheel hub, with dimensions and stud specifications that support proper wheel mounting and hub alignment.
- Rear wheel hub for 2001-2012 Ford Escape and 2005-2011 Mercury Mariner
- 26-spline hub design
- 5 wheel studs with M12 x 1.5 stud size
- Wheel pilot diameter: 67 mm (2.64 in.)
- Brake pilot diameter: 72 mm (2.83 in.)
- Hub pilot diameter: 40 mm (1.57 in.)
- Flange diameter: 140 mm (5.51 in.)
- Height: 83.3 mm (3.28 in.)
- Interchange reference: 930108
Detailed Product Overview
DuraGo 295-95093 is a rear wheel hub assembly for Ford Escape and Mercury Mariner models listed in the fitment data. The hub is manufactured by ISO certified factories and built to meet the dimensional requirements needed for proper wheel and brake interface. Key measurements such as the wheel pilot diameter, brake pilot diameter, hub pilot diameter, flange diameter, spline count, and stud size help ensure the replacement matches the original application. This part cross-references 930108 for the same application.
What This Wheel Hub Helps Address
- Rear wheel bearing or hub noise on a Ford Escape or Mercury Mariner
- Wheel looseness or play at the rear hub area
- Uneven wheel mounting caused by worn hub surfaces
- ABS or driveline-related concerns tied to hub wear, when the hub is the source
- Service replacement for a damaged rear wheel hub on compatible Escape and Mariner models
Installation Notes and Tips
Verify rear fitment by year and model before installation. Confirm spline count, stud size, and pilot diameters against the removed part to ensure correct application. Clean the mounting surfaces thoroughly and inspect related brake and suspension components during hub replacement. For best results, follow the vehicle service manual for torque specifications and installation procedure.
Quality Assurance
DuraGo has more than 45 years of aftermarket manufacturing experience, and its wheel hub program is built with attention to detail and reliability in mind. The brand states that its products are produced in ISO certified factories to meet fit, form, and function requirements.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2012 | Ford | Escape | 4WD | Rear | — |
| 2011 | Ford | Escape | 4WD | Rear | — |
| 2011 | Mercury | Mariner | 4WD | Rear | — |
| 2010 | Ford | Escape | 4WD | Rear | — |
| 2010 | Mercury | Mariner | AWD | Rear | — |
| 2010 | Mercury | Mariner | 4WD | Rear | — |
| 2009 | Ford | Escape | 4WD | Rear | — |
| 2009 | Mercury | Mariner | AWD | Rear | — |
| 2009 | Mercury | Mariner | 4WD | Rear | — |
| 2008 | Ford | Escape | 4WD | Rear | — |
| 2008 | Mercury | Mariner | AWD | Rear | — |
| 2008 | Mercury | Mariner | 4WD | Rear | — |
| 2007 | Ford | Escape | AWD | Rear | — |
| 2007 | Ford | Escape | 4WD | Rear | — |
| 2007 | Mercury | Mariner | AWD | Rear | — |
| 2007 | Mercury | Mariner | 4WD | Rear | — |
| 2006 | Ford | Escape | AWD | Rear | — |
| 2006 | Ford | Escape | 4WD | Rear | — |
| 2006 | Mercury | Mariner | AWD | Rear | — |
| 2006 | Mercury | Mariner | 4WD | Rear | — |
| 2005 | Ford | Escape | AWD | Rear | — |
| 2005 | Ford | Escape | 4WD | Rear | — |
| 2005 | Mercury | Mariner | AWD | Rear | — |
| 2005 | Mercury | Mariner | 4WD | Rear | — |
| 2004 | Ford | Escape | 4WD | Rear | — |
| 2003 | Ford | Escape | 4WD | Rear | — |
| 2002 | Ford | Escape | 4WD | Rear | — |
| 2001 | Ford | Escape | 4WD | Rear | — |
| No rows match your filter. | |||||
