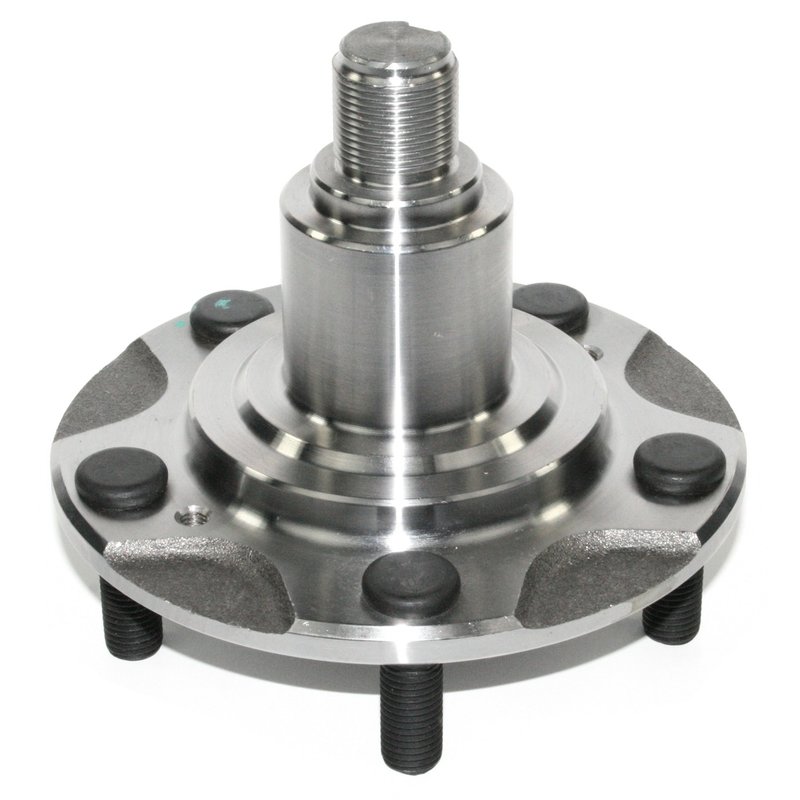

DuraGo 295-95096 Wheel Hub - Front
| Brand | DuraGo 295-95096 |
|---|---|
| Position | Front |
| 143 | 114.3 |
| 143 | 4.5 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.76 |
| Wheel Pilot Diameter | 70 |
| Brake Pilot Diameter | 2.76 |
| Brake Pilot Diameter | 70 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 1.77 |
| Hub Pilot Diameter | 45 |
| Flange Diameter | 139.4 |
| Flange Diameter | 5.49 |
| Height | 104.8 |
| Height | 4.13 |
| Fits | Honda · 10 vehicles |
OE fit, form, function. Manufactured to meet professional replacement standards.
Wheel studs included. Ready for a complete hub installation.
ISO-certified production. Built in factories focused on consistent reliability.
Cross-references 930009 for the same application. See all 1.
DuraGo Wheel Hub for Honda S2000 Front
The DuraGo 295-95096 wheel hub is built for front axle service on the Honda S2000 from 2000-2009. It is engineered to match fit, form, and function requirements for a direct replacement on this application.
Key Features
- Front wheel hub for 2000-2009 Honda S2000
- 5 wheel studs with M12 x 1.5 stud size
- Wheel pilot diameter: 70 mm (2.76 in.)
- Brake pilot diameter: 70 mm (2.76 in.)
- Hub pilot diameter: 45 mm (1.77 in.)
- Flange diameter: 139.4 mm (5.49 in.)
- Height: 104.8 mm (4.13 in.)
- Manufactured by ISO-certified factories
- Interchange reference: 930009
Detailed Description
DuraGo 295-95096 is a front wheel hub assembly for the Honda S2000, covering model years 2000 through 2009. DuraGo has over 45 years of aftermarket manufacturing experience, and this hub is produced to meet fit, form, and function requirements for dependable service. The hub uses a 5-stud pattern with M12 x 1.5 wheel studs and the listed pilot and flange dimensions to support proper wheel and brake interface on the front of the vehicle. This part cross-references 930009 for the same application.
What This Part Helps Address
- Front wheel bearing noise related to hub wear
- Wheel looseness or play at the front axle
- Vibration caused by a worn hub interface
- Improper wheel seating from damaged pilot surfaces
- Brake rotor fitment issues tied to hub dimensions
Installation Notes and Tips
Verify the front position and confirm all hub dimensions against the removed part before installation. Inspect the mating surfaces, wheel studs, and brake components for wear or damage during service. For a Honda S2000 front hub replacement, follow factory torque specifications and use proper bearing and hub service procedures.
Quality Assurance
DuraGo manufactures this wheel hub in ISO-certified factories and backs its product line with a focus on consistent fit and reliable performance. The brand’s aftermarket wheel hub program is built for professional repair use on applications such as the Honda S2000.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Honda | S2000 | Front | — |
| 2008 | Honda | S2000 | Front | — |
| 2007 | Honda | S2000 | Front | — |
| 2006 | Honda | S2000 | Front | — |
| 2005 | Honda | S2000 | Front | — |
| 2004 | Honda | S2000 | Front | — |
| 2003 | Honda | S2000 | Front | — |
| 2002 | Honda | S2000 | Front | — |
| 2001 | Honda | S2000 | Front | — |
| 2000 | Honda | S2000 | Front | — |
