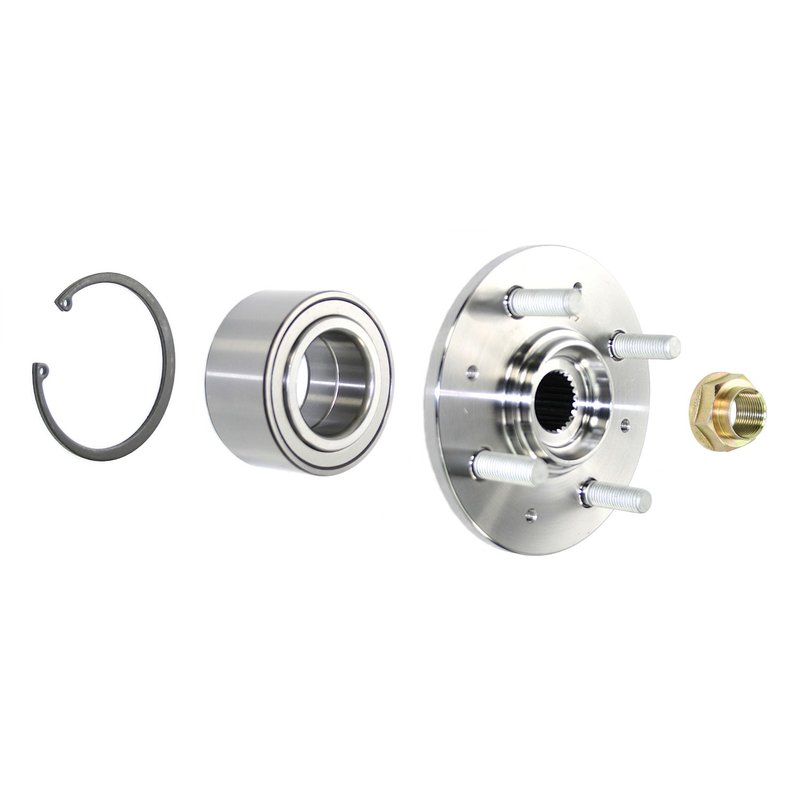

DuraGo 295-96063 Wheel Hub Repair Kit - Front
| Brand | DuraGo 295-96063 |
|---|---|
| Position | Front |
| 143 | 100 |
| 143 | 3.94 |
| Hub Pilot Diameter | 1.69 |
| Hub Pilot Diameter | 43 |
| Hub Spline Quantity | 26 |
| Axle Nut Included | Yes |
| Brake Pilot Diameter | 2.52 |
| Brake Pilot Diameter | 64 |
| Flange Diameter | 139 |
| Flange Diameter | 5.47 |
| Height | 2.62 |
| Height | 66.5 |
| Wheel Bearing Included | Yes |
| Wheel Bearing Retaining Ring Included | Yes |
| Wheel Pilot Diameter | 2.2 |
| Wheel Pilot Diameter | 56 |
| Wheel Seal Included | No |
| Wheel Stud Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Studs Included | Yes |
| Fits | Acura and Honda · 25 vehicles |
Complete repair kit. Includes the components needed to restore the wheel hub and bearing to optimum condition.
Wheel bearing included. Convenient single-part ordering simplifies a complete repair.
Wheel studs included. Supplies the hardware needed for a full hub service.
Cross-references SKF BR930588K for the same application. See all 1.
DuraGo Wheel Hub Repair Kit for Civic and Integra
DuraGo Part Number 295-96063 is a front wheel hub repair kit for select Honda Civic and Acura Integra applications. It provides the core components needed to restore a non-integral wheel hub and bearing assembly to proper operating condition.
Key Features
- Front wheel hub repair kit for 1992-2000 Honda Civic and 1994-2001 Acura Integra
- Includes hub, wheel bearing, retaining ring, axle nut, and wheel studs
- Hub pilot diameter: 1.69 in. / 43 mm
- Brake pilot diameter: 2.52 in. / 64 mm
- Wheel pilot diameter: 2.2 in. / 56 mm
- Flange diameter: 5.47 in. / 139 mm
- Height: 2.62 in. / 66.5 mm
- 26 spline hub design with M12 x 1.5 wheel studs
Detailed Description
DuraGo 295-96063 is engineered as a complete repair solution for front wheel hub and bearing service on Honda Civic and Acura Integra models with non-integral hub construction. The kit brings together the hub, bearing, retaining ring, axle nut, and wheel studs in one part number, simplifying ordering for a front-end repair. This part cross-references SKF BR930588K for the same application.
Use DuraGo Part Number 295-96063 when servicing a worn or noisy front hub assembly on 1992-2000 Honda Civic or 1994-2001 Acura Integra vehicles. The dimensions and spline count help match the original hub interface, while the included bearing and retaining ring support a complete hub restoration.
What This Repair Kit Helps Address
- Front wheel bearing noise or rough rotation
- Hub play or looseness at the wheel end
- Damaged hub splines or worn wheel mounting surfaces
- Failed retaining ring or axle nut during hub service
- Restoration of a front hub assembly after wear-related damage
Installation Notes and Tips
Confirm vehicle year, make, model, and front position before ordering. Verify hub pilot diameter, brake pilot diameter, wheel pilot diameter, spline count, and wheel stud size against the original assembly. Inspect the mating surfaces, axle splines, and knuckle condition during service, and follow the vehicle manufacturer’s torque specifications for final assembly.
Quality Assurance
DuraGo has more than 45 years of aftermarket manufacturing experience and builds wheel hub repair kits as a single-source solution for hub and bearing restoration. The 295-96063 kit is packaged to support a complete front hub repair for the listed Honda Civic and Acura Integra applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2001 | Acura | Integra | — | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2000 | Acura | Integra | — | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2000 | Honda | Civic | EX | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2000 | Honda | Civic | Si | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1999 | Acura | Integra | — | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1999 | Honda | Civic | EX | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1999 | Honda | Civic | Si | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1998 | Acura | Integra | — | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1998 | Honda | Civic | EX | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1998 | Honda | Civic | Si | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1997 | Acura | Integra | — | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1997 | Honda | Civic | EX | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1997 | Honda | Civic | Si | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1996 | Acura | Integra | — | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1996 | Honda | Civic | EX | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1996 | Honda | Civic | Si | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1995 | Acura | Integra | — | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1995 | Honda | Civic | EX | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1995 | Honda | Civic | Si | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1994 | Acura | Integra | — | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1994 | Honda | Civic | LX | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1994 | Honda | Civic | EX | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1994 | Honda | Civic | Si | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1993 | Honda | Civic | — | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 1992 | Honda | Civic | — | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
