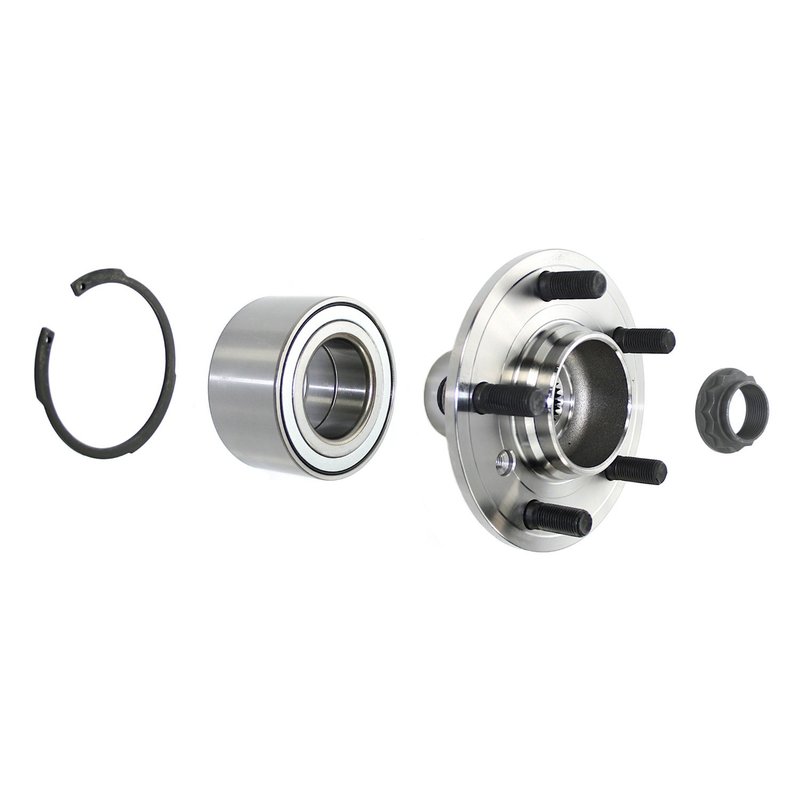

DuraGo 295-96117 Wheel Hub Repair Kit - Front or Rear
| Brand | DuraGo 295-96117 |
|---|---|
| Position | Front and Rear |
| 143 | 120 |
| 143 | 4.72 |
| Hub Pilot Diameter | 2.01 |
| Hub Pilot Diameter | 51 |
| Hub Spline Quantity | 30 |
| Axle Nut Included | Yes |
| Brake Pilot Diameter | 3.11 |
| Brake Pilot Diameter | 79 |
| Flange Diameter | 156 |
| Flange Diameter | 6.14 |
| Height | 3.82 |
| Height | 97 |
| Wheel Bearing Included | Yes |
| Wheel Bearing Retaining Ring Included | No |
| Wheel Pilot Diameter | 2.85 |
| Wheel Pilot Diameter | 72.5 |
| Wheel Seal Included | No |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | M14 x 1.5 |
| Wheel Studs Included | Yes |
| Fits | Land Rover · 14 vehicles |
Complete repair kit. Includes the core components needed for non-integral wheel hub and bearing service.
Service-ready design. 30-spline hub with 5-stud wheel mounting and axle nut included.
Measured fitment. 2.01 in. hub pilot and 6.14 in. flange dimensions for accurate matching.
Wheel Hub Repair Kit Overview
DuraGo Wheel Hub Repair Kit 295-96117 is built for non-integral wheel hub and bearing repair. It provides the components needed to restore hub and bearing condition with the convenience of ordering one part number.
Key Features
- Complete repair solution for non-integral wheel hub and bearing service
- Includes a wheel bearing, axle nut, and wheel studs
- 30-spline hub design with a 5-stud pattern
- Hub pilot diameter: 2.01 in. (51 mm)
- Wheel pilot diameter: 2.85 in. (72.5 mm)
- Flange diameter: 6.14 in. (156 mm)
- Height: 3.82 in. (97 mm)
Detailed Description
This DuraGo wheel hub repair kit is engineered as a total solution for restoring wheel hub and bearing function on serviceable assemblies. Part number 295-96117 is specified for 2003-2009 Land Rover Range Rover applications in both front and rear positions, making it a direct fitment reference for Range Rover hub and bearing repair work. The kit format simplifies ordering by combining the required service components under one part number.
DuraGo has more than 45 years of aftermarket manufacturing history, and this product reflects that service-focused approach. For technicians working on Land Rover Range Rover hub service, 295-96117 provides the core parts needed to return the assembly to proper operating condition without piecing together separate components.
What It Is Used For
- Replacing worn wheel hub and bearing components
- Addressing hub play or looseness
- Correcting bearing noise from a serviceable hub assembly
- Restoring proper wheel mounting and retention
- Servicing damaged or worn studs and axle nut hardware
Installation Notes and Tips
Fits 2003-2009 Land Rover Range Rover, front. Fits 2003-2009 Land Rover Range Rover, rear. Verify spline count, pilot diameters, and flange dimensions before installation. Confirm the existing hub is a non-integral design and compare the removed assembly to part number 295-96117 before assembly.
Quality Assurance
DuraGo draws on more than 45 years in aftermarket automotive manufacturing and supplies repair kits engineered to restore wheel hub and bearing assemblies to proper condition.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Land Rover | Range Rover | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2009 | Land Rover | Range Rover | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2008 | Land Rover | Range Rover | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2008 | Land Rover | Range Rover | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2007 | Land Rover | Range Rover | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2007 | Land Rover | Range Rover | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2006 | Land Rover | Range Rover | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2006 | Land Rover | Range Rover | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2005 | Land Rover | Range Rover | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2005 | Land Rover | Range Rover | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2004 | Land Rover | Range Rover | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2004 | Land Rover | Range Rover | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2003 | Land Rover | Range Rover | Front | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2003 | Land Rover | Range Rover | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
