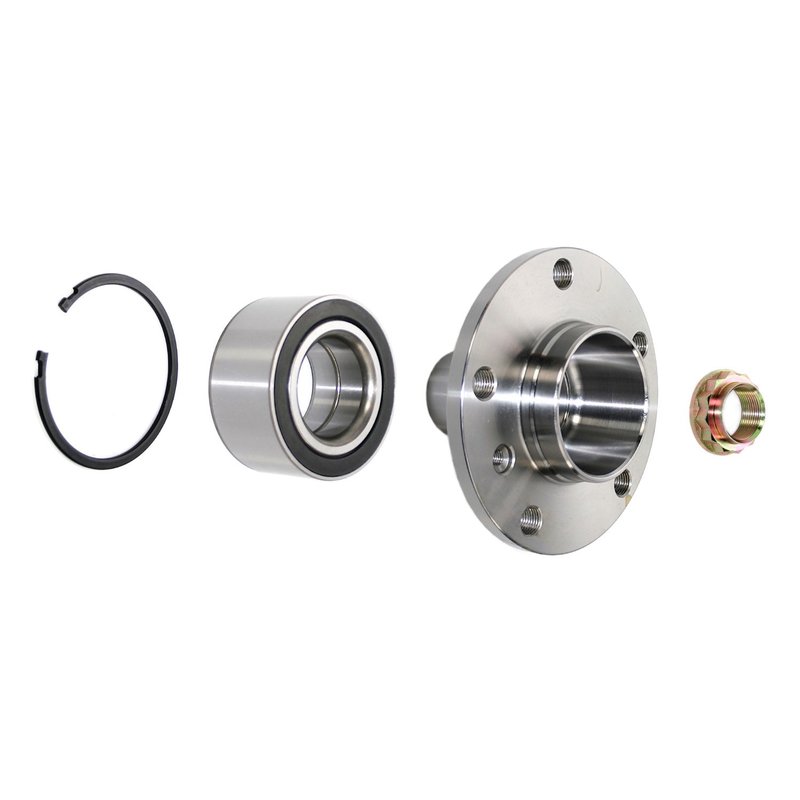

DuraGo 295-96126 Wheel Hub Repair Kit - Rear
| Brand | DuraGo 295-96126 |
|---|---|
| Position | Rear |
| 143 | 120 |
| 143 | 4.72 |
| Hub Pilot Diameter | 1.77 |
| Hub Pilot Diameter | 45 |
| Hub Spline Quantity | 30 |
| Axle Nut Included | Yes |
| Brake Pilot Diameter | 2.95 |
| Brake Pilot Diameter | 75 |
| Flange Diameter | 145 |
| Flange Diameter | 5.71 |
| Height | 3.82 |
| Height | 97 |
| Wheel Bearing Included | Yes |
| Wheel Bearing Retaining Ring Included | Yes |
| Wheel Pilot Diameter | 2.85 |
| Wheel Pilot Diameter | 72.5 |
| Wheel Seal Included | No |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | M14 x 1.5 |
| Wheel Studs Included | No |
| Fits | BMW · 7 vehicles |
Complete repair kit. Includes the components needed to restore hub and bearing condition.
Wheel bearing included. Convenient single-part ordering for a complete repair.
Axle nut included. Simplifies service with the necessary hardware in one kit.
DuraGo Wheel Hub Repair Kit for BMW X3
DuraGo Part Number 295-96126 is a rear wheel hub repair kit built for 2004-2010 BMW X3 applications. It provides the core components needed to restore wheel hub and bearing service on non-integral assemblies, with fitment focused on the rear position for BMW X3 models.
Key Features
- Rear wheel hub repair kit for 2004-2010 BMW X3
- Includes hub, wheel bearing, retaining ring, and axle nut
- Hub pilot diameter: 45 mm (1.77 in.)
- Brake pilot diameter: 75 mm (2.95 in.)
- Wheel pilot diameter: 72.5 mm (2.85 in.)
- Flange diameter: 145 mm (5.71 in.)
- Height: 97 mm (3.82 in.)
- 30-spline hub design
- 5-wheel-stud configuration with M14 x 1.5 stud size
Detailed Description
DuraGo 295-96126 is engineered as a complete repair solution for rear wheel hub and bearing service on the BMW X3. By combining the hub, bearing, retaining ring, and axle nut in one part number, this kit simplifies ordering and helps restore proper wheel-end operation on the specified rear application. The dimensions and spline count are listed to support accurate matching during service work on 2004-2010 BMW X3 vehicles.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Solve
- Wheel-end noise from a worn rear bearing
- Excessive play or looseness at the hub assembly
- Vibration related to hub or bearing wear
- Service issues on rear BMW X3 wheel hub assemblies
- Replacement needs when the hub and bearing require a matched repair
Installation Notes and Tips
Compatible With 2004-2010 BMW X3, rear. Verify hub pilot, brake pilot, wheel pilot, spline count, and stud specifications against the removed part before installation. This kit contains the hub, bearing, retaining ring, and axle nut; wheel seal, wheel studs, and wheel studs included are not listed for this part.
Quality Assurance
DuraGo has more than 45 years of aftermarket manufacturing experience, and its wheel hub repair kits are built to provide the components needed for a complete wheel hub and bearing repair in a single order. Part Number 295-96126 follows that service-focused approach for BMW X3 rear applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | BMW | X3 | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2009 | BMW | X3 | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2008 | BMW | X3 | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2007 | BMW | X3 | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2006 | BMW | X3 | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2005 | BMW | X3 | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2004 | BMW | X3 | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
