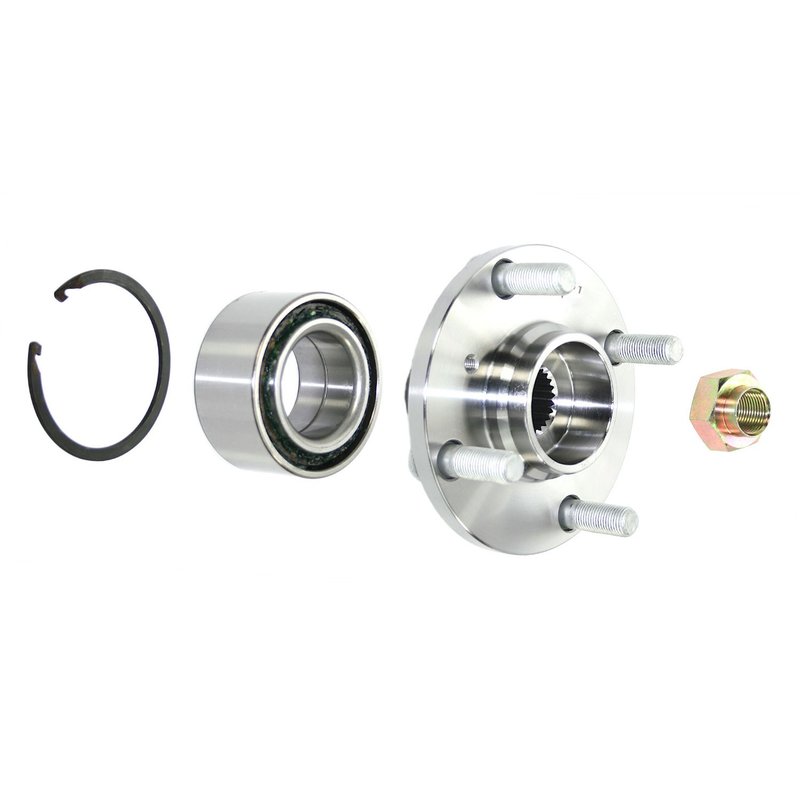

DuraGo 295-96135 Wheel Hub Repair Kit - Front
| Brand | DuraGo 295-96135 |
|---|---|
| Position | Front |
| 143 | 100 |
| 143 | 3.94 |
| Hub Pilot Diameter | 1.57 |
| Hub Pilot Diameter | 40 |
| Hub Spline Quantity | 25 |
| Axle Nut Included | Yes |
| Brake Pilot Diameter | 2.36 |
| Brake Pilot Diameter | 60 |
| Flange Diameter | 120 |
| Flange Diameter | 4.72 |
| Height | 2.85 |
| Height | 72.5 |
| Wheel Bearing Included | Yes |
| Wheel Bearing Retaining Ring Included | Yes |
| Wheel Pilot Diameter | 2.13 |
| Wheel Pilot Diameter | 54 |
| Wheel Seal Included | No |
| Wheel Stud Quantity | 4 |
| Wheel Stud Size | M12 x 1.25 |
| Wheel Studs Included | Yes |
| Fits | — |
Complete repair kit. Includes the components needed to restore the hub and bearing to optimum condition.
Wheel bearing included. Supplied for a more complete service solution in one part number.
Axle nut included. Conveniently packaged with the hardware needed for the repair.
Wheel Hub Repair Kit for Driveline Service
DuraGo Wheel Hub Repair Kit Part Number 295-96135 provides the components needed to restore a non-integral wheel hub and bearing assembly to proper operating condition. Built for service work on applications such as Honda Civic and similar vehicle platforms, this kit simplifies ordering by consolidating the required repair parts under one part number.
Key Features
- Wheel hub repair kit for non-integral hub and bearing service
- Includes wheel bearing, wheel bearing retaining ring, axle nut, and wheel studs
- Hub pilot diameter: 40 mm (1.57 in.)
- Brake pilot diameter: 60 mm (2.36 in.)
- Wheel pilot diameter: 54 mm (2.13 in.)
- Flange diameter: 120 mm (4.72 in.)
- Height: 72.5 mm (2.85 in.)
- Wheel stud size: M12 x 1.25 with 4 wheel studs
- Hub spline quantity: 25
Detailed Description
DuraGo 295-96135 is engineered as a complete wheel hub repair solution for service technicians replacing worn hub and bearing components on select driveline applications. The kit is built around the hub dimensions and mounting details needed for accurate replacement, including a 25-spline hub, 4-stud wheel pattern, and the specified pilot and flange measurements. For Honda Civic wheel hub repair and related axle service, this part number helps streamline the repair process while keeping the component selection focused on the application requirements.
DuraGo has more than 45 years of aftermarket manufacturing experience, and this wheel hub repair kit reflects that focus on practical service parts for driveline and axle repair. Part Number 295-96135 is a direct-fit style repair kit for non-integral wheel hub and bearing service where the hub, bearing, retaining ring, axle nut, and studs are addressed together.
What It Helps Fix
- Wheel bearing noise or rough rotation
- Excessive play in the hub assembly
- Damaged or worn wheel studs
- Hub service issues after bearing wear
- Axle nut replacement during hub repair
Installation Notes and Tips
Verify hub pilot diameter, brake pilot diameter, wheel pilot diameter, flange diameter, spline count, and stud size before installation. This kit includes a wheel bearing, wheel bearing retaining ring, axle nut, and wheel studs; wheel seal is not included. Use proper press tools and follow the vehicle service procedure for bearing and hub removal and installation. Confirm the application against the vehicle’s original hub specifications before final assembly.
Quality Assurance
DuraGo manufactures aftermarket automotive service parts with a long-standing focus on driveline and axle repair. Part Number 295-96135 is built to restore wheel hub and bearing function using the specified repair components and dimensions for the application.
