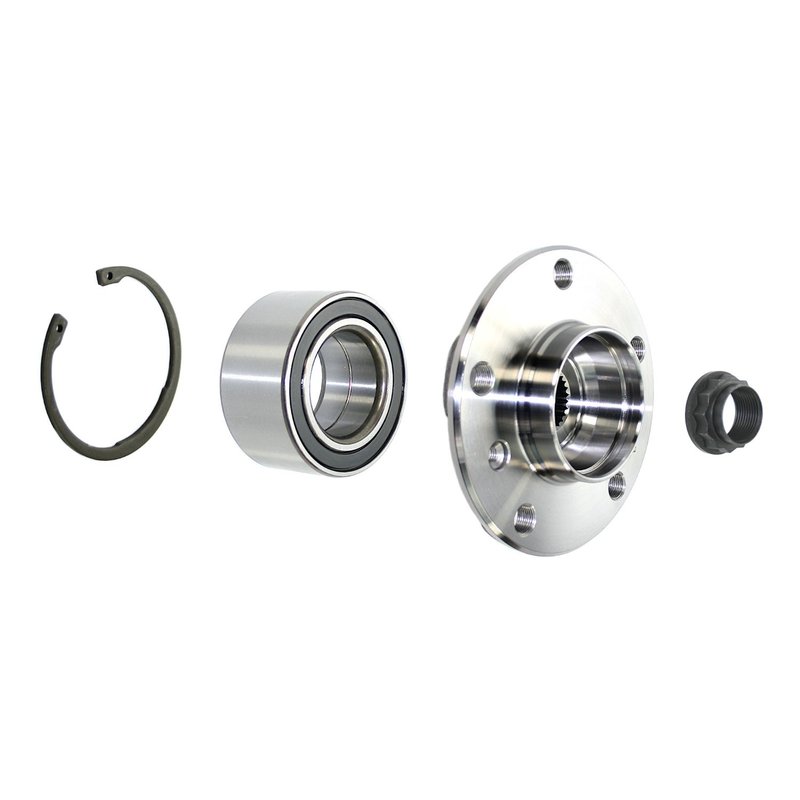

DuraGo 295-96156 Wheel Hub Repair Kit - Rear
| Brand | DuraGo 295-96156 |
|---|---|
| Position | Rear |
| 143 | 120 |
| 143 | 4.72 |
| Hub Pilot Diameter | 1.65 |
| Hub Pilot Diameter | 42 |
| Hub Spline Quantity | 28 |
| Axle Nut Included | Yes |
| Brake Pilot Diameter | 2.95 |
| Brake Pilot Diameter | 75 |
| Flange Diameter | 147 |
| Flange Diameter | 5.79 |
| Height | 3.28 |
| Height | 83.3 |
| Wheel Bearing Included | Yes |
| Wheel Bearing Retaining Ring Included | Yes |
| Wheel Pilot Diameter | 2.85 |
| Wheel Pilot Diameter | 72.5 |
| Wheel Seal Included | No |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | M14 x 1.25 |
| Wheel Studs Included | No |
| Fits | BMW · 10 vehicles |
Complete repair kit. Includes the components needed to restore the wheel hub and bearing.
Wheel bearing included. Supplies the bearing for a more complete repair in one part number.
Axle nut included. Adds a key fastening component for a simpler service job.
DuraGo Wheel Hub Repair Kit for Rear BMW Applications
The DuraGo 295-96156 wheel hub repair kit provides a complete repair solution for non-integral rear wheel hub and bearing service. It is built for select BMW rear applications and includes the core components needed to restore hub and bearing function with a single part number.
- Wheel hub repair kit for rear service
- Includes hub, bearing, retaining ring, and axle nut
- Hub pilot diameter: 42 mm (1.65 in.)
- Brake pilot diameter: 75 mm (2.95 in.)
- Wheel pilot diameter: 72.5 mm (2.85 in.)
- Flange diameter: 147 mm (5.79 in.)
- Height: 83.3 mm (3.28 in.)
- Hub spline quantity: 28
- Wheel stud quantity: 5
- Wheel stud size: M14 x 1.25
Fitment Details
Compatible with rear BMW applications including 2014-2015 BMW 228i, 2013-2015 BMW 320i, 2014-2015 BMW 328d, 2014-2015 BMW M235i, and 2015 BMW M235i xDrive. This part number, 295-96156, is matched to the rear hub and bearing service needs of these vehicles.
What This Repair Kit Helps Address
- Rear wheel bearing noise or roughness
- Excessive play at the wheel hub
- Hub wear affecting wheel rotation
- Damaged retaining ring or axle nut during hub service
- Restoration of rear hub and bearing assembly condition
Installation Notes and Tips
Verify rear axle and hub dimensions before installation, especially spline count, pilot diameters, flange diameter, and wheel stud size. This kit is for non-integral wheel hub and bearing repair, so confirm the vehicle uses the correct rear hub service configuration before ordering. The part number 295-96156 should be matched to the exact BMW application listed above.
Quality Assurance
DuraGo has more than 45 years of aftermarket manufacturing experience and develops wheel hub repair kits as complete service solutions for restoring hub and bearing assemblies. This kit is engineered to consolidate the required repair components into one service part for the listed BMW rear applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | BMW | 228i | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2015 | BMW | 320i | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2015 | BMW | 328d | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2015 | BMW | M235i | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2015 | BMW | M235i xDrive | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2014 | BMW | 228i | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2014 | BMW | 320i | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2014 | BMW | 328d | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2014 | BMW | M235i | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
| 2013 | BMW | 320i | Rear | This Kit Contains: Hub, Bearing, Retaining Ring, and Axle Nut |
