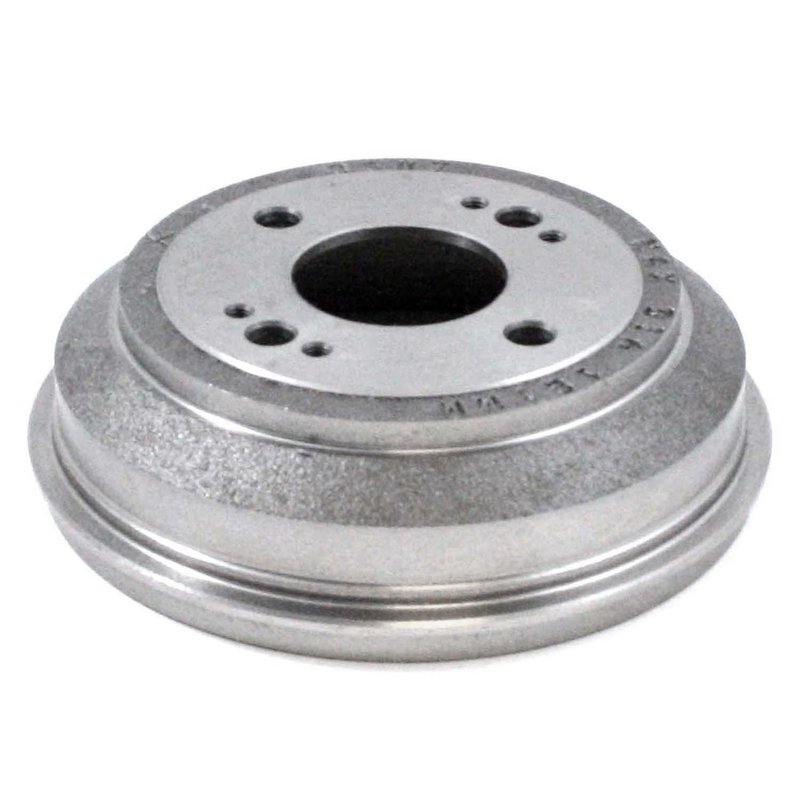

DuraGo BD3507 Brake Drum - Rear
| Brand | DuraGo BD3507 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Bolt Circle Diameter | 3.94 |
| Bolt Circle Diameter | 100 |
| Bolt Hole Diameter | 0.5 |
| Bolt Hole Diameter | 12.8 |
| Bolt Hole Quantity | 4 |
| Brake Surface Width | 1.53 |
| Brake Surface Width | 38.8 |
| Center Hole Diameter | 2.4 |
| Center Hole Diameter | 61 |
| Construction | Full Cast |
| Material | Cast Iron |
| Maximum Brake Diameter (Discard) | 7.13 |
| Maximum Brake Diameter (Discard) | 181 |
| Nominal Drum Diameter | 7.09 |
| Nominal Drum Diameter | 180 |
| Outer Cooling Fins | No |
| Outside Diameter | 8.54 |
| Outside Diameter | 217 |
| Overall Height | 2.42 |
| Overall Height | 61.5 |
| Rust Resistant Coating | No |
| Fits | Honda · 48 vehicles |
Full cast construction. Delivers solid, dependable braking performance.
Cast iron material. Provides durable strength for everyday use.
ISO-certified manufacturing. Built to meet fit, form, and function requirements.
Cross-references Anchor 3507, Anchor 9506 and Continental 60764 for the same application. See all 12.
DuraGo BD3507 Rear Brake Drum
The DuraGo BD3507 is a cast iron rear brake drum built for specific Honda applications, including Civic, Civic del Sol, and CRX models. It is manufactured to support proper fit, form, and function for rear drum brake service on select 1984-1997 vehicles.
Key Features
- Cast iron construction for durable brake service
- Full cast drum design
- Nominal drum diameter: 180 mm (7.09 in.)
- Maximum brake diameter discard: 181 mm (7.13 in.)
- Outside diameter: 217 mm (8.54 in.)
- Bolt hole quantity: 4 with 100 mm (3.94 in.) bolt circle diameter
- Brake surface width: 38.8 mm (1.53 in.)
- Center hole diameter: 61 mm (2.4 in.)
- Overall height: 61.5 mm (2.42 in.)
- Fits rear drum brake applications on select Honda Civic, Civic del Sol, and CRX models
Detailed Description
DuraGo BD3507 is a rear brake drum engineered for select Honda compact cars and coupes that use a 4-lug rear drum setup. The cast iron, full cast construction supports stable braking performance, while the listed dimensions help confirm proper rotor-to-hub and shoe contact geometry during brake service. This part number BD3507 is a direct-fit style replacement for applications such as 1984-1995 Honda Civic rear, 1988-1991 Honda CRX rear, and 1993-1997 Honda Civic del Sol rear.
DuraGo has a long history in aftermarket brake manufacturing, and its brake drum and rotor program is built for catalog accuracy and consistent application coverage. The company states its products are produced in ISO-certified factories to meet fit, form, and function requirements. This part cross-references Anchor 3507 and Continental 60764 for the same application.
Common Uses
- Rear brake drum replacement for worn or out-of-spec Honda Civic drums
- Service repair for rear brake pulsation or uneven shoe contact
- Replacement for drums that exceed maximum brake diameter discard limits
- Restoration of rear drum brake function on Honda CRX and Civic del Sol models
- Correction of braking noise caused by drum wear or surface damage
Installation Notes and Tips
Verify the drum diameter, bolt circle, bolt hole count, and center hole dimensions before installation. Inspect brake shoes, wheel cylinders, and hardware condition during service, and confirm the rear drum brake assembly matches the vehicle’s original configuration. For fitment reference, this part fits 1984-1995 Honda Civic, rear; 1988-1991 Honda CRX, rear; and 1993-1997 Honda Civic del Sol, rear.
Quality Assurance
DuraGo manufactures this brake drum in ISO-certified factories and positions the BD3507 within its professional brake drum and rotor program for application accuracy and consistent manufacturing standards.
| Year | Make | Model | Submodel | Body Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1997 | Honda | Civic del Sol | — | — | — | Rear | — |
| 1996 | Honda | Civic del Sol | — | — | — | Rear | — |
| 1995 | Honda | Civic | LX | — | Manual | Rear | — |
| 1995 | Honda | Civic | EX | — | Manual | Rear | — |
| 1995 | Honda | Civic | CX | — | Manual | Rear | — |
| 1995 | Honda | Civic | DX | — | Manual | Rear | — |
| 1995 | Honda | Civic | VX | — | Manual | Rear | — |
| 1995 | Honda | Civic del Sol | — | — | — | Rear | — |
| 1994 | Honda | Civic | LX | — | Manual | Rear | — |
| 1994 | Honda | Civic | EX | — | Manual | Rear | — |
| 1994 | Honda | Civic | CX | — | Manual | Rear | — |
| 1994 | Honda | Civic | DX | — | Manual | Rear | — |
| 1994 | Honda | Civic | VX | — | Manual | Rear | — |
| 1994 | Honda | Civic del Sol | — | — | — | Rear | — |
| 1993 | Honda | Civic | LX | — | Manual | Rear | — |
| 1993 | Honda | Civic | EX | — | Manual | Rear | — |
| 1993 | Honda | Civic | CX | — | Manual | Rear | — |
| 1993 | Honda | Civic | DX | — | Manual | Rear | — |
| 1993 | Honda | Civic | VX | — | Manual | Rear | — |
| 1993 | Honda | Civic del Sol | — | — | — | Rear | — |
| 1992 | Honda | Civic | LX | — | Manual | Rear | — |
| 1992 | Honda | Civic | CX | — | Manual | Rear | — |
| 1992 | Honda | Civic | DX | — | Manual | Rear | — |
| 1992 | Honda | Civic | VX | — | Manual | Rear | — |
| 1991 | Honda | Civic | — | Sedan | — | Rear | — |
| 1991 | Honda | Civic | — | Hatchback | — | Rear | — |
| 1991 | Honda | CRX | — | — | — | Rear | — |
| 1990 | Honda | Civic | — | Sedan | — | Rear | — |
| 1990 | Honda | Civic | — | Hatchback | — | Rear | — |
| 1990 | Honda | CRX | — | — | — | Rear | — |
| 1989 | Honda | Civic | — | Sedan | — | Rear | — |
| 1989 | Honda | Civic | — | Hatchback | — | Rear | — |
| 1989 | Honda | CRX | — | — | — | Rear | — |
| 1988 | Honda | Civic | — | Sedan | — | Rear | — |
| 1988 | Honda | Civic | — | Hatchback | — | Rear | — |
| 1988 | Honda | CRX | — | — | — | Rear | — |
| 1987 | Honda | Civic | — | Sedan | — | Rear | — |
| 1987 | Honda | Civic | — | Hatchback | — | Rear | — |
| 1987 | Honda | Civic | — | Coupe | — | Rear | — |
| 1986 | Honda | Civic | — | Sedan | — | Rear | — |
| 1986 | Honda | Civic | — | Hatchback | — | Rear | — |
| 1986 | Honda | Civic | — | Coupe | — | Rear | — |
| 1985 | Honda | Civic | — | Sedan | — | Rear | — |
| 1985 | Honda | Civic | — | Hatchback | — | Rear | — |
| 1985 | Honda | Civic | — | Coupe | — | Rear | — |
| 1984 | Honda | Civic | — | Sedan | — | Rear | — |
| 1984 | Honda | Civic | — | Hatchback | — | Rear | — |
| 1984 | Honda | Civic | — | Coupe | — | Rear | — |
