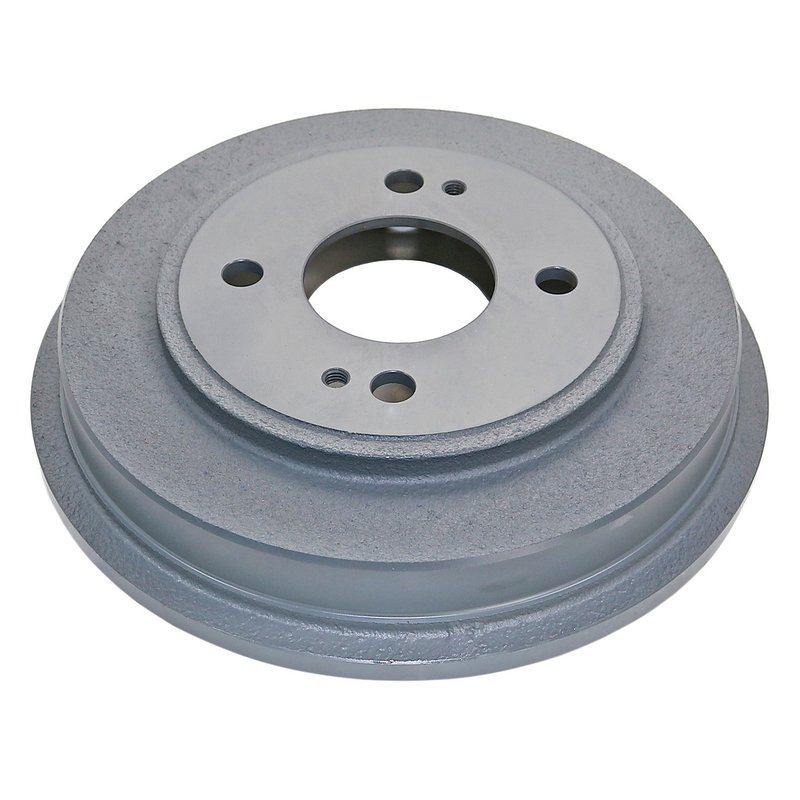

DuraGo BD35094-01 Brake Drum - Rear
| Brand | DuraGo BD35094-01 |
|---|---|
| Position | Rear |
| Material | Cast iron |
| Maximum Brake Diameter (Discard) | 201 |
| Maximum Brake Diameter (Discard) | 7.91 |
| Bolt Hole Diameter | 0.51 |
| Bolt Hole Diameter | 13 |
| Rust Resistant Coating | Yes |
| Bolt Hole Quantity | 4 |
| Overall Height | 2.51 |
| Overall Height | 63.7 |
| Outside Diameter | 246 |
| Outside Diameter | 9.69 |
| ABS Tone Ring Included | No |
| Outer Cooling Fins | No |
| Nominal Drum Diameter | 200 |
| Nominal Drum Diameter | 7.87 |
| Center Hole Diameter | 2.41 |
| Center Hole Diameter | 61.2 |
| Bolt Circle Diameter | 100 |
| Bolt Circle Diameter | 3.94 |
| Brake Surface Width | 1.8 |
| Brake Surface Width | 45.7 |
| Construction | Full cast |
| Fits | Honda · 16 vehicles |
Corrosion-resistant coating. Provides lasting protection for the brake drum exterior.
Full cast construction. Delivers a solid brake drum design made from cast iron.
ISO-certified manufacturing. Built to meet requirements for fit, form, and function.
Cross-references 42610S5A000 and 42610TM8A00 for the same application. See all 2.
DuraGo BD35094-01 Rear Brake Drum
The DuraGo Titanium Series BD35094-01 brake drum is built for rear brake service on select Honda applications, including Civic, Fit, and Insight models. It combines cast iron construction with a corrosion-resistant coating and a titanium gray finish for added exterior protection and a cleaner look on open-wheel vehicles.
Key Features
- Cast iron construction for dependable brake drum strength
- Rust-resistant coating on the exterior surface
- Titanium gray finish for improved appearance on open wheel designs
- Full cast construction
- 4-bolt pattern with 100 mm bolt circle diameter
- Nominal drum diameter: 200 mm (7.87 in.)
- Maximum brake diameter discard: 201 mm (7.91 in.)
- Brake surface width: 45.7 mm (1.8 in.)
- Overall height: 63.7 mm (2.51 in.)
- Outside diameter: 246 mm (9.69 in.)
- Center hole diameter: 61.2 mm (2.41 in.)
Detailed Description
DuraGo BD35094-01 is engineered in an ISO-certified factory to meet fit, form, and function requirements for rear brake service. The coated hat and edge help resist corrosion, while the cast iron drum provides the mass and surface stability needed for consistent rear braking performance. This part cross-references Honda OE numbers 42610S5A000 and 42610TM8A00 for the same application. Fits 2001-2005 Honda Civic, rear; Fits 2009-2014 Honda Fit, rear; Fits 2010-2014 Honda Insight, rear.
What It Helps Address
- Rear brake pulsation caused by worn or out-of-spec drum surfaces
- Corrosion on the drum exterior and hat area
- Brake noise related to uneven drum wear
- Reduced braking consistency from a damaged rear drum
- Fitment issues when replacing an OE-style rear drum on select Honda models
Installation Notes and Tips
Verify drum diameter, bolt circle, and center hole dimensions before installation. Inspect rear brake shoes, hardware, and wheel cylinders during service, and confirm the drum is within the maximum discard diameter of 201 mm. For best results, clean the braking surface and follow the vehicle manufacturer’s service procedures.
Quality Assurance
DuraGo manufactures this Titanium Series brake drum in an ISO-certified facility and builds it from experience developed over more than 20 years in the aftermarket brake category. The corrosion-resistant coating and controlled dimensions support consistent replacement quality for Honda Civic, Honda Fit, and Honda Insight rear brake service.
| Year | Make | Model | Submodel | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Honda | Fit | LX | GAS | Rear | Coated Hat and Edge for Rust Resistance |
| 2014 | Honda | Insight | — | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2013 | Honda | Fit | Base | GAS | Rear | Coated Hat and Edge for Rust Resistance |
| 2013 | Honda | Insight | — | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2012 | Honda | Fit | — | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2012 | Honda | Insight | — | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2011 | Honda | Fit | — | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2011 | Honda | Insight | — | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2010 | Honda | Fit | — | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2010 | Honda | Insight | — | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2009 | Honda | Fit | — | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2005 | Honda | Civic | LX | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2004 | Honda | Civic | LX | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2003 | Honda | Civic | LX | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2002 | Honda | Civic | — | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2001 | Honda | Civic | — | — | Rear | Coated Hat and Edge for Rust Resistance |
