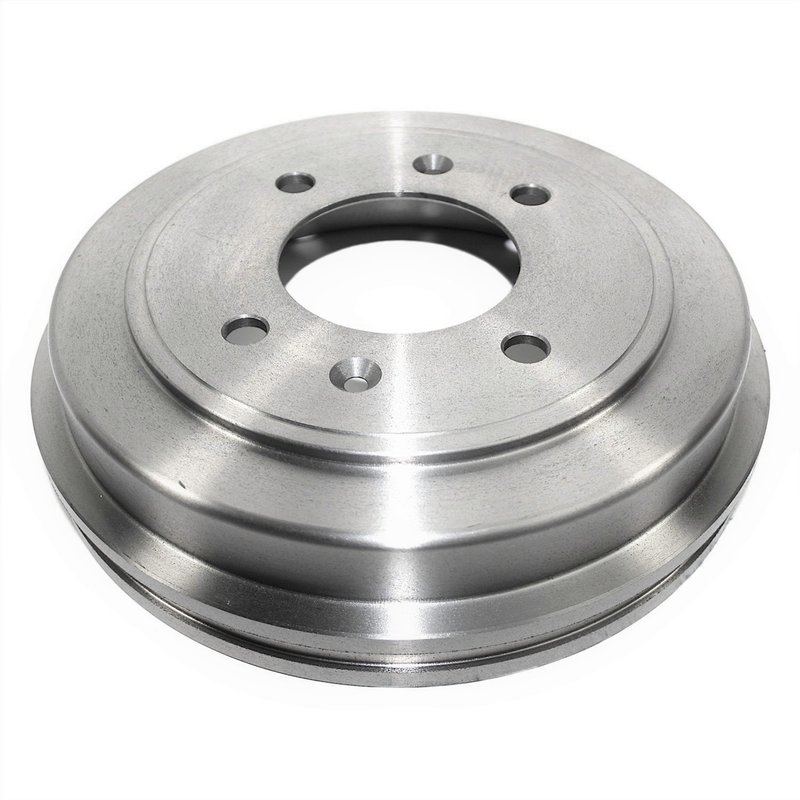

DuraGo BD35104 Brake Drum - Rear
| Brand | DuraGo BD35104 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Bolt Circle Diameter | 4.5 |
| Bolt Circle Diameter | 114.3 |
| Bolt Hole Diameter | 0.5 |
| Bolt Hole Diameter | 12.7 |
| Bolt Hole Quantity | 4 |
| Brake Surface Width | 1.74 |
| Brake Surface Width | 44.3 |
| Center Hole Diameter | 3 |
| Center Hole Diameter | 76.2 |
| Construction | Full Cast |
| Material | Cast Iron |
| Maximum Brake Diameter (Discard) | 8.08 |
| Maximum Brake Diameter (Discard) | 205.2 |
| Nominal Drum Diameter | 8.01 |
| Nominal Drum Diameter | 203.4 |
| Outer Cooling Fins | No |
| Outside Diameter | 9.56 |
| Outside Diameter | 242.7 |
| Overall Height | 2.32 |
| Overall Height | 59 |
| Rust Resistant Coating | No |
| Fits | Hyundai · 5 vehicles |
Full cast construction. Delivers the solid, consistent braking feel of a cast iron drum.
OE fit and function. Manufactured to meet fit, form, and function requirements.
Professional-grade program. Backed by DuraGo’s long-running aftermarket brake drum and rotor line.
Cross-references Anchor 9754, Four Seasons 35104 and 126142 for the same application. See all 7.
DuraGo BD35104 Rear Brake Drum
The DuraGo BD35104 brake drum is built for rear brake service on select Hyundai Elantra models from 2002-2006. Made from cast iron with a full cast construction, it is engineered around the listed dimensions for proper fit, form, and function in the brake system.
- Cast iron construction for durable brake service
- Full cast design
- Nominal drum diameter: 203.4 mm / 8.01 in.
- Maximum brake diameter (discard): 205.2 mm / 8.08 in.
- Outside diameter: 242.7 mm / 9.56 in.
- Brake surface width: 44.3 mm / 1.74 in.
- Bolt circle diameter: 114.3 mm / 4.5 in.
- 4 bolt holes with 12.7 mm / 0.5 in. bolt hole diameter
- Center hole diameter: 76.2 mm / 3 in.
- Overall height: 59 mm / 2.32 in.
- ABS tone ring not included
- Outer cooling fins not included
- Rust resistant coating not included
Fitment and Application Details
Compatible with rear brake service on 2002-2006 Hyundai Elantra. This DuraGo BD35104 drum matches the listed rear application and dimensions for vehicles requiring a 4-lug, 114.3 mm bolt circle brake drum. The BD35104 is also cross-referenced to Four Seasons 35104 for the same application.
What This Brake Drum Helps Address
- Rear brake pulsation caused by a worn or out-of-round drum
- Reduced braking consistency from excessive drum wear
- Brake noise related to drum surface damage
- Service issues when the drum reaches discard diameter
- Fitment concerns on 2002-2006 Hyundai Elantra rear brake repairs
Installation Notes and Tips
Verify drum diameter, bolt circle, center hole, and brake surface width against the vehicle before installation. Inspect rear brake shoes, hardware, and wheel cylinders during service, and measure the existing drum against the discard specification to confirm replacement is needed. For best results, clean the hub mounting surface and confirm the drum seats evenly before road testing.
Quality Assurance
DuraGo manufactures brake drums through ISO-certified factories and builds this part to meet fit, form, and function requirements. The brand’s aftermarket brake program is focused on catalog accuracy and consistent replacement quality for service work.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Hyundai | Elantra | Rear | — |
| 2005 | Hyundai | Elantra | Rear | — |
| 2004 | Hyundai | Elantra | Rear | — |
| 2003 | Hyundai | Elantra | Rear | — |
| 2002 | Hyundai | Elantra | Rear | — |
