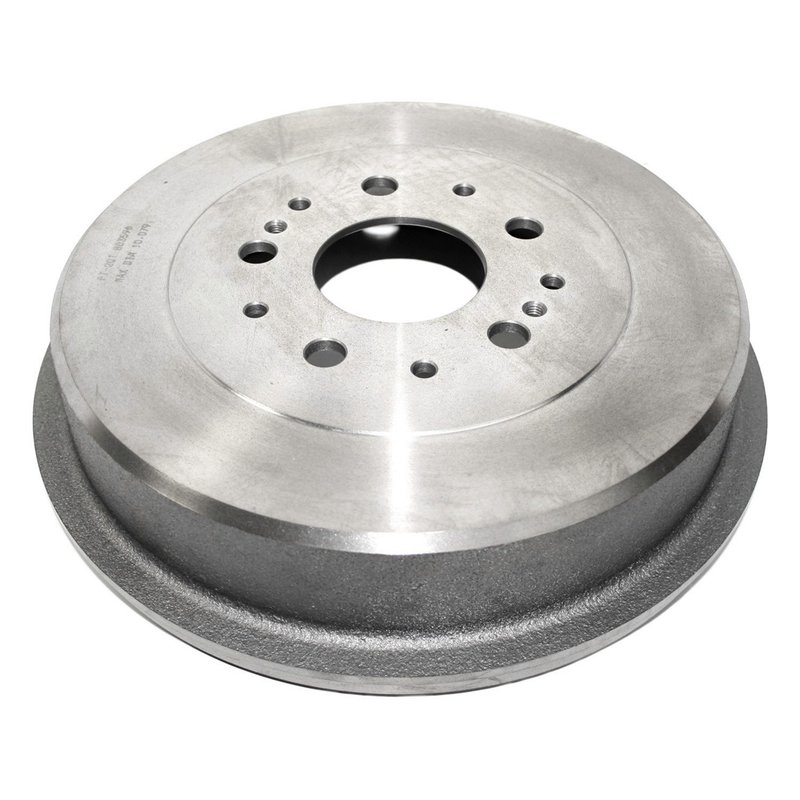

DuraGo BD3596 Brake Drum - Rear

DuraGo BD3596 Rear Brake Drum

The DuraGo BD3596 is a rear brake drum built from cast iron for select Toyota applications. It is sized for a 10 in nominal drum diameter with a 12.05 in outside diameter, 2.58 in brake surface width, and 5-lug bolt pattern, making it a direct-fit option for rear drum brake service on specific Toyota Pickup and Toyota Tacoma models.

Key Features

• Cast iron construction for stable braking performance
• 10 in nominal drum diameter with 10.08 in maximum discard diameter
• 5 bolt holes with 4.5 in bolt circle diameter
• 2.58 in brake surface width and 2.87 in overall height
• Full cast construction for rear drum brake applications
• Fits rear positions on select Toyota Pickup and Toyota Tacoma vehicles

Detailed Description

DuraGo BD3596 is part of the brand’s brake drum and rotor program, which is built for catalog accuracy and first-to-market coverage across many applications. Manufactured by ISO certified factories, this rear brake drum is produced to meet fit, form, and function requirements for the listed vehicles. For buyers searching for a rear brake drum for 2004 Toyota Tacoma or a rear brake drum for 1989-1995 Toyota Pickup SRW, BD3596 provides the specified dimensions and OE-style configuration needed for service work. This part cross-references Anchor 3596 and 9481 for the same application.

Vehicle Fitment

• Fits 2004 Toyota Tacoma, rear — 5 lug disc brake rotor
• Fits 1989-1995 Toyota Pickup, rear — SRW

What This Part Helps Address

• Rear brake pulsation caused by worn or out-of-round drum surfaces
• Brake noise related to drum wear or scoring
• Reduced braking consistency from excessive drum diameter wear
• Service replacement needs on rear drum brake systems
• Fitment-specific replacement for Toyota Tacoma and Toyota Pickup rear brake service

Installation Notes and Tips

Verify the drum diameter, bolt circle, center hole diameter, and brake surface width before installation. Measure the existing drum against the 10.08 in discard specification and inspect shoes, hardware, and wheel cylinders for wear before reassembly. Confirm rear application and vehicle configuration match the listed fitment for the Toyota Tacoma and Toyota Pickup.

Quality Assurance

DuraGo manufactures this brake drum through ISO certified factories and builds the product line around fitment accuracy and dimensional consistency. The BD3596 is engineered to meet the requirements of the listed rear brake drum applications.
