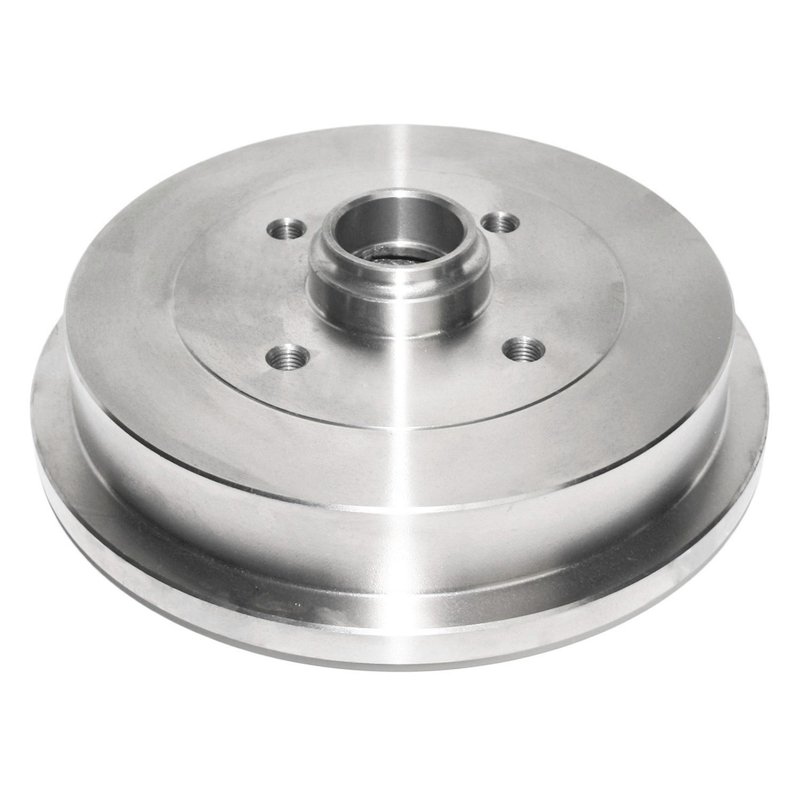

DuraGo BD3829 Brake Drum - Rear
| Brand | DuraGo BD3829 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Bolt Circle Diameter | 3.94 |
| Bolt Circle Diameter | 100 |
| Bolt Hole Quantity | 4 |
| Bolt Size | M12 x 1.5 |
| Brake Surface Width | 1.52 |
| Brake Surface Width | 38.5 |
| Center Hole Diameter | 2.24 |
| Center Hole Diameter | 56.8 |
| Construction | Full Cast |
| Material | Cast Iron |
| Maximum Brake Diameter (Discard) | 7.13 |
| Maximum Brake Diameter (Discard) | 181 |
| Nominal Drum Diameter | 7.09 |
| Nominal Drum Diameter | 180 |
| Outer Cooling Fins | No |
| Outside Diameter | 8.33 |
| Outside Diameter | 211.5 |
| Overall Height | 2.95 |
| Overall Height | 75 |
| Rust Resistant Coating | No |
| Fits | Volkswagen · 59 vehicles |
Cast iron construction. Delivers dependable braking performance with a full-cast drum design.
Precision fit, form, and function. Manufactured in ISO-certified factories to meet professional standards.
Brake drum design. Built for consistent braking with a 4-bolt pattern and 1.52 in. surface width.
Cross-references Anchor 9556, CSF 3829 and 1H0501615A for the same application. See all 15.
DuraGo BD3829 Rear Brake Drum
The DuraGo BD3829 is a cast iron rear brake drum built for specific Volkswagen applications that use a 4-lug, 100 mm bolt circle setup. It is engineered to match the required fit, form, and function for service replacement on select Volkswagen Golf, Jetta, Cabrio, Derby, Pointer, and Pointer Truck models.
Key Features
- Cast iron, full cast construction for dependable braking service
- Nominal drum diameter: 180 mm (7.09 in.)
- Maximum brake diameter discard: 181 mm (7.13 in.)
- Outside diameter: 211.5 mm (8.33 in.)
- Brake surface width: 38.5 mm (1.52 in.)
- 4 bolt holes with 100 mm (3.94 in.) bolt circle diameter
- Bolt size: M12 x 1.5
- Center hole diameter: 56.8 mm (2.24 in.)
- Overall height: 75 mm (2.95 in.)
- Rear position application
Detailed Description
DuraGo BD3829 is a rear brake drum for Volkswagen vehicles that require a 180 mm nominal drum diameter and 4-bolt mounting pattern. The cast iron construction supports stable braking performance, while the specified dimensions help ensure proper drum-to-shoe contact and correct wheel mounting geometry. This part number is a direct service option for rear brake drum replacement on 1990-1999 Volkswagen Golf and Jetta, 1995-1999 Volkswagen Cabrio and Derby, and 1998-2009 Volkswagen Pointer and 1999-2009 Volkswagen Pointer Truck applications. This part cross-references Anchor 9556 and CSF 3829 for the same application.
Vehicle Fitment
- Fits 1998-2009 Volkswagen Pointer, rear
- Fits 1999-2009 Volkswagen Pointer Truck, rear
- Fits 1995-1999 Volkswagen Cabrio, rear
- Fits 1995-1999 Volkswagen Derby, rear
- Fits 1990-1999 Volkswagen Golf, rear
- Fits 1990-1999 Volkswagen Jetta, rear
- Fits 1989 Volkswagen Golf, rear, from 3/89
Common Replacement Reasons
- Rear brake drum wear beyond the discard diameter
- Brake pulsation or uneven rear braking performance
- Grooving, scoring, or heat-related drum damage
- Incorrect drum fitment from prior service parts
- Restoring proper rear brake shoe contact on Volkswagen Golf and Jetta models
Installation Notes and Tips
Verify the drum diameter, bolt circle, center hole, and bolt size against the original part before installation. Inspect rear brake shoes, wheel cylinders, and hardware condition during service, and measure the existing drum to confirm it is within the allowable discard limit. This rear brake drum is intended for applications that use a 4-bolt, 100 mm pattern and should be matched to the vehicle’s rear brake specification.
Quality Assurance
DuraGo has over 45 years of aftermarket manufacturing experience, and its brake drum and rotor program is produced in ISO-certified factories to meet fit, form, and function requirements. The BD3829 reflects that manufacturing approach for service replacement on select Volkswagen rear brake applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2009 | Volkswagen | Pointer | — | — | — | — | Rear | — |
| 2009 | Volkswagen | Pointer Truck | — | — | — | — | Rear | — |
| 2008 | Volkswagen | Pointer | — | — | — | — | Rear | — |
| 2008 | Volkswagen | Pointer Truck | — | — | — | — | Rear | — |
| 2007 | Volkswagen | Pointer | — | — | — | — | Rear | — |
| 2007 | Volkswagen | Pointer Truck | — | — | — | — | Rear | — |
| 2006 | Volkswagen | Pointer | — | — | — | — | Rear | — |
| 2006 | Volkswagen | Pointer Truck | — | — | — | — | Rear | — |
| 2005 | Volkswagen | Pointer | — | — | — | — | Rear | — |
| 2005 | Volkswagen | Pointer Truck | — | — | — | — | Rear | — |
| 2004 | Volkswagen | Pointer | — | — | — | — | Rear | — |
| 2004 | Volkswagen | Pointer Truck | — | — | — | — | Rear | — |
| 2003 | Volkswagen | Pointer | — | — | — | — | Rear | — |
| 2003 | Volkswagen | Pointer Truck | — | — | — | — | Rear | — |
| 2002 | Volkswagen | Pointer | — | — | — | — | Rear | — |
| 2002 | Volkswagen | Pointer Truck | — | — | — | — | Rear | — |
| 2001 | Volkswagen | Pointer | — | — | — | — | Rear | — |
| 2001 | Volkswagen | Pointer Truck | — | — | — | — | Rear | — |
| 2000 | Volkswagen | Pointer | — | — | — | — | Rear | — |
| 2000 | Volkswagen | Pointer Truck | — | — | — | — | Rear | — |
| 1999 | Volkswagen | Cabrio | — | — | — | — | Rear | — |
| 1999 | Volkswagen | Derby | — | — | — | — | Rear | — |
| 1999 | Volkswagen | Golf | — | — | — | — | Rear | — |
| 1999 | Volkswagen | Jetta | — | — | — | — | Rear | — |
| 1999 | Volkswagen | Pointer | — | — | — | — | Rear | — |
| 1999 | Volkswagen | Pointer Truck | — | — | — | — | Rear | — |
| 1998 | Volkswagen | Cabrio | — | — | — | — | Rear | — |
| 1998 | Volkswagen | Derby | — | — | — | — | Rear | — |
| 1998 | Volkswagen | Golf | — | — | — | — | Rear | — |
| 1998 | Volkswagen | Jetta | — | — | — | — | Rear | — |
| 1998 | Volkswagen | Pointer | — | — | — | — | Rear | — |
| 1997 | Volkswagen | Cabrio | — | — | — | — | Rear | — |
| 1997 | Volkswagen | Derby | — | — | — | — | Rear | — |
| 1997 | Volkswagen | Golf | — | — | — | — | Rear | — |
| 1997 | Volkswagen | Jetta | — | — | — | — | Rear | — |
| 1996 | Volkswagen | Cabrio | — | — | — | — | Rear | — |
| 1996 | Volkswagen | Derby | — | — | — | — | Rear | — |
| 1996 | Volkswagen | Golf | — | — | — | — | Rear | — |
| 1996 | Volkswagen | Jetta | — | 2.0L | L4 | — | Rear | — |
| 1996 | Volkswagen | Jetta | — | 1.9L | L4 | — | Rear | — |
| 1996 | Volkswagen | Jetta | — | 1.8L | L4 | — | Rear | — |
| 1995 | Volkswagen | Cabrio | — | — | — | — | Rear | — |
| 1995 | Volkswagen | Derby | — | — | — | — | Rear | — |
| 1995 | Volkswagen | Golf | — | — | — | — | Rear | — |
| 1995 | Volkswagen | Jetta | — | 2.0L | L4 | — | Rear | — |
| 1995 | Volkswagen | Jetta | — | 1.8L | L4 | — | Rear | — |
| 1994 | Volkswagen | Golf | — | — | — | — | Rear | — |
| 1994 | Volkswagen | Jetta | — | 2.0L | L4 | — | Rear | — |
| 1994 | Volkswagen | Jetta | — | 1.8L | L4 | — | Rear | — |
| 1993 | Volkswagen | Golf | — | — | — | — | Rear | — |
| 1993 | Volkswagen | Jetta | — | — | — | — | Rear | — |
| 1992 | Volkswagen | Golf | — | — | — | — | Rear | — |
| 1992 | Volkswagen | Jetta | — | — | — | GAS | Rear | — |
| 1991 | Volkswagen | Golf | — | — | — | — | Rear | — |
| 1991 | Volkswagen | Jetta | — | — | — | GAS | Rear | — |
| 1990 | Volkswagen | Golf | — | — | — | — | Rear | — |
| 1990 | Volkswagen | Jetta | — | — | — | GAS | Rear | — |
| 1989 | Volkswagen | Golf | GL | — | — | — | Rear | From 3/89 |
| 1989 | Volkswagen | Golf | Base | — | — | — | Rear | From 3/89 |
