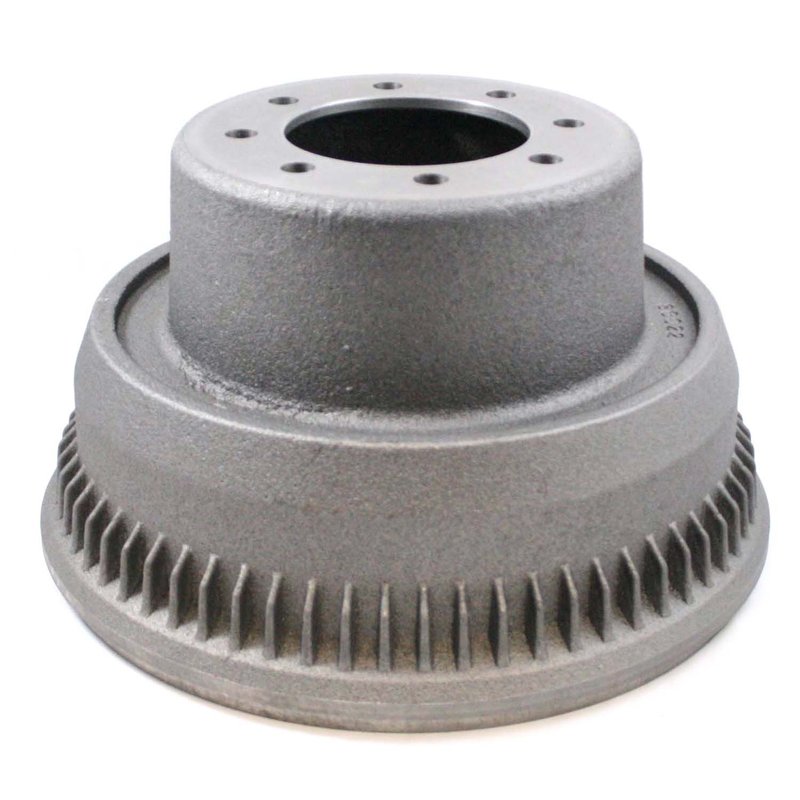

DuraGo BD80022 Brake Drum - Rear

Brand DuraGo BD80022
Position Rear
ABS Tone Ring Included No
Bolt Circle Diameter 6.5
Bolt Circle Diameter 165.1
Bolt Hole Diameter 0.66
Bolt Hole Diameter 16.7
Bolt Hole Quantity 8
Brake Surface Width 4.01
Brake Surface Width 101.8
Center Hole Diameter 4.84
Center Hole Diameter 123
Construction Full Cast
Material Cast Iron
Maximum Brake Diameter (Discard) 13.09
Maximum Brake Diameter (Discard) 332.5
Nominal Drum Diameter 13
Nominal Drum Diameter 330.2
Outer Cooling Fins Yes
Outside Diameter 15.68
Outside Diameter 398.2
Overall Height 8.86
Overall Height 225
Rust Resistant Coating No
Fits Dodge · 6 vehicles

Full cast construction. Delivers a durable brake drum built from cast iron.

Outer cooling fins. Help promote heat dissipation for more consistent braking.

ISO-certified manufacturing. Built to meet fit, form, and function requirements.

Cross-references Anchor 9569, Dorman - HELP 80022 and 125395 for the same application. See all 9.

$170.25Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Brake Drums are typically replaced in pairs, axle by axle.
Order total $170.25
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Brake Drum options

DuraGo BD80022 Rear Brake Drum

The DuraGo BD80022 is a rear brake drum for 1994-1999 Dodge Ram 3500 applications. Built from cast iron with a full cast construction, it is made for drivers and repair shops replacing a worn rear drum on heavy-duty Ram 3500 trucks.

  • Fits 1994-1999 Dodge Ram 3500, rear
  • Cast iron construction with full cast design
  • Nominal drum diameter: 13 in. / 330.2 mm
  • Maximum brake diameter at discard: 13.09 in. / 332.5 mm
  • Outside diameter: 15.68 in. / 398.2 mm
  • Brake surface width: 4.01 in. / 101.8 mm
  • 8 bolt holes with 6.5 in. / 165.1 mm bolt circle diameter
  • Outer cooling fins included
  • Center hole diameter: 4.84 in. / 123 mm

Fitment and application details

Use this brake drum on rear brake service for the Dodge Ram 3500 from 1994 through 1999. The BD80022 part number is also referenced in aftermarket catalogs for the same application, including Dorman HELP 80022 and Anchor 9569 cross-reference listings.

What this brake drum helps address

  • Rear brake pulsation caused by drum wear or scoring
  • Reduced braking performance from an out-of-spec drum diameter
  • Brake noise related to uneven drum surface condition
  • Service issues on high-mileage Dodge Ram 3500 rear brake systems
  • Replacement needs when the existing drum reaches discard diameter

Installation notes and tips

Verify the drum diameter, bolt pattern, center hole, and brake surface width before installation. Measure the existing drum against the discard specification and inspect rear brake shoes, hardware, and wheel bearings during service. Confirm rear axle and brake configuration match the vehicle listing before ordering.

Quality assurance

DuraGo manufactures brake drums through ISO-certified factories and focuses on fit, form, and function for aftermarket brake service. The BD80022 reflects that manufacturing approach for Dodge Ram 3500 rear brake applications.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1999DodgeRam 3500Rear—
1998DodgeRam 3500Rear—
1997DodgeRam 3500Rear—
1996DodgeRam 3500Rear—
1995DodgeRam 3500Rear—
1994DodgeRam 3500Rear—
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 9569Dorman - HELP — 800221253951236702652007902AX80022BD125395P9569PDR0657
