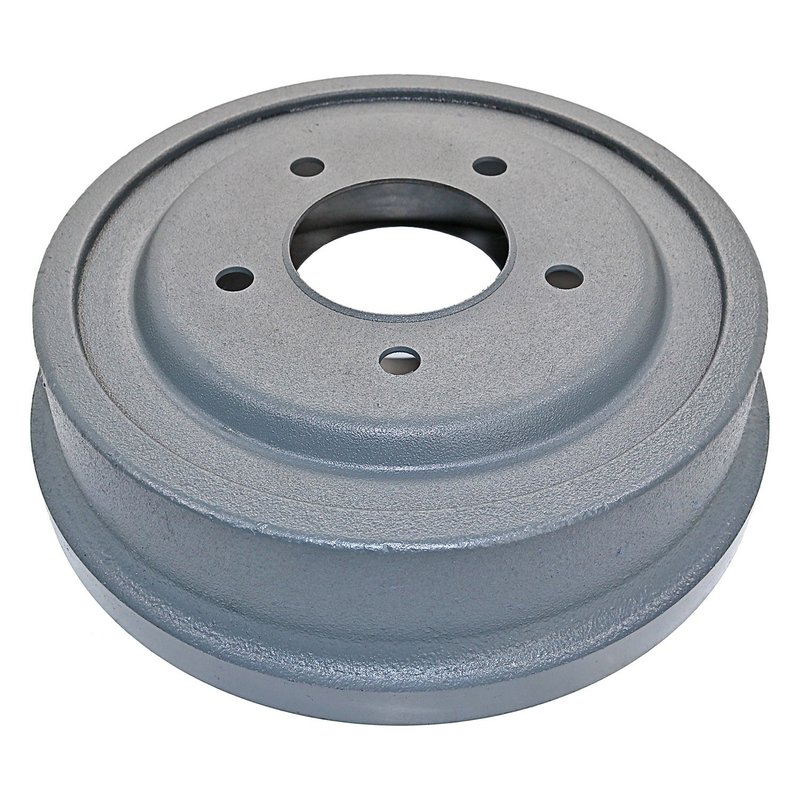

DuraGo BD80023-01 Brake Drum - Rear

DuraGo BD80023-01 Rear Brake Drum

The DuraGo Titanium Series brake drum is built for rear brake service on select Ford F-150 applications. It combines a cast iron / steel top construction with a rust-resistant coating and a titanium gray finish that suits open wheel designs.

Compatible With 1997-1999 Ford F-150 rear brake drum replacement needs, this part number BD80023-01 is manufactured in an ISO certified factory to support fit, form, and function requirements.

Key Features

• Cast iron / steel top construction for brake service durability
• Rust resistant coating on the exterior for corrosion defense
• Titanium gray finish for a clean appearance on exposed wheel setups
• 5-bolt pattern with 135 mm bolt circle diameter
• Nominal drum diameter: 11.03 in. / 280.2 mm
• Maximum brake diameter (discard): 11.12 in. / 282.4 mm
• Brake surface width: 2.7 in. / 68.6 mm
• Overall height: 3.7 in. / 94 mm

Detailed Description

DuraGo BD80023-01 is a rear brake drum engineered for 1997-1999 Ford F-150 trucks with 5-lug rear brake drum applications. The drum uses a composite construction with a cast iron / steel top and a corrosion-resistant exterior coating to help maintain appearance and service life in exposed conditions. The titanium gray finish also complements vehicles with open wheel designs, making it a practical choice for visible brake components.

This brake drum measures 12.74 in. outside diameter, 3.45 in. center hole diameter, and 11.03 in. nominal drum diameter. It is manufactured to meet fit, form, and function requirements in an ISO certified factory. This part number BD80023-01 is a direct-fit style replacement for rear brake service on the Ford F-150 platform listed below.

This part cross-references Ford OE numbers F65A1126AA3 and F65Z1126AA for the same application.

What This Brake Drum Helps Address

• Rear brake pulsation caused by worn drum surfaces
• Brake noise related to uneven drum wear
• Reduced braking consistency from an out-of-spec drum
• Corrosion on exposed rear brake components
• Service replacement for a damaged or worn Ford F-150 rear drum

Installation Notes and Tips

Verify the drum diameter, bolt pattern, center hole diameter, and brake surface width before installation. This rear brake drum is listed for 1997-1998 Ford F-150 rear applications and for 1999 Ford F-150 rear applications built to 11/99 with 5-lug fitment and coated hat and edge for rust resistance. Inspect related brake components, including shoes and hardware, and confirm the drum is within discard diameter limits during service.

Quality Assurance

DuraGo manufactures this Titanium Series brake drum in an ISO certified factory and designs it around fit, form, and function requirements. The corrosion-resistant coating and titanium gray finish add protection for exposed brake service on Ford F-150 rear applications.
