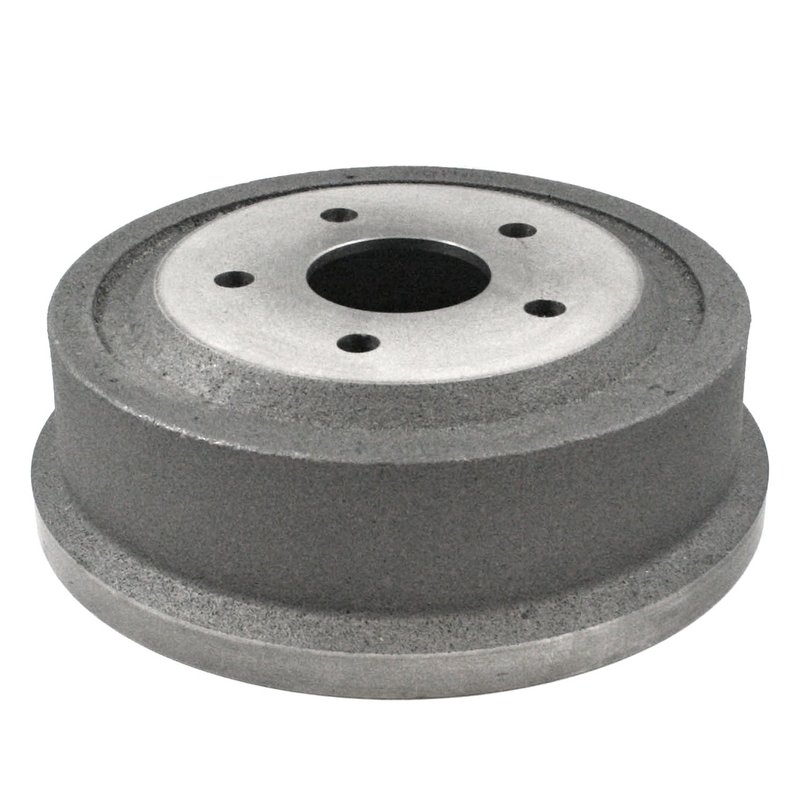

DuraGo BD80086 Brake Drum - Rear
| Brand | DuraGo BD80086 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Bolt Circle Diameter | 5.5 |
| Bolt Circle Diameter | 139.7 |
| Bolt Hole Diameter | 0.68 |
| Bolt Hole Diameter | 17.2 |
| Bolt Hole Quantity | 5 |
| Brake Surface Width | 2.94 |
| Brake Surface Width | 74.8 |
| Center Hole Diameter | 3.09 |
| Center Hole Diameter | 78.5 |
| Construction | Full Cast |
| Material | Cast Iron |
| Maximum Brake Diameter (Discard) | 11.11 |
| Maximum Brake Diameter (Discard) | 282.3 |
| Nominal Drum Diameter | 11.02 |
| Nominal Drum Diameter | 280 |
| Outer Cooling Fins | No |
| Outside Diameter | 12.88 |
| Outside Diameter | 327.2 |
| Overall Height | 4.07 |
| Overall Height | 103.5 |
| Rust Resistant Coating | No |
| Fits | Dodge · 4 vehicles |
Cast iron construction. Full-cast design delivers dependable braking performance.
Brake drum design. Built for consistent stopping power and everyday service.
ISO-certified manufacturing. Made to meet fit, form, and function requirements.
Cross-references Anchor 9695, Edelmann 80086 and 125747 for the same application. See all 8.
DuraGo BD80086 Rear Brake Drum
The DuraGo BD80086 is a cast iron rear brake drum built for direct replacement service on select Dodge Ram 1500 and Dodge Ramcharger applications. It is engineered to match the required fit, form, and function for the listed vehicles, with a full cast construction and standard drum dimensions for dependable brake service.
Compatible With 2000-2001 Dodge Ram 1500, rear, and 2000-2001 Dodge Ramcharger, rear. This part cross-references Anchor 9695 and Edelmann 80086 for the same application.
Key Features
- Cast iron construction for traditional drum brake service
- Full cast design
- Nominal drum diameter: 11.02 in. (280 mm)
- Maximum brake diameter discard: 11.11 in. (282.3 mm)
- Outside diameter: 12.88 in. (327.2 mm)
- Brake surface width: 2.94 in. (74.8 mm)
- Center hole diameter: 3.09 in. (78.5 mm)
- Bolt circle diameter: 5.5 in. (139.7 mm)
- 5 bolt holes
- Overall height: 4.07 in. (103.5 mm)
Detailed Description
DuraGo manufactures the BD80086 as part of its brake drum and rotor program, using ISO-certified factory production to support consistent fitment and dimensional accuracy. For rear brake service on 2000-2001 Dodge Ram 1500 and 2000-2001 Dodge Ramcharger models, this drum provides the specified cast iron construction and critical measurements needed for proper brake shoe contact and drum replacement. The BD80086 part number is a practical reference for technicians and buyers searching for a rear brake drum for Dodge Ram 1500 or Dodge Ramcharger applications.
Common Brake Issues It May Address
- Rear brake pulsation caused by worn drum surfaces
- Out-of-spec drum diameter from brake wear
- Reduced braking consistency from an uneven drum surface
- Brake shoe contact problems related to drum wear
- Service replacement needs on rear drum brake systems
Installation Notes and Tips
Verify drum diameter, bolt pattern, center hole diameter, and brake surface width against the removed part before installation. Inspect rear brake shoes, wheel cylinders, and related hardware for wear or contamination during service. Confirm the drum is within discard limits before reuse or replacement, and follow the vehicle service manual for proper brake adjustment and bedding procedures.
Quality Assurance
DuraGo states that its brake drum and rotor products are manufactured in ISO-certified factories and built to meet fit, form, and function requirements for the listed application. The BD80086 is produced to support professional brake service standards for rear brake replacement on the specified Dodge vehicles.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2001 | Dodge | Ram 1500 | Rear | — |
| 2001 | Dodge | Ramcharger | Rear | — |
| 2000 | Dodge | Ram 1500 | Rear | — |
| 2000 | Dodge | Ramcharger | Rear | — |
