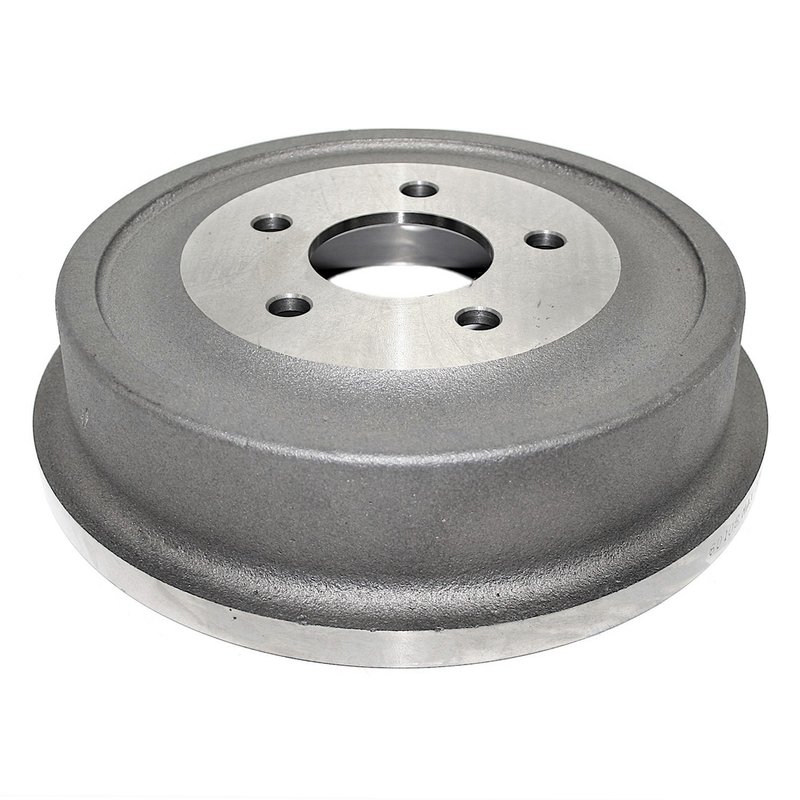

DuraGo BD80105 Brake Drum - Rear

DuraGo BD80105 Rear Brake Drum

The DuraGo BD80105 is a cast iron rear brake drum built for select Saturn, Chevrolet, Pontiac, and related applications. It is engineered to match fit, form, and function requirements for a direct replacement brake service on vehicles such as the Saturn Vue, Chevrolet Equinox, Pontiac Torrent, and Pontiac Aztek.

Key Features

• Cast iron construction for dependable braking performance
• Full cast design
• Nominal drum diameter: 250 mm (9.84 in.)
• Outside diameter: 296 mm (11.65 in.)
• Brake surface width: 55 mm (2.17 in.)
• Center hole diameter: 70.8 mm (2.79 in.)
• 5-bolt wheel pattern with 115 mm (4.53 in.) bolt circle diameter
• Maximum brake diameter discard: 251.5 mm (9.9 in.)
• Rear brake drum application

Detailed Description

DuraGo BD80105 is a rear brake drum manufactured in ISO-certified factories and backed by DuraGo’s long-running aftermarket brake program. The drum uses a full cast, cast iron construction to support consistent braking surface integrity and dimensional accuracy. Key measurements include a 250 mm nominal drum diameter, 296 mm outside diameter, 55 mm brake surface width, and 70.8 mm center hole diameter, making it a precise replacement for service work where OE-style dimensions matter.

This part fits 2002-2007 Saturn Vue, rear; 2005-2006 Chevrolet Equinox, rear; 2006 Pontiac Torrent, rear; and 2001-2005 Pontiac Aztek, rear. If you are searching for a rear brake drum for a 2002-2007 Saturn Vue or a 2005-2006 Chevrolet Equinox, BD80105 is the listed application. This part cross-references Dorman - HELP 80105 and Anchor 9740 for the same application.

What It Helps Address

• Rear brake pulsation caused by worn drum surfaces
• Brake noise related to uneven drum wear
• Reduced braking consistency from out-of-spec drum dimensions
• Service replacement needs on rear drum brake systems
• Fitment issues when replacing a damaged or worn rear drum

Installation Notes and Tips

Confirm the rear axle application and verify drum measurements before installation. Inspect brake shoes, hardware, wheel cylinders, and parking brake components during service so the new drum is installed on a clean, even braking surface. Measure the existing drum against the discard diameter specification of 251.5 mm (9.9 in.) and replace if the current drum is beyond service limits.

Quality Assurance

DuraGo manufactures this brake drum through ISO-certified production processes and builds its brake drum and rotor program around fit, form, and function requirements. The BD80105 is part of DuraGo’s professional brake cataloging program for direct replacement service.
