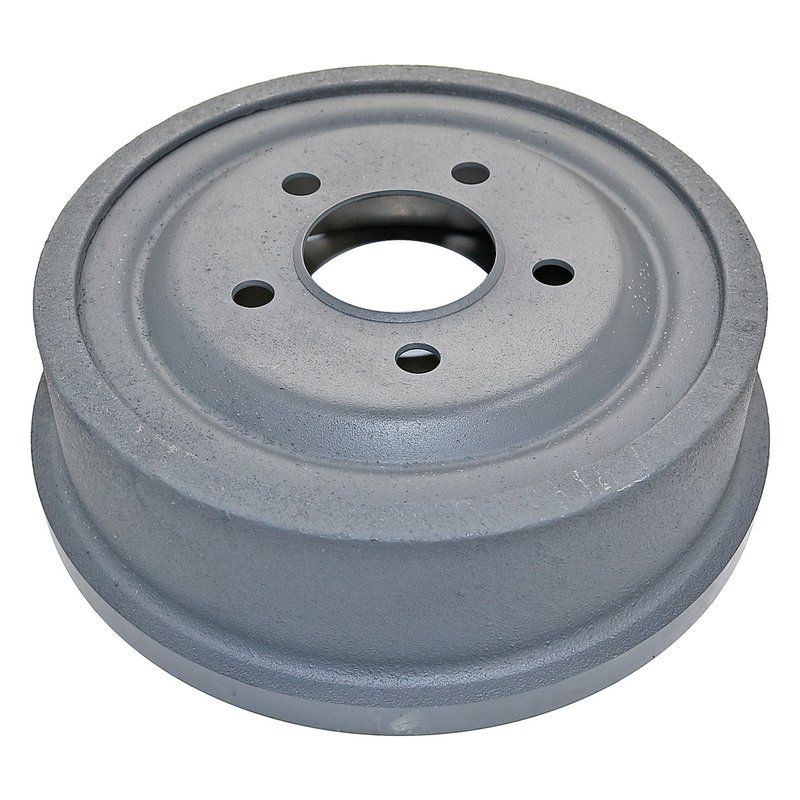

DuraGo BD8923-01 Brake Drum - Rear

DuraGo BD8923-01 Rear Brake Drum

The DuraGo BD8923-01 is a rear brake drum built for select Ford and Mazda applications that use a 10-inch rear drum. It combines a cast iron and steel top construction with a rust-resistant coating to help protect the exterior and maintain a cleaner appearance on open-wheel vehicles.

Engineered in an ISO-certified factory, this DuraGo Titanium Series brake drum is made to meet fit, form, and function requirements for service replacement on Ranger, B2300, B4000, B3000, B2500, Explorer, Navajo, F-100, and F-150 applications.

Key Features

• Part number BD8923-01
• Rear brake drum for select Ford Ranger and Mazda truck/SUV applications
• Nominal drum diameter: 10 in. / 254 mm
• Outside diameter: 11.73 in. / 298 mm
• Brake surface width: 2.9 in. / 73.7 mm
• Rust-resistant coating on the exterior, hat, and edge
• Cast iron / steel top construction
• 5-bolt pattern with 4.5 in. bolt circle diameter
• ISO-certified manufacturing for dimensional consistency

Product Details

DuraGo BD8923-01 is a coated rear brake drum designed around the specifications used on many Ford Ranger and Mazda rear drum brake systems. The titanium gray finish adds corrosion defense to the drum exterior, while the coated hat and edge help reduce rust buildup in exposed areas. With a 10-inch nominal drum diameter, 5-bolt pattern, and 4.5-inch bolt circle, this drum is built for direct service replacement where the original brake drum matches these dimensions.

This part cross-references Ford OE numbers 1F8026251 and 6L5Z1126A for the same application.

What It Helps Address

• Brake pulsation or uneven rear braking caused by worn drum surfaces
• Rust buildup on the drum exterior and hat area
• Reduced braking consistency from an out-of-spec drum diameter
• Noise or vibration related to drum wear or corrosion
• Service replacement needs on rear drum brake systems for Ford Ranger and Mazda B-Series vehicles

Installation Notes and Tips

Verify the vehicle’s rear brake drum dimensions before installation, including nominal diameter, bolt pattern, center hole diameter, and brake surface width. This drum is listed for rear position applications only, including 1998-2009 Ford Ranger rear, 2001-2009 Mazda B2300 rear, 1998-2009 Mazda B4000 rear, 1998-2007 Mazda B3000 rear, 1998-2001 Mazda B2500 rear, 1991-1994 Ford Explorer rear, 1991-1994 Mazda Navajo rear, 1980-1983 Ford F-100 rear, and 1980-1983 Ford F-150 rear.

For best results, inspect rear shoes, hardware, wheel cylinders, and parking brake components during drum service. Confirm the drum’s discard diameter and compare it to the existing part before reuse or replacement.

Quality Assurance

DuraGo manufactures the Titanium Series in an ISO-certified facility and designs the BD8923-01 to meet fit, form, and function requirements for the listed applications. The corrosion-resistant coating and controlled production process support consistent service replacement quality.
