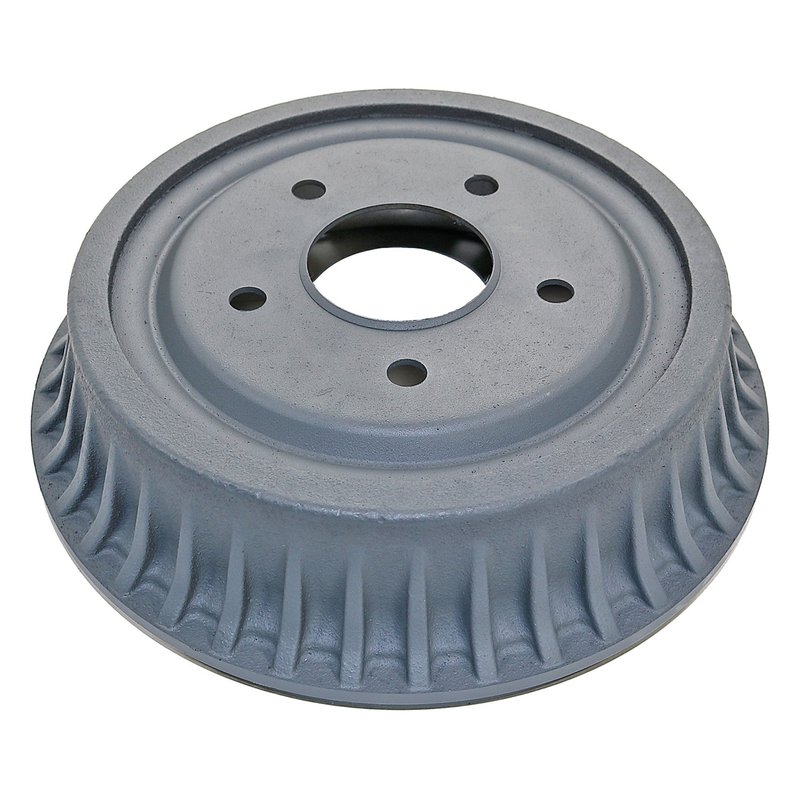

DuraGo BD8988-01 Brake Drum - Rear
| Brand | DuraGo BD8988-01 |
|---|---|
| Position | Rear |
| Material | Cast iron / steel top |
| Maximum Brake Diameter (Discard) | 243.59 |
| Maximum Brake Diameter (Discard) | 9.59 |
| Bolt Hole Diameter | 0.53 |
| Bolt Hole Diameter | 13.5 |
| Rust Resistant Coating | Yes |
| Bolt Hole Quantity | 5 |
| Overall Height | 3.17 |
| Overall Height | 80.5 |
| Outside Diameter | 11.97 |
| Outside Diameter | 304 |
| ABS Tone Ring Included | No |
| Outer Cooling Fins | Yes |
| Nominal Drum Diameter | 241.3 |
| Nominal Drum Diameter | 9.5 |
| Center Hole Diameter | 2.79 |
| Center Hole Diameter | 70.8 |
| Bolt Circle Diameter | 120.65 |
| Bolt Circle Diameter | 4.75 |
| Brake Surface Width | 2.45 |
| Brake Surface Width | 62.2 |
| Construction | Composite |
| Fits | Chevrolet, GMC, Isuzu, Oldsmobile, and Pontiac · 66 vehicles |
Corrosion-resistant coating. Provides lasting protection for the brake drum exterior.
Composite construction. Combines cast iron and steel top for durable braking performance.
Outer cooling fins. Helps promote airflow and heat dissipation.
Cross-references 15606280, 15689587 and 15693455 for the same application. See all 5.
DuraGo BD8988-01 Rear Brake Drum
The DuraGo Titanium Series brake drum is built for rear brake service on select Chevrolet, GMC, Isuzu, Oldsmobile, and Pontiac applications. Part number BD8988-01 combines a corrosion-resistant exterior coating with a titanium gray finish for added protection and a cleaner look on open-wheel vehicles.
- Cast iron / steel top construction for durable braking performance
- Rust-resistant coating on the exterior, hat, and edge
- Titanium gray finish suited to open wheel designs
- Outer cooling fins for improved heat management
- 5-bolt pattern with 4.75 in. bolt circle diameter
- Nominal drum diameter: 9.5 in. / 241.3 mm
- Maximum brake diameter (discard): 9.59 in. / 243.59 mm
- Brake surface width: 2.45 in. / 62.2 mm
Fitment and Application Details
Compatible with rear brake applications on 1992-2003 Chevrolet S10, 1992-2003 GMC Sonoma, 1996-2000 Isuzu Hombre, 1995-1997 Chevrolet Blazer, 1993-1997 Chevrolet Camaro, 1992-1997 GMC Jimmy, 1993-1997 Pontiac Firebird, 1996 and 1992-1994 Oldsmobile Bravada, and 1992-1994 Chevrolet S10 Blazer. Fits 1992-2003 Chevrolet S10, rear, and fits 1992-2003 GMC Sonoma, rear for direct rear drum replacement service.
This part cross-references OE-style numbers such as 15606280 and 15689587 for the same application. The BD8988-01 is engineered in an ISO-certified factory to meet fit, form, and function requirements, and it reflects DuraGo’s experience in brake component manufacturing.
What This Brake Drum Helps Address
- Rear brake pulsation caused by worn drum surfaces
- Corrosion on exposed brake drum areas
- Reduced braking consistency from heat buildup
- Fitment issues during rear drum replacement on listed vehicles
- Visible rust on open-wheel rear brake assemblies
Installation Notes and Tips
Verify drum diameter, bolt pattern, and center hole dimensions before installation. Inspect rear shoes, hardware, and wheel cylinders for wear before installing a new drum, and confirm the drum is within the maximum discard diameter specification. For best results, clean the braking surface before service and follow the vehicle manufacturer’s rear brake adjustment procedure.
Quality Assurance
DuraGo manufactures this Titanium Series brake drum in an ISO-certified facility and builds it to meet fit, form, and function requirements for the listed rear applications. Part number BD8988-01 is designed for consistent service on Chevrolet S10, GMC Sonoma, and related rear drum brake platforms.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2003 | Chevrolet | S10 | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2003 | GMC | Sonoma | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2002 | Chevrolet | S10 | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2002 | GMC | Sonoma | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2001 | Chevrolet | S10 | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2001 | GMC | Sonoma | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2000 | Chevrolet | S10 | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2000 | GMC | Sonoma | — | Rear | Coated Hat and Edge for Rust Resistance |
| 2000 | Isuzu | Hombre | RWD | Rear | Coated Hat and Edge for Rust Resistance |
| 1999 | Chevrolet | S10 | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1999 | GMC | Sonoma | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1999 | Isuzu | Hombre | RWD | Rear | Coated Hat and Edge for Rust Resistance |
| 1998 | Chevrolet | S10 | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1998 | GMC | Sonoma | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1998 | Isuzu | Hombre | RWD | Rear | Coated Hat and Edge for Rust Resistance |
| 1997 | Chevrolet | Blazer | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1997 | Chevrolet | Camaro | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1997 | Chevrolet | S10 | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1997 | GMC | Jimmy | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1997 | GMC | Sonoma | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1997 | Isuzu | Hombre | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1997 | Pontiac | Firebird | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1996 | Chevrolet | Blazer | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1996 | Chevrolet | Camaro | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1996 | Chevrolet | S10 | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1996 | GMC | Jimmy | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1996 | GMC | Sonoma | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1996 | Isuzu | Hombre | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1996 | Oldsmobile | Bravada | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1996 | Pontiac | Firebird | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1995 | Chevrolet | Blazer | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1995 | Chevrolet | Camaro | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1995 | Chevrolet | LLV | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1995 | Chevrolet | S10 | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1995 | GMC | Jimmy | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1995 | GMC | Sonoma | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1995 | Pontiac | Firebird | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1994 | Chevrolet | Camaro | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1994 | Chevrolet | LLV | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1994 | Chevrolet | S10 | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1994 | Chevrolet | S10 Blazer | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1994 | GMC | Jimmy | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1994 | GMC | Sonoma | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1994 | Oldsmobile | Bravada | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1994 | Pontiac | Firebird | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1993 | Chevrolet | Camaro | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1993 | Chevrolet | LLV | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1993 | Chevrolet | S10 | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1993 | Chevrolet | S10 Blazer | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1993 | GMC | Jimmy | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1993 | GMC | Sonoma | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1993 | GMC | Typhoon | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1993 | Oldsmobile | Bravada | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1993 | Pontiac | Firebird | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1992 | Chevrolet | LLV | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1992 | Chevrolet | S10 | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1992 | Chevrolet | S10 Blazer | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1992 | GMC | Jimmy | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1992 | GMC | Sonoma | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1992 | GMC | Typhoon | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1992 | Oldsmobile | Bravada | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1991 | Chevrolet | LLV | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1990 | Chevrolet | LLV | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1989 | Chevrolet | LLV | — | Rear | Coated Hat and Edge for Rust Resistance |
| 1988 | Chevrolet | LLV | — | Rear | Rear Axle Stamped PCG, PZT, SYZ, SZA; Coated Hat and Edge for Rust Resistance |
| 1987 | Chevrolet | LLV | — | Rear | Rear Axle Stamped PCG, PZT, SYZ, SZA; Coated Hat and Edge for Rust Resistance |
