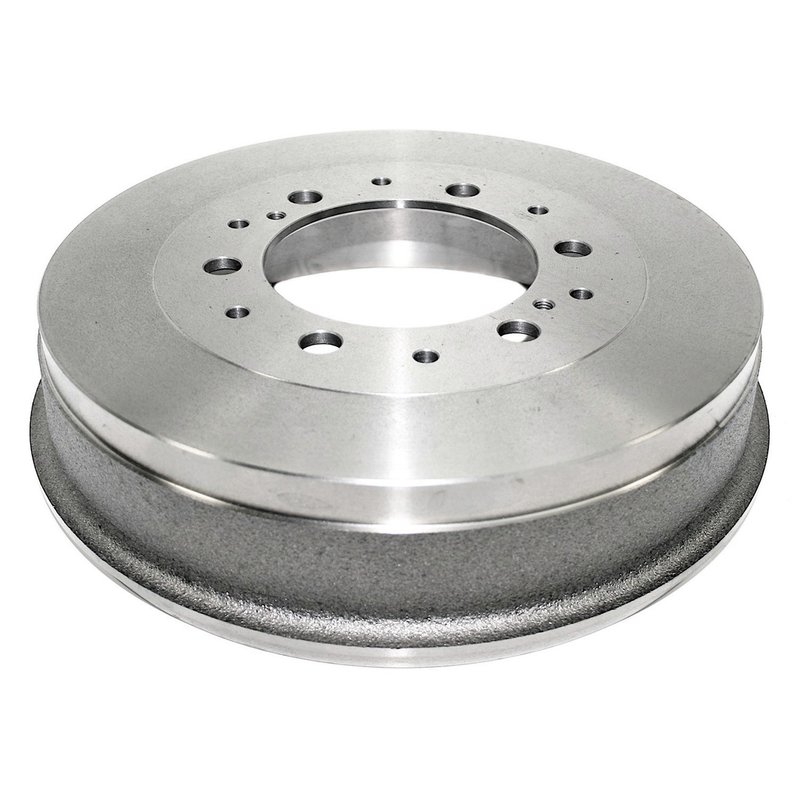

DuraGo BD920104 Brake Drum - Rear
| Brand | DuraGo BD920104 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Bolt Circle Diameter | 5.5 |
| Bolt Circle Diameter | 139.7 |
| Bolt Hole Diameter | 0.57 |
| Bolt Hole Diameter | 14.4 |
| Bolt Hole Quantity | 6 |
| Brake Surface Width | 2.43 |
| Brake Surface Width | 61.7 |
| Center Hole Diameter | 4.25 |
| Center Hole Diameter | 108 |
| Construction | Full Cast |
| Material | Cast Iron |
| Maximum Brake Diameter (Discard) | 10.08 |
| Maximum Brake Diameter (Discard) | 256 |
| Nominal Drum Diameter | 10 |
| Nominal Drum Diameter | 254 |
| Outer Cooling Fins | No |
| Outside Diameter | 12.05 |
| Outside Diameter | 306 |
| Overall Height | 2.89 |
| Overall Height | 73.3 |
| Rust Resistant Coating | No |
| Fits | Toyota · 19 vehicles |
Cast iron construction. Full-cast drum for dependable braking performance.
Brake drum design. Built for consistent friction and smooth stopping.
ISO-certified manufacturing. Made to meet fit, form, and function requirements.
Cross-references Anchor 9779, Four Seasons 35116 and 920104 for the same application. See all 10.
DuraGo BD920104 Rear Brake Drum for Tacoma
The DuraGo BD920104 is a cast iron rear brake drum built for select Toyota Tacoma applications. It is engineered to match fit, form, and function requirements for dependable brake service on 2005-2023 Tacoma rear drum setups.
Key Features
- Cast iron construction for stable braking performance
- Full cast design
- Nominal drum diameter: 10 in. (254 mm)
- Maximum brake diameter discard: 10.08 in. (256 mm)
- Outside diameter: 12.05 in. (306 mm)
- Brake surface width: 2.43 in. (61.7 mm)
- 6-bolt pattern with 5.5 in. (139.7 mm) bolt circle diameter
- Center hole diameter: 4.25 in. (108 mm)
- Overall height: 2.89 in. (73.3 mm)
- No rust resistant coating, ABS tone ring, or outer cooling fins
Product Details
DuraGo manufactures aftermarket brake components through ISO-certified factories and focuses on catalog coverage, dimensional accuracy, and consistent brake drum and rotor applications. The BD920104 brake drum is a direct-fit rear drum option for Toyota Tacoma models listed below, with dimensions that support proper drum-to-shoe contact and service replacement on rear brake systems. This part number, BD920104, is also referenced in aftermarket catalogs under related numbers for the same application.
Compatible With 2016-2023 Toyota Tacoma, rear. Compatible With 2005-2015 Toyota Tacoma, rear, 6 lug. This part cross-references Anchor 9779 for the same application.
Common Repair Uses
- Replacing a worn or out-of-round rear brake drum
- Correcting brake pulsation caused by drum wear
- Restoring proper rear brake shoe contact surface
- Addressing scoring, heat spots, or excessive drum diameter
- Servicing rear drum brake systems on Toyota Tacoma trucks
Installation Notes and Tips
Verify drum diameter, bolt circle, center hole, and brake surface width before installation. Inspect rear brake shoes, wheel cylinders, and hardware for wear before installing the new drum. Measure the existing drum against the discard diameter specification and replace any drum that exceeds service limits. Confirm rear fitment on the Tacoma application and match the 6-lug configuration where applicable.
Quality Assurance
DuraGo states that its brake drum and rotor program is manufactured by ISO-certified factories and built to meet fit, form, and function requirements. The BD920104 is produced to support consistent aftermarket replacement quality for Toyota Tacoma rear brake service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Toyota | Tacoma | Rear | — |
| 2022 | Toyota | Tacoma | Rear | — |
| 2021 | Toyota | Tacoma | Rear | — |
| 2020 | Toyota | Tacoma | Rear | — |
| 2019 | Toyota | Tacoma | Rear | — |
| 2018 | Toyota | Tacoma | Rear | — |
| 2017 | Toyota | Tacoma | Rear | — |
| 2016 | Toyota | Tacoma | Rear | — |
| 2015 | Toyota | Tacoma | Rear | 6 Lug |
| 2014 | Toyota | Tacoma | Rear | 6 Lug |
| 2013 | Toyota | Tacoma | Rear | 6 Lug |
| 2012 | Toyota | Tacoma | Rear | 6 Lug |
| 2011 | Toyota | Tacoma | Rear | 6 Lug |
| 2010 | Toyota | Tacoma | Rear | 6 Lug |
| 2009 | Toyota | Tacoma | Rear | 6 Lug |
| 2008 | Toyota | Tacoma | Rear | 6 Lug |
| 2007 | Toyota | Tacoma | Rear | 6 Lug |
| 2006 | Toyota | Tacoma | Rear | 6 Lug |
| 2005 | Toyota | Tacoma | Rear | 6 Lug |
