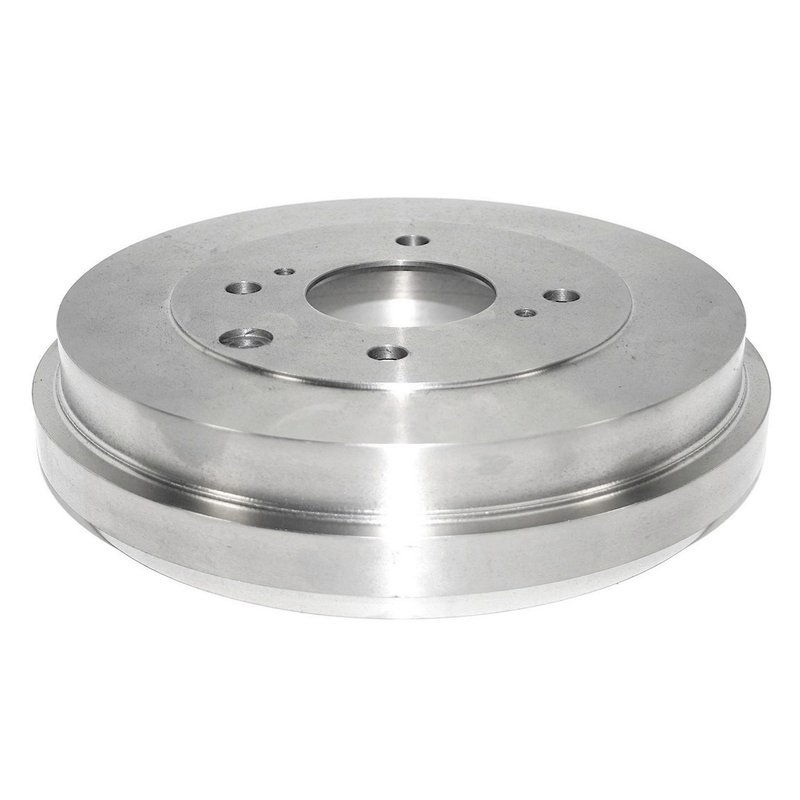

DuraGo BD920114 Brake Drum - Rear
| Brand | DuraGo BD920114 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Bolt Circle Diameter | 4.5 |
| Bolt Circle Diameter | 114.3 |
| Bolt Hole Diameter | 0.51 |
| Bolt Hole Diameter | 12.9 |
| Bolt Hole Quantity | 4 |
| Brake Surface Width | 2.01 |
| Brake Surface Width | 51 |
| Center Hole Diameter | 2.68 |
| Center Hole Diameter | 68 |
| Construction | Full Cast |
| Material | Cast Iron |
| Maximum Brake Diameter (Discard) | 9.06 |
| Maximum Brake Diameter (Discard) | 230 |
| Nominal Drum Diameter | 9 |
| Nominal Drum Diameter | 228.6 |
| Outer Cooling Fins | No |
| Outside Diameter | 10.42 |
| Outside Diameter | 264.7 |
| Overall Height | 2.36 |
| Overall Height | 60 |
| Rust Resistant Coating | No |
| Fits | Nissan · 18 vehicles |
Full cast construction. Cast iron drum delivers dependable braking performance.
Professional-grade program. Built for quality, cataloging, and first-to-market coverage.
ISO-certified manufacturing. Made to meet fit, form, and function requirements.
Cross-references Anchor 9796, Four Seasons 35129 and PRT 920114 for the same application. See all 11.
DuraGo BD920114 Rear Brake Drum
The DuraGo BD920114 is a cast iron rear brake drum built for specific Nissan applications, including the Cube, Sentra, and Versa. It is manufactured in ISO certified factories with attention to fit, form, and function for direct replacement service.
Key Features
- Cast iron construction for dependable braking performance
- Full cast design
- Nominal drum diameter: 228.6 mm (9 in.)
- Outside diameter: 264.7 mm (10.42 in.)
- Brake surface width: 51 mm (2.01 in.)
- Bolt circle diameter: 114.3 mm (4.5 in.)
- 4 bolt holes with 12.9 mm (0.51 in.) bolt hole diameter
- Center hole diameter: 68 mm (2.68 in.)
- Overall height: 60 mm (2.36 in.)
- Maximum brake diameter discard: 230 mm (9.06 in.)
Detailed Description
DuraGo brake drums are part of a long-running aftermarket program focused on catalog coverage and OE-style replacement fitment. The BD920114 uses cast iron construction and full cast manufacturing to match the dimensional requirements of rear drum brake service. This part cross-references PRT 920114 for the same application. Fits 2009-2014 Nissan Cube, rear; Fits 2007-2012 Nissan Sentra, rear; Fits 2007-2012 Nissan Versa, rear. The DuraGo BD920114 is a practical choice when replacing a worn rear brake drum on Nissan Cube, Sentra, or Versa models that use this drum specification.
Common Problems This Part Helps Address
- Rear brake pulsation caused by drum wear or scoring
- Reduced braking consistency from an out-of-spec drum surface
- Noise from a worn or uneven rear brake drum
- Brake service failures related to excessive drum diameter wear
- Restoring proper rear brake contact surface on Nissan Cube, Sentra, and Versa applications
Installation Notes and Tips
Verify drum diameter, bolt pattern, center bore, and brake surface width before installation. Inspect rear brake shoes, wheel cylinders, and hardware condition during service, and measure the existing drum against the maximum brake diameter discard specification. Confirm rear fitment on 2009-2014 Nissan Cube, 2007-2012 Nissan Sentra, and 2007-2012 Nissan Versa before ordering.
Quality Assurance
DuraGo manufactures this brake drum in ISO certified factories and builds its brake drum and rotor program around fit, form, and function requirements. The brand’s aftermarket cataloging focus supports accurate application matching for rear brake service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Nissan | Cube | — | — | Rear | — |
| 2013 | Nissan | Cube | — | — | Rear | — |
| 2012 | Nissan | Cube | — | — | Rear | — |
| 2012 | Nissan | Sentra | — | — | Rear | — |
| 2012 | Nissan | Versa | 1.8L | L4 | Rear | — |
| 2011 | Nissan | Cube | — | — | Rear | — |
| 2011 | Nissan | Sentra | — | — | Rear | — |
| 2011 | Nissan | Versa | 1.8L | L4 | Rear | — |
| 2010 | Nissan | Cube | — | — | Rear | — |
| 2010 | Nissan | Sentra | — | — | Rear | — |
| 2010 | Nissan | Versa | 1.8L | L4 | Rear | — |
| 2009 | Nissan | Cube | — | — | Rear | — |
| 2009 | Nissan | Sentra | — | — | Rear | — |
| 2009 | Nissan | Versa | 1.8L | L4 | Rear | — |
| 2008 | Nissan | Sentra | — | — | Rear | — |
| 2008 | Nissan | Versa | — | — | Rear | — |
| 2007 | Nissan | Sentra | — | — | Rear | — |
| 2007 | Nissan | Versa | — | — | Rear | — |
