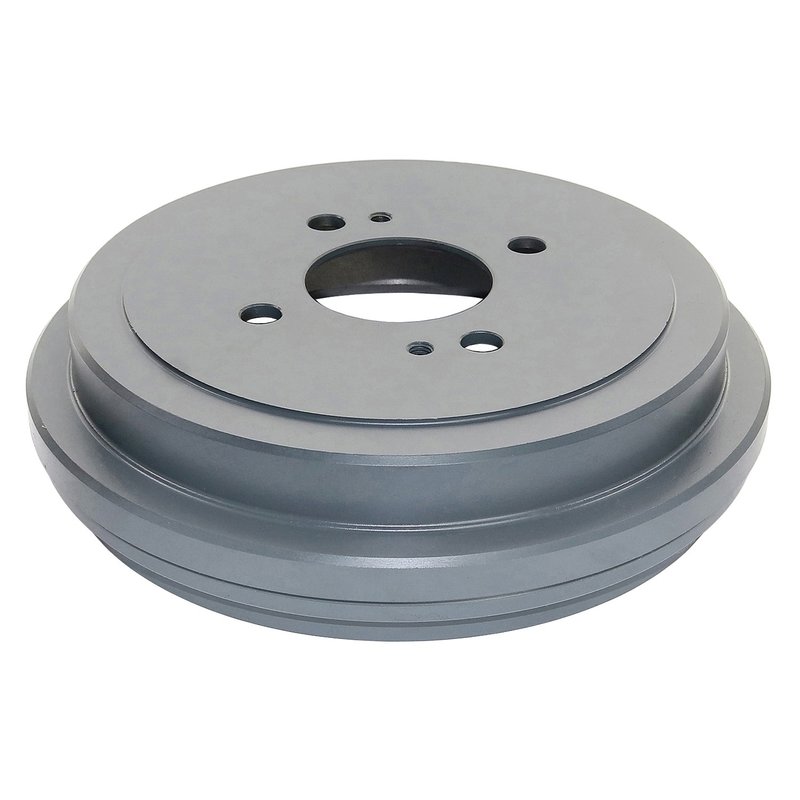

DuraGo BD920190-01 Brake Drum - Rear
DuraGo Brake Drum for Nissan Rear Applications
The DuraGo Titanium Series brake drum is built for rear brake service on select Nissan models, including the Kicks, Kicks Play, and Versa. Part number BD920190-01 combines cast iron construction with a corrosion-resistant exterior coating to help maintain appearance and durability in exposed wheel areas.
- Cast iron brake drum with full cast construction
- Rust-resistant coating on the exterior surface
- Titanium gray finish for vehicles with open wheel designs
- Nominal drum diameter: 8 in. (203.3 mm)
- Maximum brake diameter discard: 8.05 in. (204.5 mm)
- Outside diameter: 9.65 in. (245 mm)
- Brake surface width: 1.69 in. (42.9 mm)
- Bolt circle diameter: 3.94 in. (100 mm)
- 4 bolt holes with 0.5 in. (12.8 mm) diameter
- Overall height: 2.35 in. (59.7 mm)
- Center hole diameter: 2.4 in. (61 mm)
Detailed Product Overview
BD920190-01 is engineered to meet fit, form, and function requirements from an ISO-certified manufacturing environment. The drum is designed for rear brake service on 2017-2024 Nissan Kicks, 2020-2025 Nissan Versa, and 2025-2026 Nissan Kicks Play, with a coated hat and edge for added rust resistance. DuraGo draws on decades of brake component experience to produce a replacement drum that supports consistent brake surface geometry and a clean exterior finish.
This part cross-references Nissan OE part number 432065RB0B for the same application.
What This Brake Drum Helps Address
- Rear brake drum wear that affects braking consistency
- Corrosion on exposed drum surfaces and edges
- Brake noise caused by uneven or worn drum surfaces
- Reduced braking performance from out-of-spec drum diameter
- Visible rust on open-wheel rear brake assemblies
Installation Notes and Fitment
Fits 2017-2024 Nissan Kicks, rear. Fits 2020-2025 Nissan Versa, rear. Fits 2025-2026 Nissan Kicks Play, rear. Verify drum diameter, bolt pattern, and brake surface width against the vehicle before installation. Inspect rear brake shoes, hardware, and wheel cylinders for wear during service so the new drum can seat properly.
Quality Assurance
DuraGo manufactures this brake drum in an ISO-certified factory to support consistent fit and dimensional accuracy. The Titanium Series coating is applied to help defend the exterior against corrosion, and the design reflects DuraGo’s long-standing brake component development experience.
| Brand | DuraGo |
|---|---|
| Part Number | BD920190-01 |
| Material | Cast iron |
| Maximum Brake Diameter (Discard) | 204.5 |
| Maximum Brake Diameter (Discard) | 8.05 |
| Bolt Hole Diameter | 0.5 |
| Bolt Hole Diameter | 12.8 |
| Rust Resistant Coating | Yes |
| Bolt Hole Quantity | 4 |
| Overall Height | 2.35 |
| Overall Height | 59.7 |
| Outside Diameter | 245 |
| Outside Diameter | 9.65 |
| ABS Tone Ring Included | No |
| Outer Cooling Fins | No |
| Nominal Drum Diameter | 203.3 |
| Nominal Drum Diameter | 8 |
| Center Hole Diameter | 2.4 |
| Center Hole Diameter | 61 |
| Bolt Circle Diameter | 100 |
| Bolt Circle Diameter | 3.94 |
| Brake Surface Width | 1.69 |
| Brake Surface Width | 42.9 |
| Construction | Full cast |
This part fits 16 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2026 | Nissan | Kicks Play | Rear | Coated Hat and Edge for Rust Resistance |
| 2025 | Nissan | Kicks Play | Rear | Coated Hat and Edge for Rust Resistance |
| 2025 | Nissan | Versa | Rear | Coated Hat and Edge for Rust Resistance |
| 2024 | Nissan | Kicks | Rear | Coated Hat and Edge for Rust Resistance |
| 2024 | Nissan | Versa | Rear | Coated Hat and Edge for Rust Resistance |
| 2023 | Nissan | Kicks | Rear | Coated Hat and Edge for Rust Resistance |
| 2023 | Nissan | Versa | Rear | Coated Hat and Edge for Rust Resistance |
| 2022 | Nissan | Kicks | Rear | Coated Hat and Edge for Rust Resistance |
| 2022 | Nissan | Versa | Rear | Coated Hat and Edge for Rust Resistance |
| 2021 | Nissan | Kicks | Rear | Coated Hat and Edge for Rust Resistance |
| 2021 | Nissan | Versa | Rear | Coated Hat and Edge for Rust Resistance |
| 2020 | Nissan | Kicks | Rear | Coated Hat and Edge for Rust Resistance |
| 2020 | Nissan | Versa | Rear | Coated Hat and Edge for Rust Resistance |
| 2019 | Nissan | Kicks | Rear | Coated Hat and Edge for Rust Resistance |
| 2018 | Nissan | Kicks | Rear | Coated Hat and Edge for Rust Resistance |
| 2017 | Nissan | Kicks | Rear | Coated Hat and Edge for Rust Resistance |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
