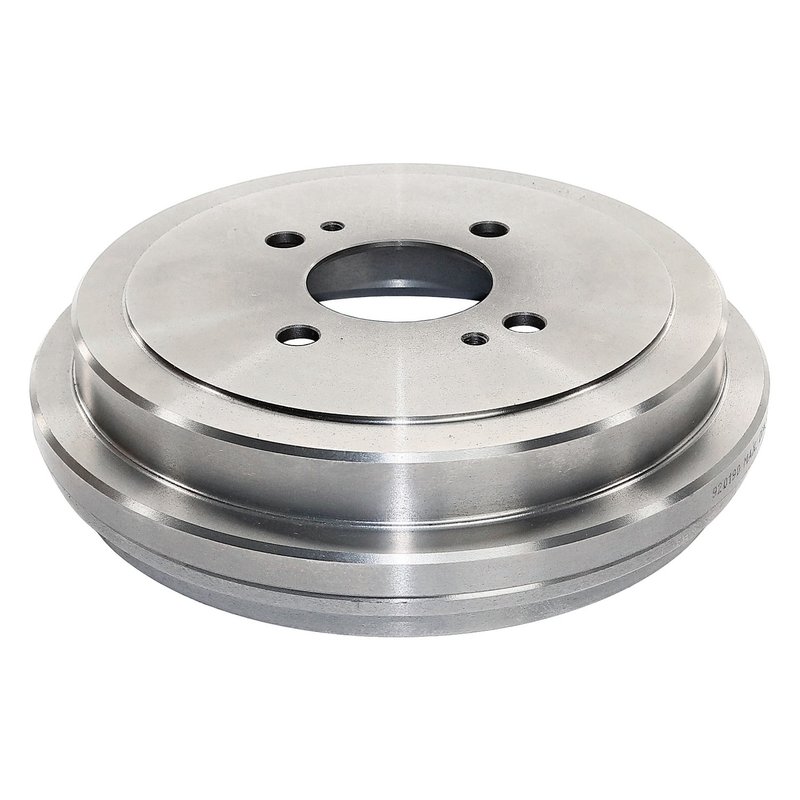

DuraGo BD920190 Brake Drum - Rear

DuraGo BD920190 Rear Brake Drum

The DuraGo BD920190 is a rear brake drum built for select Nissan applications, including Nissan Kicks, Nissan Kicks Play, and Nissan Versa. It uses full cast iron construction for consistent braking performance and dimensional stability in everyday driving.

Key Features

• Full cast iron construction
• Nominal drum diameter: 8 in. (203.3 mm)
• Maximum brake diameter discard: 8.05 in. (204.5 mm)
• Outside diameter: 9.65 in. (245 mm)
• Brake surface width: 1.69 in. (42.9 mm)
• 4-bolt pattern with 3.94 in. (100 mm) bolt circle diameter
• Center hole diameter: 2.4 in. (61 mm)
• Overall height: 2.35 in. (59.7 mm)
• ABS tone ring not included
• Outer cooling fins not included

Detailed Description

DuraGo manufactures aftermarket brake components in ISO-certified factories with attention to fit, form, and function. The BD920190 rear brake drum is engineered to match the listed dimensions for proper drum brake service on rear applications. Its cast iron construction supports stable heat handling and dependable contact at the brake surface, while the specified bolt pattern and center bore help maintain correct wheel and hub alignment.

Fits 2017-2024 Nissan Kicks, rear. Fits 2025-2026 Nissan Kicks Play, rear. Fits 2020-2025 Nissan Versa, rear. This part cross-references 432065RB0B for the same application. The DuraGo BD920190 is a direct-fit rear drum option for Nissan Kicks and Nissan Versa brake service where the listed dimensions and rear position match the vehicle.

What It Helps Address

• Rear brake drum wear or scoring
• Brake pulsation caused by out-of-spec drum surfaces
• Reduced braking consistency from an aged drum
• Noise related to worn drum brake contact surfaces
• Service replacement for rear drum brake maintenance

Installation Notes and Tips

Verify drum diameter, bolt circle, center hole, and brake surface width against the removed part before installation. Inspect rear brake shoes, hardware, and wheel cylinders during service, and confirm the drum is within the maximum discard diameter before use. Clean the braking surface and hub mating area before assembly to support proper seating.

Quality Assurance

DuraGo brake drums are manufactured in ISO-certified factories and built to meet fit, form, and function requirements for the listed applications. The BD920190 reflects DuraGo’s focus on cataloged coverage and dimensional accuracy for rear brake service.
