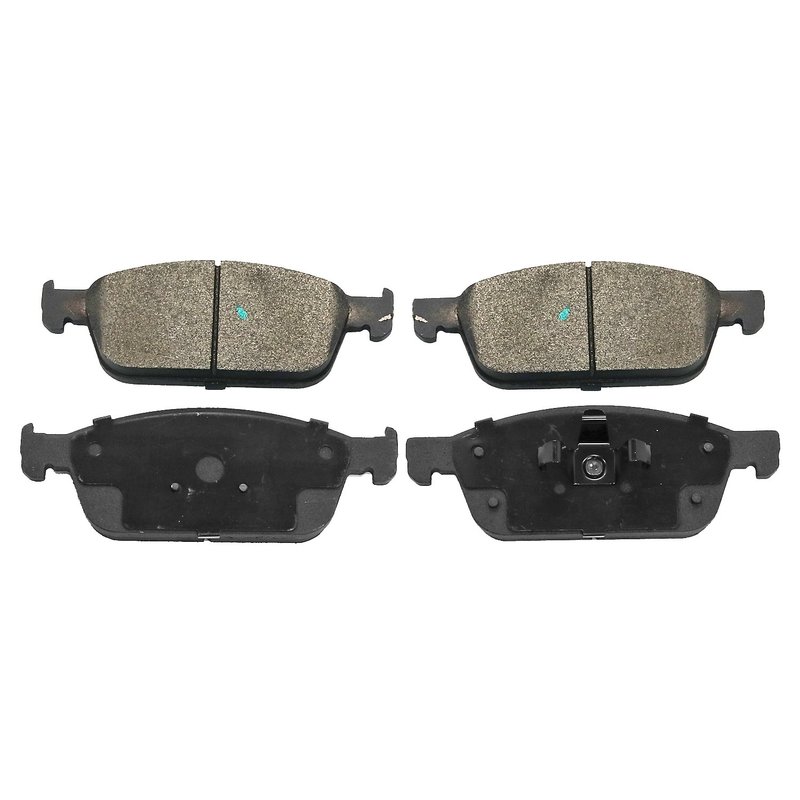

DuraGo BP1645MS Disc Brake Pad Set - Front
OE Quality 60-Day Returns
DuraGo

DuraGo BP1645MS Disc Brake Pad Set - Front

Brand DuraGo BP1645MS
Position Front
Outer Pad Friction Material Thickness 0.43
Outer Pad Friction Material Thickness 11
Pad Wear Sensor Included Yes
Slotted Yes
Friction Material Composition Semi-metallic
Mounting Hardware Included No
Grade Type Regular
Pad Shims Included Yes
Backing Material Iron
Friction Material Attachment Bonded
Inner Pad Friction Material Thickness 0.46
Inner Pad Friction Material Thickness 11.7
Abutment Clips Included No
Pad Wear Sensor Type Mechanical
Chamfered Edges Yes
Outer Pad Height 2.51
Outer Pad Height 63.8
Inner Pad Height 2.51
Inner Pad Height 63.8
Outer Pad Width 136
Outer Pad Width 5.35
Inner Pad Width 136
Inner Pad Width 5.35
Outer Pad Overall Thickness 0.68
Outer Pad Overall Thickness 17.2
Inner Pad Overall Thickness 0.70
Inner Pad Overall Thickness 17.9
Inner Pad Plate Thickness 0.24
Inner Pad Plate Thickness 6.2
Outer Pad Plate Thickness 0.24
Fits Ford · 10 vehicles

Semi-metallic friction. Balanced for everyday driving safety, reliability, and consistent control.

Slotted design. Helps manage heat and maintain confident braking across varied conditions.

Wear sensor included. Mechanical sensor helps alert you when pad service is needed.

$35.93Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $35.93
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Pad Set options

DuraGo BP1645MS Front Brake Pad Set

The DuraGo BP1645MS disc brake pad set is built for front brake service on select Ford Transit Connect models. It uses a semi-metallic friction formula with slotted, chamfered pads, mechanical wear sensor support, and included shims to help maintain consistent braking feel and control in everyday driving.

Key Features

  • Fits 2021-2023 Ford Transit Connect, front
  • Fits 2014-2020 Ford Transit Connect, front
  • Semi-metallic friction material for regular-duty braking applications
  • Slotted design with chamfered edges for smoother pad operation
  • Mechanical pad wear sensor included
  • Pad shims included for added fitment support
  • Bonded friction material with iron backing plate
  • Independently tested for wear and noise squeal protocols

Detailed Description

DuraGo BP1645MS is a front disc brake pad set engineered for Ford Transit Connect brake pad replacement service. The pad design combines semi-metallic friction material with slotted faces and chamfered edges to support stable braking response, while the included shims and mechanical wear sensor help address common service requirements on daily-driven vehicles. This part number, BP1645MS, is a practical choice for drivers looking for a front brake pad replacement for 2014-2023 Ford Transit Connect models.

DuraGo manufactures brake friction products in ISO/TS 16949 certified facilities and develops pad formulas for fit and function across a wide range of vehicles. BP1645MS is designed around everyday driving safety and reliability, with friction materials tested for wear and noise squeal performance. If you are searching for Ford Transit Connect front brake pads, DuraGo BP1645MS provides a direct-fit service option for the listed applications.

Common Problems This Part Can Address

  • Worn front brake pads that reduce stopping performance
  • Brake squeal caused by aged or uneven pad friction material
  • Brake pulsation or inconsistent pedal feel from degraded pad surfaces
  • Brake wear indicator service needs on equipped vehicles
  • Reduced braking confidence during routine city and highway driving

Installation Notes and Tips

Confirm rotor condition, caliper operation, and pad hardware condition before installation. Clean the caliper bracket contact points, verify pad movement in the abutments, and follow the vehicle manufacturer’s brake service procedure. Because mounting hardware and abutment clips are not included, reuse or replace those components as needed during service. After installation, bed the pads according to standard brake-in procedures to help establish even friction transfer.

Quality Assurance

DuraGo brake pads are produced in state-of-the-art ISO/TS 16949 certified facilities and undergo testing for wear and noise squeal protocols. This part number is backed by DuraGo’s brake friction manufacturing standards for consistent service quality.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2023FordTransit ConnectFrontSemi-Metallic
2022FordTransit ConnectFrontSemi-Metallic
2021FordTransit ConnectFrontSemi-Metallic
2020FordTransit ConnectFrontCompatible with vehicles requiring disc brake pad replacements.
2019FordTransit ConnectFrontCompatible with vehicles requiring disc brake pad replacements.
2018FordTransit ConnectFrontCompatible with vehicles requiring disc brake pad replacements.
2017FordTransit ConnectFrontCompatible with vehicles requiring disc brake pad replacements.
2016FordTransit ConnectFrontCompatible with vehicles requiring disc brake pad replacements.
2015FordTransit ConnectFrontCompatible with vehicles requiring disc brake pad replacements.
2014FordTransit ConnectFrontCompatible with vehicles requiring disc brake pad replacements.
