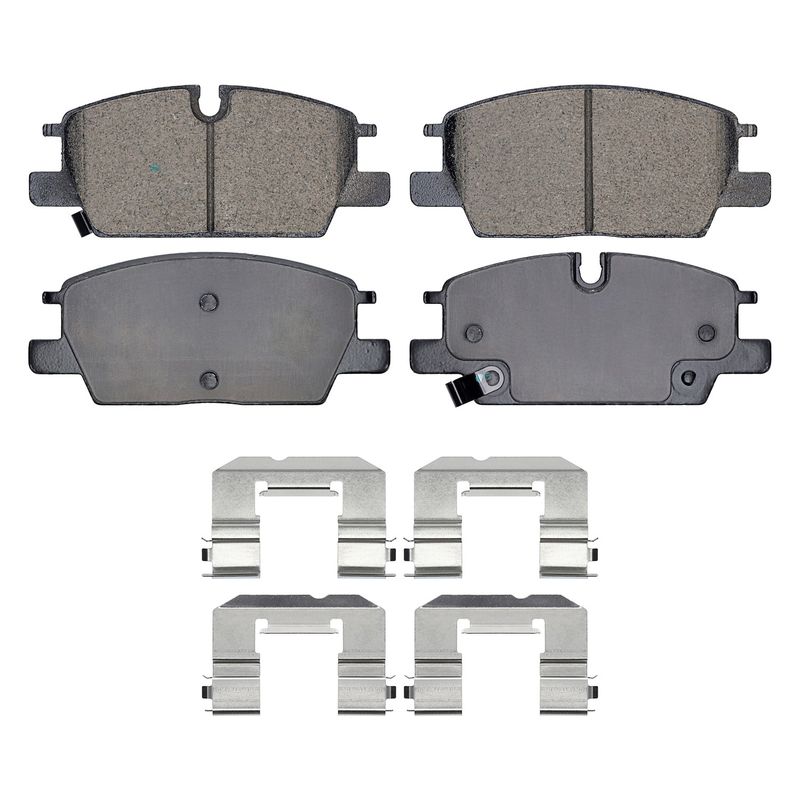

DuraGo BP2345C Disc Brake Pad Set - Front

DuraGo BP2345C Front Brake Pad Set

DuraGo BP2345C is a front disc brake pad set built for everyday driving safety, consistent pedal feel, and dependable stopping performance. It uses ceramic friction material with slotted, chamfered pads, plus shims and abutment clips for a quieter, more controlled brake service on select Buick, Cadillac, Chevrolet, and GMC applications.

Key Features

• Ceramic friction material for stable braking performance
• Slotted design helps manage heat and brake dust buildup
• Chamfered edges support smoother pad engagement
• Pad shims included for noise control
• Pad wear sensor included with mechanical sensor type
• Bonded friction material on an iron backing plate
• Abutment clips included for proper pad seating
• Outer and inner pad thickness: 11.9 mm (0.47 in)
• Outer and inner pad overall thickness: 18 mm (0.71 in)
• Pad height: 59.7 mm (2.35 in)
• Pad width: 140.7 mm (5.54 in)

Detailed Description

DuraGo BP2345C brake pads are engineered for front axle service on vehicles that call for a ceramic disc brake pad set with wear sensor support and noise-reduction hardware. The pad design combines slotted friction surfaces, chamfered edges, and included shims to help deliver predictable braking response and reduced squeal during normal commuting, stop-and-go traffic, and highway driving. This part number is a direct fit for select 2020-2025 Cadillac CT4, 2021-2025 Chevrolet Equinox, 2022-2025 Chevrolet Malibu, 2024-2025 Chevrolet Trax, 2022-2025 GMC Terrain, and 2024-2025 Buick Envista front brake applications. It also fits 2021 GMC Terrain front applications with 300 mm rotor diameter and ceramic specification. DuraGo BP2345C is a practical OE-style replacement choice when you need front brake pad service on these platforms.

DuraGo’s brake friction program is developed around fit, function, and everyday reliability, with formulas independently tested for wear and noise squeal protocols in ISO/TS 16949 certified manufacturing facilities. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

What This Brake Pad Set Helps Address

• Brake squeal during light or moderate stops
• Reduced braking consistency from worn front pads
• Uneven pad contact caused by worn friction material
• Brake wear indicator service needs on supported vehicles
• Front-end braking performance loss from aged pads

Installation Notes and Tips

Verify rotor diameter, caliper configuration, and vehicle trim before installation, especially on the 2021 GMC Terrain application with 300 mm rotor diameter. Inspect rotors, caliper slides, and abutment points during service, and replace worn hardware surfaces as needed. Clean the caliper bracket and pad contact areas before installing the new pads, then confirm proper sensor routing and brake pedal feel after assembly.

Quality Assurance

DuraGo manufactures brake pads in ISO/TS 16949 certified facilities and states that its friction formulas are independently tested for wear and noise squeal protocols. The BP2345C uses ceramic friction material, bonded construction, included shims, and wear sensor support to meet the demands of routine front brake service.
