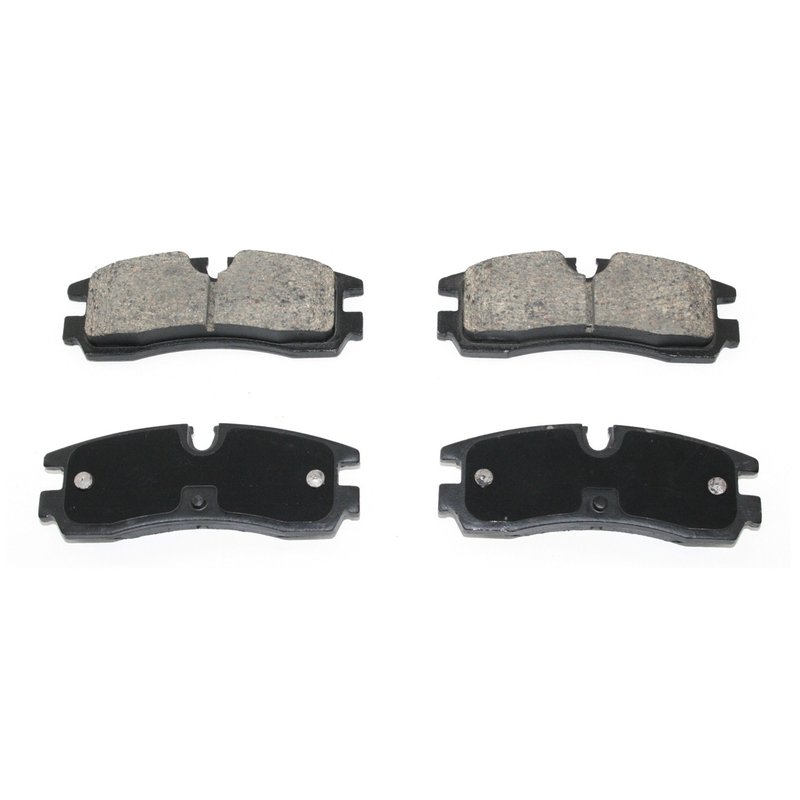

DuraGo BP754MS Disc Brake Pad Set - Rear
DuraGo BP754MS Rear Brake Pads for Seville
DuraGo BP754MS is a rear disc brake pad set for 1998-2003 Cadillac Seville applications that require disc brake pad replacement. It combines semi-metallic friction material, slotted pad design, chamfered edges, and electronic wear sensor support for controlled braking response and driver feedback.
Key Features
- Fits 1998-2003 Cadillac Seville, rear
- Semi-metallic friction material with bonded attachment
- Slotted design with chamfered edges for consistent pad contact
- Electronic pad wear sensor included
- Pad shims included for noise control support
- Iron backing material with regular grade construction
- Outer and inner pad thickness: 8.9 mm (0.35 in)
- Overall pad thickness: 13.9 mm (0.55 in)
Detailed Description
Built for everyday driving, the DuraGo BP754MS brake pad set is engineered to deliver stable vehicle control and dependable stopping performance across a range of road conditions. The semi-metallic friction formula is paired with slotted surfaces and chamfered edges to support smoother engagement, while the included shims and electronic wear sensor help address common brake service concerns on the Cadillac Seville rear axle. DuraGo manufactures brake friction products in ISO/TS 16949 certified facilities and tests formulas for wear and noise squeal protocols. This part cross-references Wagner Brake PD754 and Raybestos Brakes PGD754M for the same application.
What This Brake Pad Set Helps Address
- Rear brake pad wear on a 1998-2003 Cadillac Seville
- Brake noise or squeal during normal stopping
- Reduced pedal confidence from worn friction material
- Uneven braking feel caused by aged rear pads
- Wear sensor warning service on electronic sensor-equipped systems
Installation Notes and Tips
Verify rear brake pad dimensions and sensor connection style before installation on the Cadillac Seville. Inspect rotors, caliper hardware, and guide pins for wear or corrosion during service. Because mounting hardware and abutment clips are not included, reuse or replace those components as needed based on condition. Proper bedding-in after installation helps establish consistent friction transfer and braking feel.
Quality Assurance
DuraGo brake pads are produced in ISO/TS 16949 certified facilities and the friction formulas are tested for wear and noise squeal performance. Part number BP754MS is built to meet regular-duty brake service needs for rear disc brake replacement on the Cadillac Seville.
| Brand | DuraGo |
|---|---|
| Part Number | BP754MS |
| Outer Pad Friction Material Thickness | 0.35 |
| Outer Pad Friction Material Thickness | 8.9 |
| Pad Wear Sensor Included | Yes |
| Slotted | Yes |
| Friction Material Composition | Semi-metallic |
| Mounting Hardware Included | No |
| Grade Type | Regular |
| Pad Shims Included | Yes |
| Backing Material | Iron |
| Friction Material Attachment | Bonded |
| Inner Pad Friction Material Thickness | 0.35 |
| Inner Pad Friction Material Thickness | 8.9 |
| Abutment Clips Included | No |
| Pad Wear Sensor Type | Electronic |
| Chamfered Edges | Yes |
| Outer Pad Height | 1.61 |
| Outer Pad Height | 40.9 |
| Inner Pad Height | 1.61 |
| Inner Pad Height | 40.9 |
| Outer Pad Width | 107.7 |
| Outer Pad Width | 4.24 |
| Inner Pad Width | 107.7 |
| Inner Pad Width | 4.24 |
| Outer Pad Overall Thickness | 0.55 |
| Outer Pad Overall Thickness | 13.9 |
| Inner Pad Overall Thickness | 0.55 |
| Inner Pad Overall Thickness | 13.9 |
| Inner Pad Plate Thickness | 0.2 |
| Inner Pad Plate Thickness | 5 |
| Outer Pad Plate Thickness | 0.2 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Cadillac | Seville | Rear | Compatible with vehicles requiring disc brake pad replacements. |
| 2002 | Cadillac | Seville | Rear | Compatible with vehicles requiring disc brake pad replacements. |
| 2001 | Cadillac | Seville | Rear | Compatible with vehicles requiring disc brake pad replacements. |
| 2000 | Cadillac | Seville | Rear | Compatible with vehicles requiring disc brake pad replacements. |
| 1999 | Cadillac | Seville | Rear | Compatible with vehicles requiring disc brake pad replacements. |
| 1998 | Cadillac | Seville | Rear | Compatible with vehicles requiring disc brake pad replacements. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
