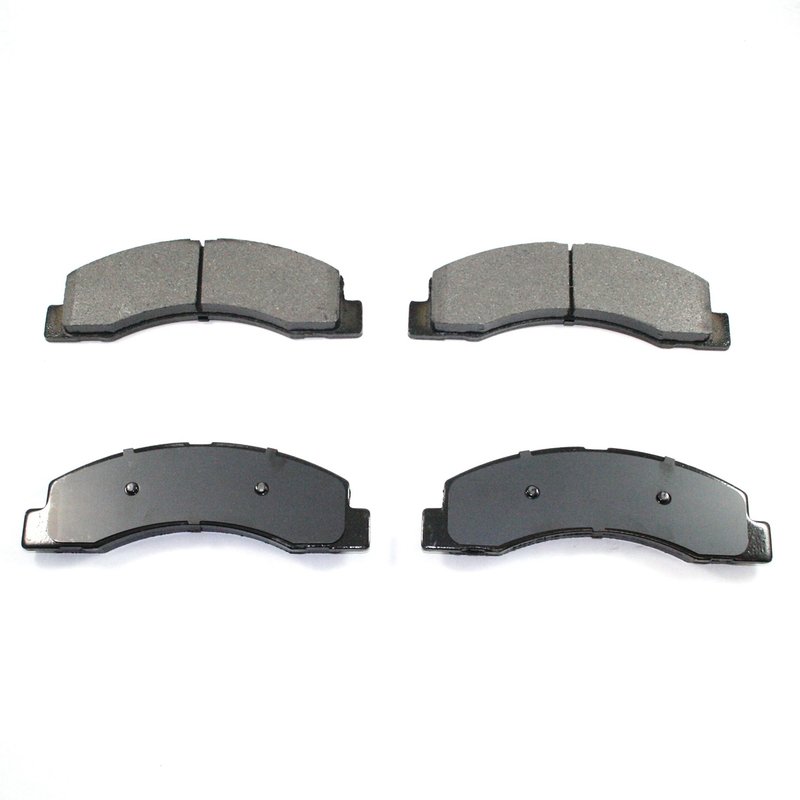

DuraGo BP824C Disc Brake Pad Set - Front

Overview of DuraGo BP824C Disc Brake Pad Set

The DuraGo BP824C disc brake pad set is engineered for reliable braking performance on Ford Excursion, F-250 Super Duty, and F-350 Super Duty models. Designed with ceramic friction material and slotted pads, this set offers consistent stopping power and reduced brake dust.

• Ceramic friction material for smooth, quiet braking
• Slotted design to improve heat dissipation and reduce brake fade
• Chamfered edges to minimize noise and vibration
• Includes pad shims for proper fit and noise reduction
• Iron backing plates with bonded friction material for durability

Technical Specifications and Features

The DuraGo BP824C brake pads feature an outer and inner pad friction material thickness of 11.7 mm (0.46 inches), ensuring long-lasting wear. Both pads have an overall thickness of 17.8 mm (0.7 inches) and a height of 63.8 mm (2.51 inches) with a width of 193.3 mm (7.61 inches). The friction material is bonded securely to iron backing plates measuring 6.1 mm (0.24 inches) thick. The slotted design enhances heat dissipation during braking, while chamfered edges help reduce noise and vibration. Although pad wear sensors and mounting hardware are not included, the set comes with pad shims to ensure proper installation and fitment.

Compatible Vehicles and Applications

This disc brake pad set is compatible with select Ford heavy-duty trucks, specifically the Ford Excursion, F-250 Super Duty, and F-350 Super Duty models. The DuraGo BP824C is designed to meet the braking demands of these vehicles, providing consistent performance under various driving conditions.

Common Issues Addressed by DuraGo BP824C Brake Pads

• Brake fade caused by excessive heat during heavy towing or hauling
• Brake noise and vibration due to uneven pad wear or poor fit
• Premature pad wear from inferior friction materials
• Brake dust accumulation affecting wheel appearance
• Reduced braking efficiency from worn or damaged pads

Installation Notes and Tips

When installing the DuraGo BP824C brake pads, ensure the rotor surface is clean and free of debris. Since mounting hardware and abutment clips are not included, reuse existing hardware if in good condition or replace as necessary. The included pad shims should be installed to reduce noise and ensure proper pad alignment. Verify pad orientation and fitment specific to Ford Excursion, F-250 Super Duty, and F-350 Super Duty models before final installation.

Quality Assurance and Warranty

DuraGo brake pads are manufactured to meet industry standards for safety and performance. The BP824C set uses bonded ceramic friction material for consistent wear and durability. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
