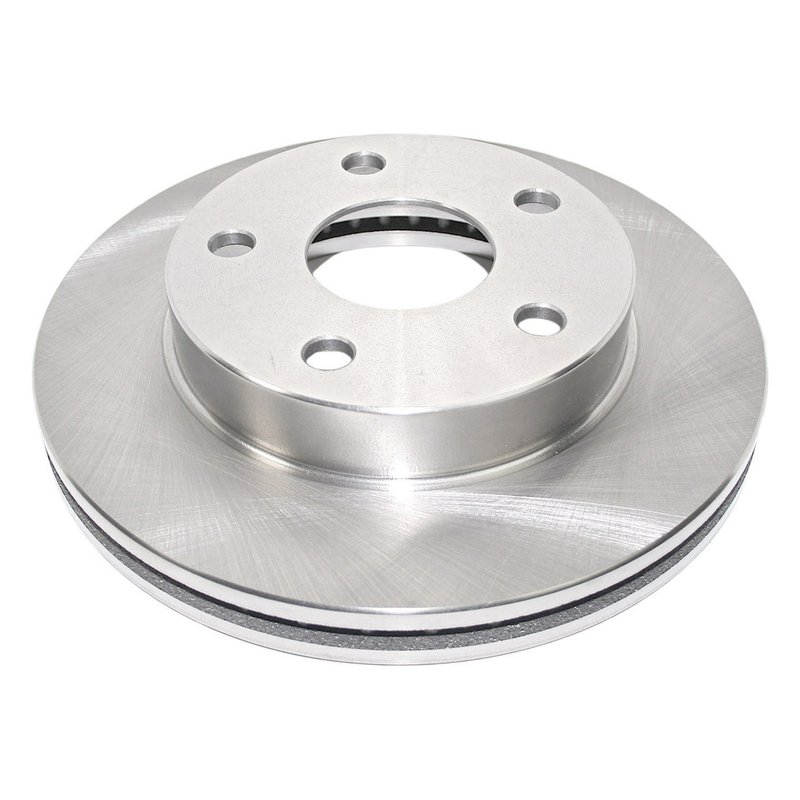

DuraGo BR31048 Disc Brake Rotor - Front
| Brand | DuraGo BR31048 |
|---|---|
| Position | Front |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.44 |
| Center Hole Diameter | 62 |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.91 |
| Discard Thickness | 23 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Diameter | 0.58 |
| Mounting Bolt Hole Diameter | 14.8 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.98 |
| Nominal Thickness | 25 |
| Outside Diameter | 10.04 |
| Outside Diameter | 255 |
| Overall Height | 2.09 |
| Overall Height | 53 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Vented |
| Fits | Toyota · 4 vehicles |
OE-style fit. Manufactured to meet fit, form, and function requirements.
Vented design. Helps promote efficient airflow through the rotor.
Cast iron construction. Full-cast rotor built for dependable braking performance.
Cross-references Nissens 96174, 31048 and 125058 for the same application. See all 8.
DuraGo BR31048 Front Brake Rotor
The DuraGo BR31048 is a front disc brake rotor built for 1991-1994 Toyota Previa applications. It uses a full cast, vented cast iron design with a non-directional brake surface for consistent pad contact and straightforward service replacement.
Key Features
- Fits 1991-1994 Toyota Previa, front
- Part number BR31048 for direct catalog lookup
- Cast iron, full cast construction
- Vented rotor design for front brake use
- Non-directional brake surface
- 5-bolt mounting pattern with 114.3 mm bolt circle
- Outside diameter: 255 mm (10.04 in)
- Nominal thickness: 25 mm (0.98 in)
- Discard thickness: 23 mm (0.91 in)
- Center hole diameter: 62 mm (2.44 in)
Detailed Description
DuraGo BR31048 is a conventional front brake rotor engineered for the Toyota Previa from 1991 through 1994. The rotor is manufactured from cast iron in a full cast construction and measures 255 mm in outside diameter with a 25 mm nominal thickness, giving it the dimensions needed for the specified front brake application. The vented design supports front axle braking demands, while the non-directional surface simplifies rotor service and pad bedding. DuraGo manufactures brake drums and rotors in ISO-certified factories and focuses on fit, form, and function for aftermarket replacement parts. This part cross-references Nissens 96174 for the same application.
Common Replacement Reasons
- Brake pulsation or steering wheel shake during braking
- Rotor wear approaching discard thickness
- Scoring, grooves, or uneven pad contact on the braking surface
- Noise caused by worn or heat-affected front rotors
- Service replacement for a 1991-1994 Toyota Previa front brake rotor
Installation Notes and Tips
Confirm rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly to reduce runout concerns, and inspect pads, calipers, and hardware condition during brake service. After installation, follow the vehicle manufacturer’s brake bedding procedure for proper pad and rotor seating. BR31048 is listed for the front position on 1991-1994 Toyota Previa models.
Quality Assurance
DuraGo brake rotors are produced by ISO-certified factories and built to meet fit, form, and function requirements for aftermarket brake service. The brand has over 45 years of experience in automotive aftermarket manufacturing, and BR31048 is part of its brake drum and rotor program.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1994 | Toyota | Previa | Front | — |
| 1993 | Toyota | Previa | Front | — |
| 1992 | Toyota | Previa | Front | — |
| 1991 | Toyota | Previa | Front | — |
