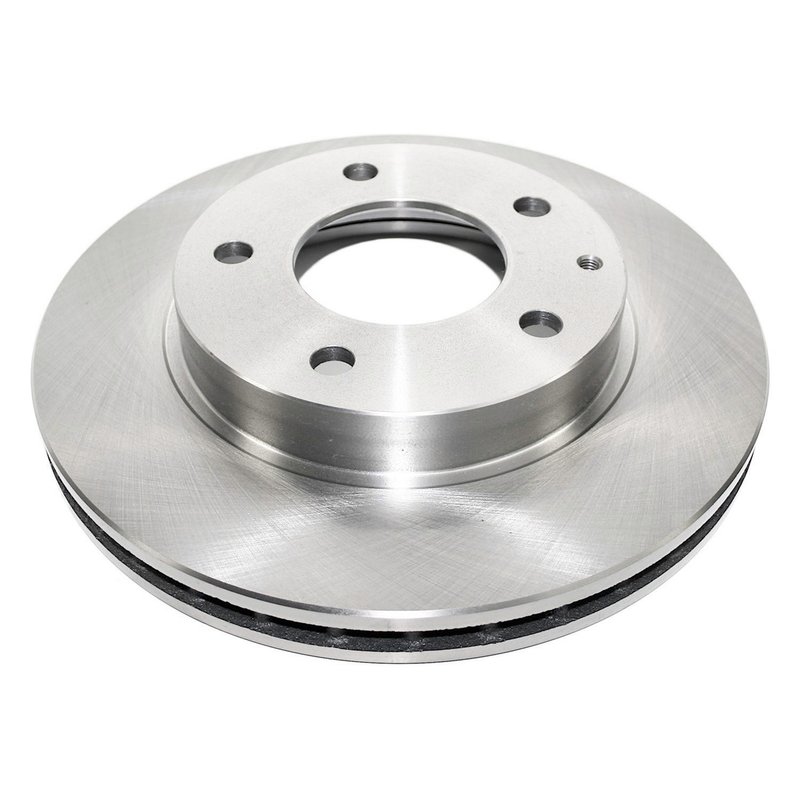

DuraGo BR31052 Disc Brake Rotor - Front
| Brand | DuraGo BR31052 |
|---|---|
| Position | Front |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.83 |
| Center Hole Diameter | 72 |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.87 |
| Discard Thickness | 22 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Diameter | 0.49 |
| Mounting Bolt Hole Diameter | 12.5 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.94 |
| Nominal Thickness | 24 |
| Outside Diameter | 10.16 |
| Outside Diameter | 258 |
| Overall Height | 1.91 |
| Overall Height | 48.6 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Vented |
| Fits | Mazda and Ford · 25 vehicles |
OE-style fit. Manufactured to meet fit, form, and function requirements.
Vented design. Helps air flow through the rotor for more consistent braking.
Cast iron construction. Full cast rotor with a non-directional brake surface.
Cross-references Bosch 96318, Dorman - HELP 31052 and Parts Authority PRT1845 for the same application. See all 12.
DuraGo BR31052 Front Vented Brake Rotor
The DuraGo BR31052 is a front disc brake rotor built for specific Mazda and Ford applications. It uses a full cast iron construction with a vented design and a non-directional brake surface for straightforward service and consistent brake pad contact.
Compatible with 1993-2002 Mazda 626 front, 1993-1997 Ford Probe front, 1993-1997 Mazda MX-6 front, 2001-2003 Mazda Protege front, and 2002-2003 Mazda Protege5 front, this rotor is sized for direct replacement use on the listed vehicles.
Key Features
- Part number: BR31052
- Front disc brake rotor for listed Mazda and Ford applications
- Cast iron, full cast construction
- Vented rotor design for front brake service
- Non-directional brake surface
- 5-bolt mounting pattern
- Outside diameter: 258 mm (10.16 in.)
- Nominal thickness: 24 mm (0.94 in.)
- Discard thickness: 22 mm (0.87 in.)
- Center hole diameter: 72 mm (2.83 in.)
- Mounting bolt circle diameter: 114.3 mm (4.5 in.)
Detailed Description
DuraGo has a long history in aftermarket brake manufacturing, and the BR31052 reflects that focus on fit, form, and function. This front rotor is manufactured in ISO-certified factories and built to match the dimensional requirements needed for the listed Mazda 626, Mazda MX-6, Mazda Protege, Mazda Protege5, and Ford Probe applications. The vented cast iron design supports front brake service where heat management and stable rotor geometry matter.
This part cross-references Bosch 96318 and Dorman - HELP 31052 for the same application. If you are replacing a worn front rotor on a 1993-2002 Mazda 626 or a 1993-1997 Ford Probe, BR31052 provides the correct rotor dimensions and bolt pattern for those vehicles.
Common Problems This Rotor Can Address
- Brake pulsation caused by rotor wear or thickness variation
- Reduced braking performance from a worn front rotor surface
- Rotor replacement needs after scoring, rust, or heat damage
- Brake noise related to uneven rotor contact surfaces
- Service replacement for front brake maintenance on listed Mazda and Ford models
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and hub fitment before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect brake pads, calipers, and hardware condition at the same time. After installation, follow the vehicle manufacturer’s brake bedding procedure to help establish even pad transfer on the new rotor.
For fitment-specific searches, this rotor is a direct match for 2001-2003 Mazda Protege front, 2002-2003 Mazda Protege5 front, and 1993-1997 Mazda MX-6 front service.
Quality Assurance
DuraGo manufactures brake drums and rotors through ISO-certified factories and builds products to meet fit, form, and function requirements for the listed applications. The brand’s aftermarket brake program is focused on catalog accuracy and application-specific replacement parts.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2003 | Mazda | Protege | 2.0L | L4 | Front | — |
| 2003 | Mazda | Protege5 | — | — | Front | — |
| 2002 | Mazda | 626 | 2.0L | L4 | Front | — |
| 2002 | Mazda | Protege | 2.0L | L4 | Front | — |
| 2002 | Mazda | Protege5 | — | — | Front | — |
| 2001 | Mazda | 626 | 2.0L | L4 | Front | — |
| 2001 | Mazda | Protege | 2.0L | L4 | Front | — |
| 2000 | Mazda | 626 | 2.0L | L4 | Front | — |
| 1999 | Mazda | 626 | 2.0L | L4 | Front | — |
| 1998 | Mazda | 626 | 2.0L | L4 | Front | — |
| 1997 | Ford | Probe | — | — | Front | — |
| 1997 | Mazda | 626 | — | — | Front | — |
| 1997 | Mazda | MX-6 | — | — | Front | — |
| 1996 | Ford | Probe | — | — | Front | — |
| 1996 | Mazda | 626 | — | — | Front | — |
| 1996 | Mazda | MX-6 | — | — | Front | — |
| 1995 | Ford | Probe | — | — | Front | — |
| 1995 | Mazda | 626 | — | — | Front | — |
| 1995 | Mazda | MX-6 | — | — | Front | — |
| 1994 | Ford | Probe | — | — | Front | — |
| 1994 | Mazda | 626 | — | — | Front | — |
| 1994 | Mazda | MX-6 | — | — | Front | — |
| 1993 | Ford | Probe | — | — | Front | — |
| 1993 | Mazda | 626 | — | — | Front | — |
| 1993 | Mazda | MX-6 | — | — | Front | — |
| No rows match your filter. | ||||||
