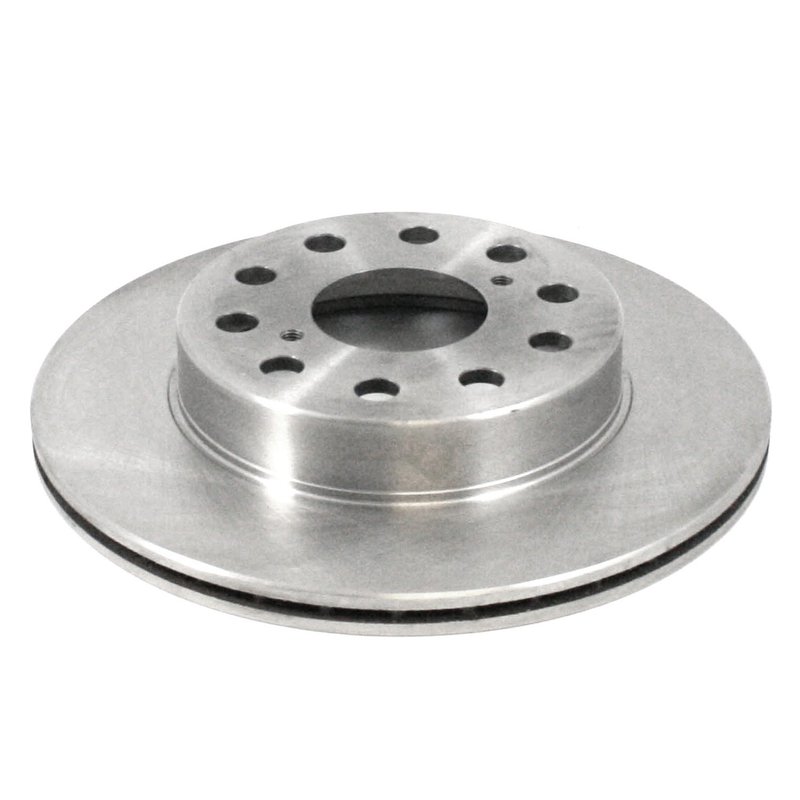

DuraGo BR31096 Disc Brake Rotor - Rear
| Brand | DuraGo BR31096 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.44 |
| Center Hole Diameter | 62 |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.59 |
| Discard Thickness | 15 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Diameter | 0.57 |
| Mounting Bolt Hole Diameter | 14.4 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.63 |
| Nominal Thickness | 16 |
| Outside Diameter | 10.35 |
| Outside Diameter | 263 |
| Overall Height | 1.82 |
| Overall Height | 46.2 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Vented |
| Fits | Toyota · 5 vehicles |
Cast iron construction. Full-cast design delivers dependable braking performance.
Vented rotor design. Helps air flow through the rotor for more consistent cooling.
Non-directional brake surface. Supports even wear and smooth, predictable contact.
Cross-references Gates 31096, Parts Authority PRT1683 and 96181 for the same application. See all 9.
DuraGo BR31096 Rear Brake Rotor for Toyota MR2
The DuraGo BR31096 is a vented rear disc brake rotor built from cast iron for 1991-1995 Toyota MR2 applications. It is a conventional, full-cast rotor with a non-directional brake surface, making it a straightforward OE-style replacement for rear brake service on the Toyota MR2.
Key Features
- Fits 1991-1995 Toyota MR2, rear
- Part number BR31096 for easy catalog matching
- Cast iron construction with full-cast design
- Vented rotor configuration for rear brake applications
- Non-directional brake surface for service flexibility
- 5-bolt mounting pattern with 114.3 mm bolt circle
- Conventional rotor design with 263 mm outside diameter
- Center hole diameter: 62 mm
- Nominal thickness: 16 mm; discard thickness: 15 mm
Detailed Description
DuraGo manufactures aftermarket brake components through ISO-certified factories with a focus on fit, form, and function. The BR31096 rear brake rotor is engineered for the Toyota MR2 and follows a conventional vented rotor layout, which supports consistent rear brake service on the 1991-1995 Toyota MR2 platform. With a cast iron, full-cast construction and non-directional surface, this rotor is built for straightforward installation and dependable brake maintenance. If you are sourcing a rear brake rotor for a 1991 Toyota MR2, 1992 Toyota MR2, 1993 Toyota MR2, 1994 Toyota MR2, or 1995 Toyota MR2, BR31096 is the cataloged replacement to verify against your vehicle’s brake specifications.
This part cross-references Gates 31096 for the same application.
Common Brake Issues This Rotor Can Address
- Rear brake pulsation caused by rotor wear or thickness variation
- Brake noise related to worn or uneven rotor surfaces
- Reduced braking consistency from a rotor at or near discard thickness
- Service replacement needs for a vented rear rotor on the Toyota MR2
- Brake pedal vibration linked to rotor condition
Installation Notes and Tips
Confirm rotor dimensions, bolt pattern, and center bore before installation on your Toyota MR2. Inspect rear pads, caliper hardware, and hub condition at the same time so the new rotor seats correctly and wears evenly. Clean the rotor and hub mating surfaces before assembly, and verify that the rotor thickness remains above discard specifications during service.
Quality Assurance
DuraGo brake rotors are produced in ISO-certified factories and manufactured to meet fit, form, and function requirements for aftermarket brake service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Toyota | MR2 | Rear | — |
| 1994 | Toyota | MR2 | Rear | — |
| 1993 | Toyota | MR2 | Rear | — |
| 1992 | Toyota | MR2 | Rear | — |
| 1991 | Toyota | MR2 | Rear | — |
