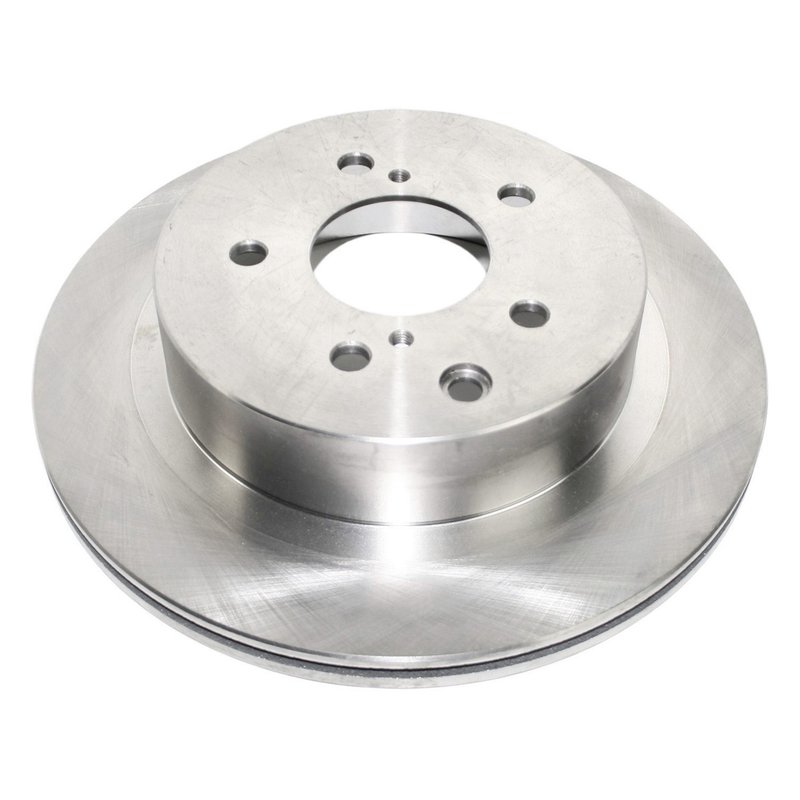

DuraGo BR31097 Disc Brake Rotor - Rear
| Brand | DuraGo BR31097 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 |
| Center Hole Diameter | 68.1 |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.63 |
| Discard Thickness | 16 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Diameter | 0.5 |
| Mounting Bolt Hole Diameter | 12.7 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.72 |
| Nominal Thickness | 18.3 |
| Outside Diameter | 11.67 |
| Outside Diameter | 296.5 |
| Overall Height | 2.48 |
| Overall Height | 63 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Vented |
| Fits | Nissan · 7 vehicles |
OE-style fit. Manufactured to meet fit, form, and function requirements.
Vented design. Helps promote airflow for more consistent braking performance.
Cast iron construction. Full-cast rotor built for dependable braking strength.
Cross-references Gates 31097, Parts Authority PRT1657 and Raybestos Brakes 96098 for the same application. See all 10.
DuraGo BR31097 Rear Brake Rotor for Nissan 300ZX
The DuraGo BR31097 is a vented rear disc brake rotor built for 1990-1996 Nissan 300ZX applications. Made from cast iron with a full cast construction, it delivers the dimensional accuracy and braking surface consistency needed for a direct rear rotor replacement.
Key Features
- Fits 1990-1996 Nissan 300ZX, rear
- Part number BR31097 for easy catalog matching
- Vented, drum-in-hat style rotor design
- Cast iron, full cast construction
- Non-directional brake surface for straightforward service
- 5-bolt mounting pattern with 114.3 mm bolt circle
- Outside diameter: 296.5 mm (11.67 in.)
- Nominal thickness: 18.3 mm (0.72 in.); discard thickness: 16 mm (0.63 in.)
- Center hole diameter: 68.1 mm (2.68 in.)
Detailed Description
DuraGo manufactures the BR31097 as a rear brake rotor for the Nissan 300ZX, using ISO-certified factory production to support fit, form, and function requirements. The vented design helps manage heat during braking, while the non-directional surface simplifies rotor service and replacement. This rotor cross-references Raybestos Brakes 96098 for the same application.
For shoppers searching for a rear brake rotor for 1990-1996 Nissan 300ZX, DuraGo BR31097 provides the key dimensions and mounting specs needed for a direct-match replacement. The drum-in-hat configuration and 5-lug pattern align with the rear brake setup on these vehicles.
Common Problems This Rotor Helps Address
- Brake pulsation from rotor thickness variation
- Reduced braking performance from worn rear rotors
- Noise caused by uneven rotor surfaces
- Heat buildup in rear braking during repeated stops
- Service issues from incorrect rotor dimensions
Installation Notes and Tips
Verify rear fitment by matching the 1990-1996 Nissan 300ZX application, 5-bolt pattern, center hole diameter, and overall rotor dimensions before installation. Inspect pads, caliper hardware, and hub condition during service so the new rotor seats evenly and the braking surface wears properly.
Quality Assurance
DuraGo states that its brake drum and rotor program is produced in ISO-certified factories and built to meet fit, form, and function requirements. The BR31097 is manufactured to support consistent aftermarket replacement quality for the Nissan 300ZX rear brake application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1996 | Nissan | 300ZX | Rear | — |
| 1995 | Nissan | 300ZX | Rear | — |
| 1994 | Nissan | 300ZX | Rear | — |
| 1993 | Nissan | 300ZX | Rear | — |
| 1992 | Nissan | 300ZX | Rear | — |
| 1991 | Nissan | 300ZX | Rear | — |
| 1990 | Nissan | 300ZX | Rear | — |
