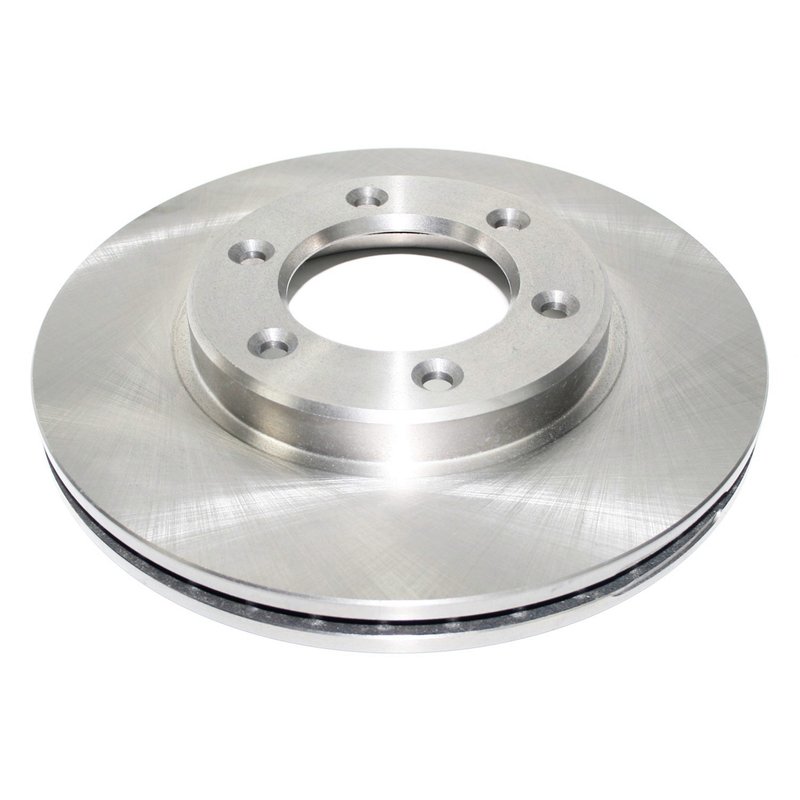

DuraGo BR31175 Disc Brake Rotor - Front

Overview of DuraGo BR31175 Disc Brake Rotor

The DuraGo BR31175 is a cast iron vented disc brake rotor designed specifically for Toyota T100 models. Engineered for reliable braking performance, this rotor offers consistent thickness and durability to maintain safe stopping power under various driving conditions.

• Material: Full cast iron construction for strength and heat dissipation
• Vented rotor design to improve cooling and reduce brake fade
• Nominal thickness of 0.97 inches (24.6 mm) with discard thickness at 0.91 inches (23 mm)
• Outside diameter of 11.02 inches (280 mm) suitable for Toyota T100 brake systems
• Six mounting bolt holes with a 4.69 inch (119 mm) bolt circle diameter
• Non-directional brake surface for flexible installation
• Conventional rotor type without ABS tone ring

Detailed Product Description

The DuraGo BR31175 disc brake rotor is constructed from full cast iron, providing a balance of durability and effective heat dissipation. Its vented design allows air to flow between the rotor surfaces, helping to reduce heat buildup during braking and minimizing the risk of brake fade. With a nominal thickness of 0.97 inches (24.6 mm) and a discard thickness of 0.91 inches (23 mm), this rotor maintains structural integrity throughout its service life. The 11.02 inch (280 mm) outside diameter and six mounting bolt holes with a 4.69 inch (119 mm) bolt circle diameter ensure precise fitment on Toyota T100 vehicles. The non-directional brake surface allows for straightforward installation without concern for rotor orientation.

Compatible Vehicles and Applications

• Compatible with Toyota T100 models requiring a 280 mm vented disc brake rotor
• Designed to replace worn or damaged rotors to restore braking performance
• Ideal for addressing issues such as brake noise, vibration, and reduced stopping power
• Suitable for routine brake system maintenance and rotor upgrades

Installation Notes and Tips

• Ensure the rotor thickness is above the discard thickness of 0.91 inches (23 mm) before installation
• Clean mounting surfaces to prevent rotor runout and uneven wear
• Torque mounting bolts to manufacturer specifications for secure fitment
• Check brake pads for wear and replace if necessary when installing new rotors
• Perform a test drive to verify proper brake function after installation

Quality Assurance and Warranty

DuraGo disc brake rotors are manufactured to meet industry standards for material quality and dimensional accuracy. While this product does not include a rust-resistant coating, the full cast iron construction provides reliable performance under normal operating conditions. Warranty coverage details should be confirmed with the original equipment provider or distributor.
